(6-026) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS, TIMBER KING MODELS

Запчасти Case 9050B (6-026) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS, TIMBER KING MODELS (06) - POWER TRAIN

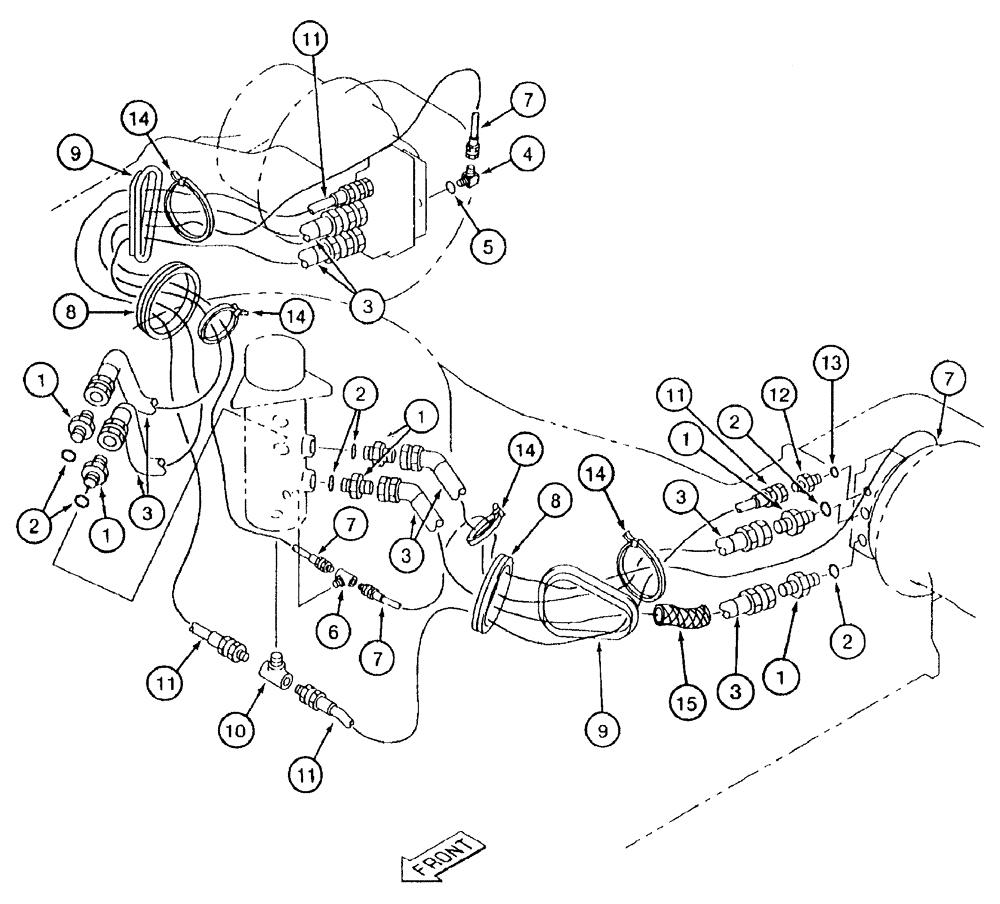

Схема запчастей Case 9050B - (6-026) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS, TIMBER KING MODELS (06) - POWER TRAIN
7
14
2
8
3
13
14
1
9
4
15
8
1
2
3
3
7
7
1
6
11
11
14
14
10
1
2
1
5
3
2
11
3
9
11
7
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight, at swivel, Includes: Ref. 2

8шт.

2

154523A1

O-RING

adapter

8шт.

3

158756A1

HYDRAULIC HOSE

2520 mm (99-1/4 inch) long

4шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 5

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

2шт.

6

162276A1

TEE

special

1шт.

7

152275A1

HOSE,63mm ID x 2900mm L

2шт.

8

159398A1

RUBBER BLOCK

GUARD - hose

2шт.

9

159658A1

REDUCER

GUARD - hose

2шт.

10

158757A1

TEE

special, in bottom of swivel

1шт.

11

158758A1

HOSE

2530 mm (99-5/8 inch) long

2шт.

12

158759A1

HYD CONNECTOR

ADAPTER - straight, Includes: Ref. 13

2шт.

13

154487A1

O-RING

adapter

2шт.

14

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

4шт.

15

159498A1

GUARD

hose

4шт.
