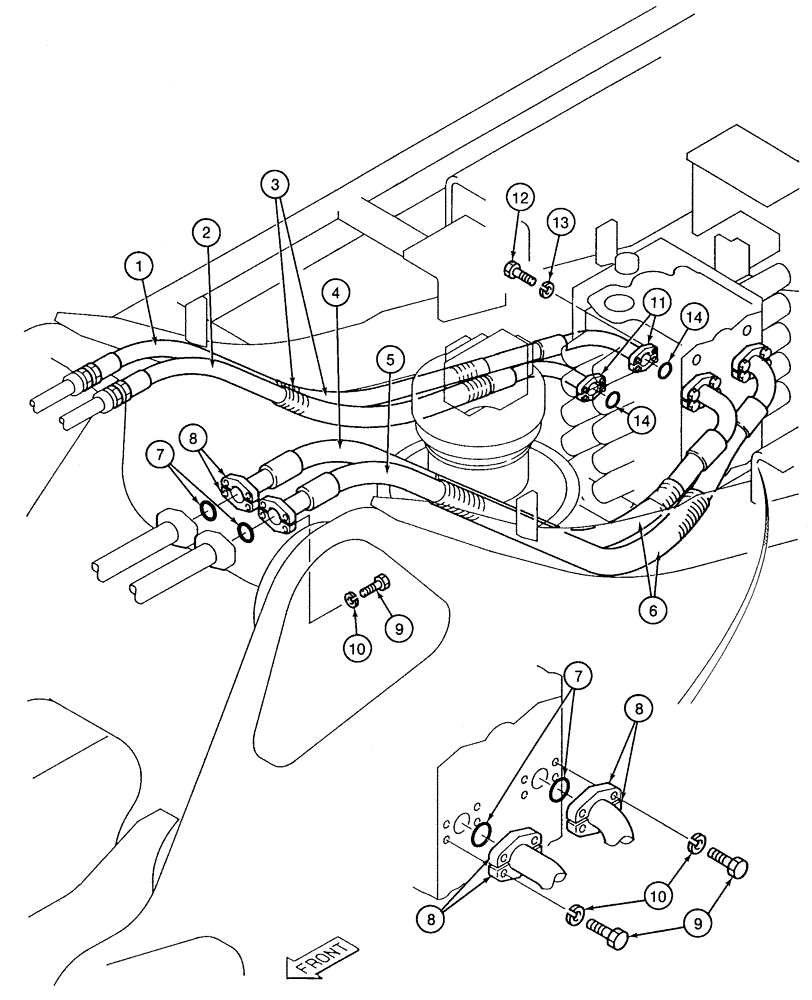

Запчасти Case 9060 (8-084) - ARM AND BUCKET HYDRAULIC CIRCUITS, CONTROL VALVE TO BASE OF BOOM (08) - HYDRAULICS

1

152892A1

HOSE ASSY.

HOSE - 70-7/8 inch (1800 mm) long, arm, right-hand side of control valve, rear port

1шт.

2

152893A1

HOSE ASSY.

HOSE - 65 inch (1650 mm) long, arm, right-hand side of control valve, front port

1шт.

3

151046A1

GUARD

- hose

2шт.

4

152886A1

HOSE ASSY.

HOSE - 66-1/8 inch (1680 mm) long, bucket, left-hand side of control valve, front port

1шт.

5

152885A1

HOSE ASSY.

HOSE - 74 inch (1880 mm) long, bucket, left-hand side of control valve, rear port

1шт.

6

151046A1

GUARD

- hose

2шт.

7

153626A1

O-RING

- bucket hose ends

4шт.

8

150124A1

FLANGE

- split, bucket hose mounting

8шт.

9

150245A1

SPECIAL BOLT,Hex, M14 x 50mm

BOLT - hex, special

16шт.

10

153623A1

SPRING WASHER

WASHER - lock, special

16шт.

11

153459A1

FLANGE

- split, arm hose to control valve

4шт.

12

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

13

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

8шт.

14

150678A1

O-RING

- arm hose at control valve

2шт.
