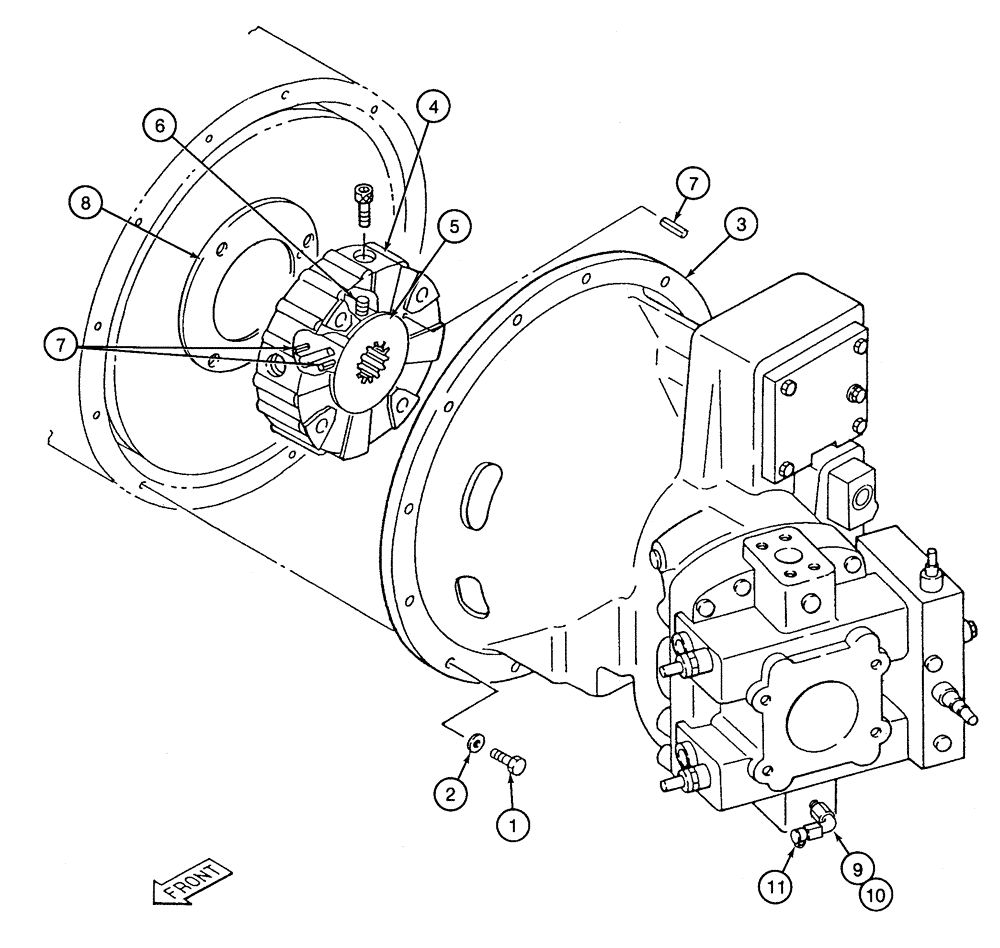

Запчасти Case 9060 (8-004) - HYDRAULIC PUMP AND COUPLING (08) - HYDRAULICS

1

153268A1

BOLT,Spcl, Hex, M10 x 40mm

BOLT - hex, special

12шт.

2

150811A1

WASHER

- flat, special, 12 mm

12шт.

3

152813A1

PUMP, HYDRAULIC

PUMP - hydraulic, parts list figures 8-014 - 8-022, no longer available, order 160661A1, Serial Range: -EAC0600970

1шт.

3

160661A1

PUMP

- hydraulic, parts list Figures 8-14 - 8-22, Start Serial: EAC0600970

1шт.

4

153028A1

COUPLING

- pump

1шт.

5

153029A1

HUB

- coupling

1шт.

6

877-52030

SET SCREW,Hex Skt, M20 x 30mm, Dog Pt

SCREW - set, hex socket, 20 - 2.5 x 30 mm, dog point

2шт.

7

738-1816

LOCK PIN,M8 x 16, Slotted

PIN - roll, 8 x 16 mm

12шт.

8

153335A1

FLANGE

PLATE - coupling

1шт.

9

170058A1

ELBOW

- 90 degree, hydraulic, Includes: Ref. 10

2шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

11

150290A1

PLUG

- oil

2шт.
