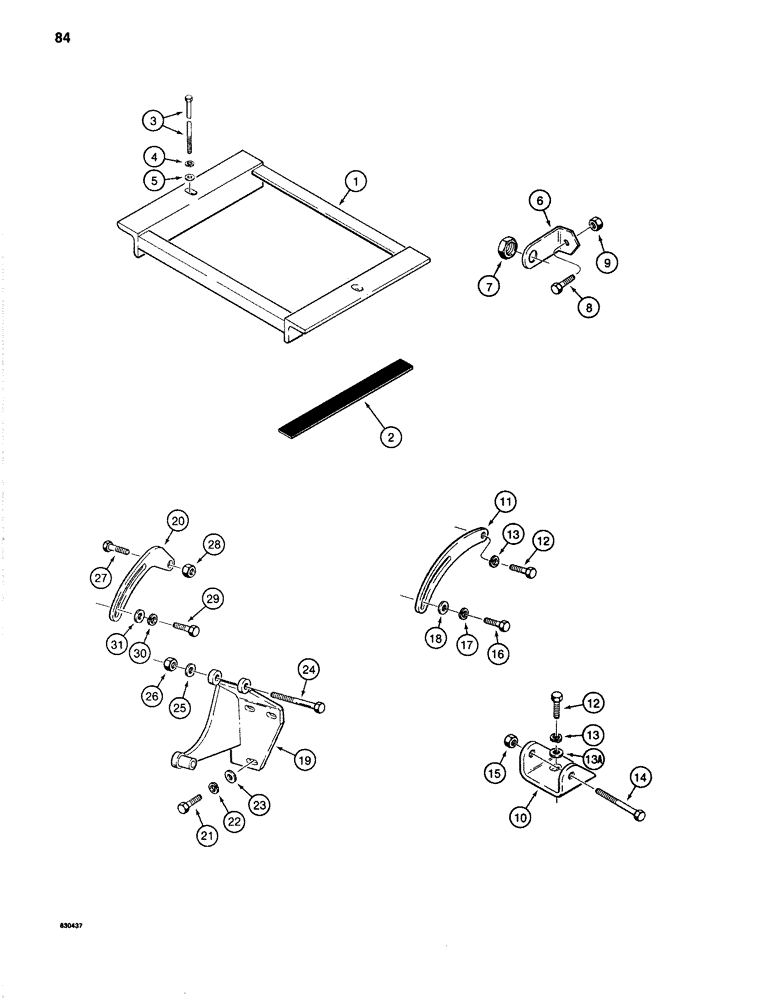

Запчасти Case 1280 (084) - BATTERY, ALTERNATOR, AND HORN BRACKETS (06) - ELECTRICAL SYSTEMS

1

S515479

BRACKET

RETAINER - battery

2шт.

2

S223590

STRIP - rubber, battery retainer

4шт.

3

113-2431

BOLT,Hex, 1/2" - 13 x 11", Gr 5

Battery retainer Hex, 1/2"-13 x 11", G5

4шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Battery retainer 1/2"

4шт.

5

S95569

WASHER

- flat, 1/2", battery retainer

4шт.

6

S203190

BRACKET

- horn mounting

1шт.

7

L30866

LOCK NUT

- horn mounting, special, bracket

1шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Horn bracket Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - lock, 5/16" - 18 NC, horn bracket

1шт.

10

A160391

BRACKET

- alternator mounting, case engine

1шт.

11

S200898

STRAP

- alternator adjusting, mounting, case engine

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 3/4", alternator mounting, case engine

3шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Alternator mounting, Case engine 3/8"

3шт.

13a

195-525

WASHER,3/8", SAE

- flat, 3/8", alternator mounting, case engine

2шт.

14

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 1/2" - 13 NC x 3", alternator mounting, case engine

1шт.

15

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 1/2" - 13 NC, alternator mounting, case engine

1шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Alternator mounting, Case engine Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Alternator mounting, Case engine 5/16"

1шт.

18

195-521

WASHER,5/16", SAE

- flat, 5/16", alternator mounting, case engine

1шт.

19

S211656

BRACKET

- alternator mounting, detroit diesel engine

1шт.

20

S200898

STRAP

- alternator adjusting, mounting, detroit diesel engine

1шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Alternator mounting, Detroit diesel engine Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Alternator mounting, Detroit diesel engine 3/8"

3шт.

23

195-103

WASHER,5/16"

- flat, 3/8", alternator mounting, detroit diesel engine

3шт.

24

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Alternator mounting, Detroit diesel engine Hex, 3/8"-16 x 3 1/2", G5

1шт.

25

195-104

WASHER,3/8"

- flat, 7/16", alternator mounting, detroit diesel engine

1шт.

26

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 1/2" - 13 NC, alternator mounting, detroit diesel engine

1шт.

27

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Alternator mounting, Detroit diesel engine Hex, 3/8"-16 x 2 1/4", G5

1шт.

28

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 1/2" - 13 NC, alternator mounting, detroit diesel engine

1шт.

29

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Alternator mounting, Detroit diesel engine Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Alternator mounting, Detroit diesel engine 5/16"

1шт.

31

195-521

WASHER,5/16", SAE

- flat, 5/16", alternator mounting, detroit diesel engine

1шт.
