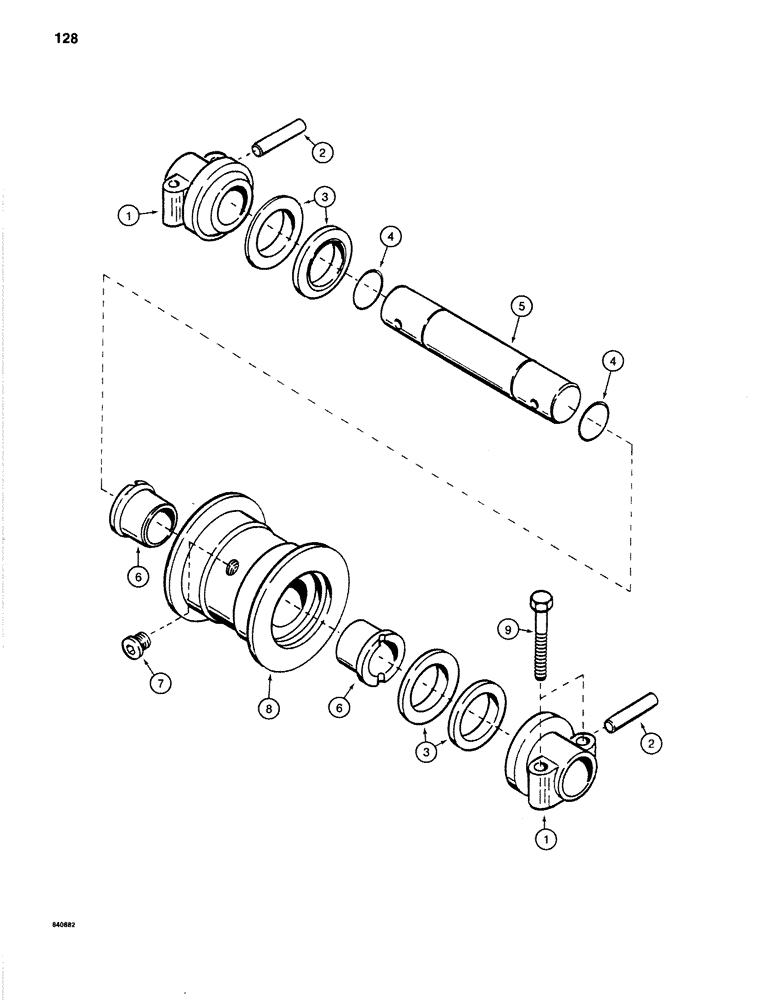

Запчасти Case 1280B (128) - TRACK ROLLER (11) - TRACKS/STEERING

S515417

ROLLER

TRACK ROLLER ASSEMBLY - single flange, Includes: Ref. 1 - 8

20шт.

1

N9745

BUSHING

BRACKET - end

2шт.

2

N9747

ROLL PIN

PIN - bracket

2шт.

3

N9748

SEAL

GROUP - track roller

2шт.

4

S113086

O-RING,635mm ID x 353mm Width

- shaft

2шт.

5

N9746

SHAFT

- track roller

1шт.

N9749

SHELL

ASSEMBLY - track roller, Includes: Ref. 6 - 8

1шт.

6

R33589

BUSHING

- track roller

2шт.

7

R33557

PLUG

- track roller

1шт.

8

NSS

NOT SOLD SEPARAT

SHELL - track roller

1шт.

9

REF

INSTRUCTION

BOLT - hex head, see Figure 120, reference number 6 for mounting to track frame

80шт.
