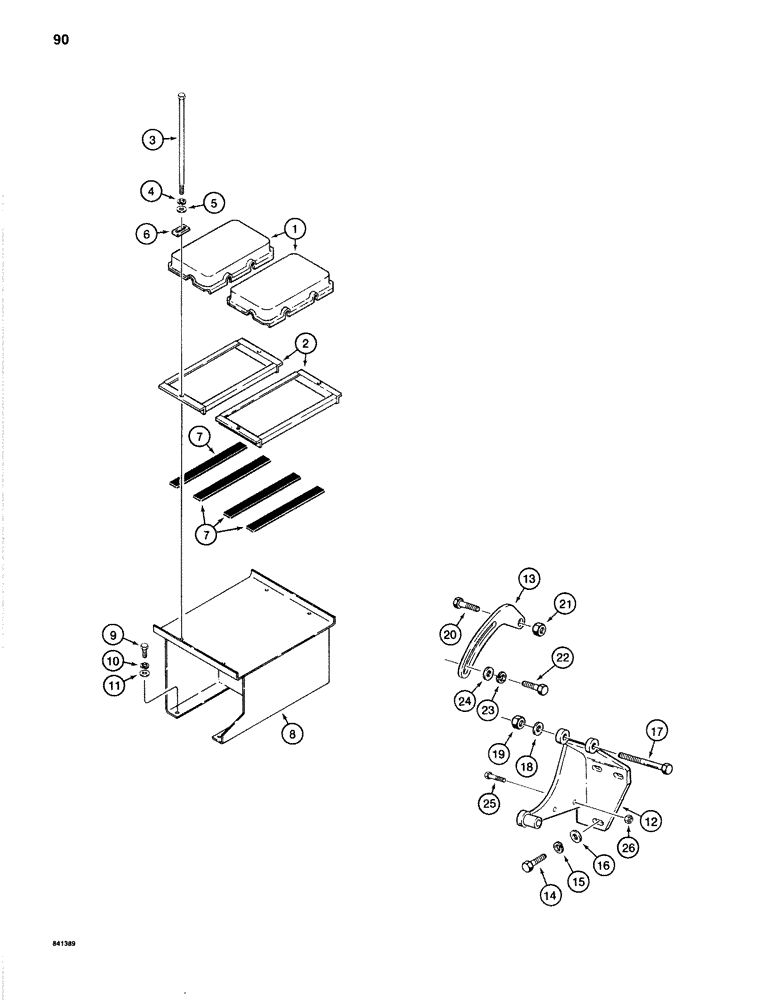

Запчасти Case 1280B (090) - BATTERY AND ALTERNATOR MOUNTING PARTS, USED WITH DETROIT (04) - ELECTRICAL SYSTEMS

1

S516810

COVER ASSY

COVER - battery, mounting parts

2шт.

2

S515479

BRACKET

RETAINER - battery, mounting parts

2шт.

3

113-2431

BOLT,Hex, 1/2" - 13 x 11", Gr 5

Cover and retainer to battery box, mounting parts Hex, 1/2"-13 x 11", G5

4шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Battery mounting parts 1/2"

4шт.

5

S95569

WASHER

- flat, 1/2", hardened, battery mounting parts

4шт.

6

S120085

STRIP

RETAINER - cover, battery mounting parts

4шт.

7

S223590

STRIP - rubber, battery box, mounting parts

4шт.

8

S618548

BRACKET

BOX - battery, mounting parts

1шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Battery mounting parts Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Battery mounting parts 1/2"

4шт.

11

S95569

WASHER

- flat, 1/2", hardened, battery mounting parts

4шт.

12

S211656

BRACKET

- alternator mounting, parts

1шт.

13

S200898

STRAP

- alternator adjusting, mounting parts

1шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Alternator mounting parts Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Alternator mounting parts 3/8"

3шт.

16

195-103

WASHER,5/16"

- flat, 3/8", alternator mounting parts

3шт.

17

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Alternator mounting parts Hex, 3/8"-16 x 3 1/2", G5

1шт.

18

195-104

WASHER,3/8"

- flat, 7/16", alternator mounting parts

1шт.

19

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 1/2" - 13 NC, alternator mounting parts

1шт.

20

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Alternator mounting parts Hex, 3/8"-16 x 2 1/4", G5

1шт.

21

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 1/2" - 13 NC, alternator mounting parts

1шт.

22

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Alternator mounting parts Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Alternator mounting parts 5/16"

1шт.

24

195-521

WASHER,5/16", SAE

- flat, 5/16", alternator mounting parts

1шт.

25

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Mounts starter solenoid to alternator bracket Hex, 1/4"-20 x 1", G5

2шт.

26

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, alternator mounting parts

2шт.
