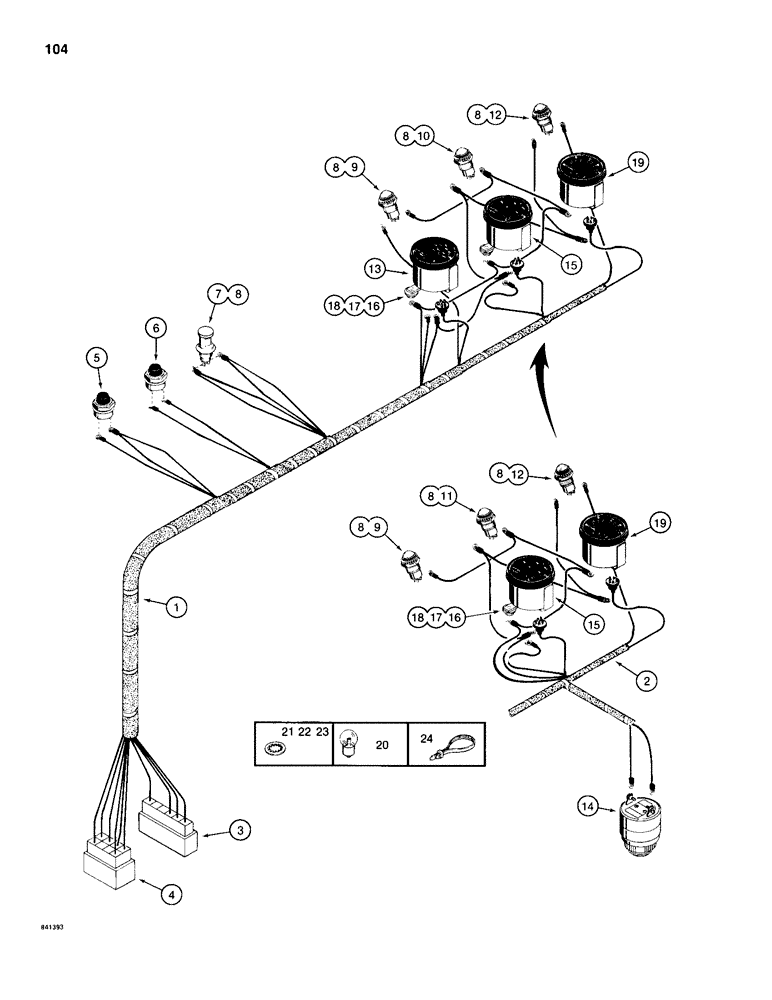

Запчасти Case 1280B (104) - ELECTRICAL HARNESS - RIGHT-HAND CONSOLE (04) - ELECTRICAL SYSTEMS

1

S615775

HARNESS

- right-hand console, used on units with engine oil pressure gauge

1шт.

2

S618807

HARNESS

- right hand console, used on units with low oil pressure lamp and buzzer, Includes: Ref. 3 and 4

1шт.

3

223-170

CONNECTOR, ELEC

CONNECTOR - female, 6 terminals

1шт.

4

223-172

CONNECTOR, ELEC

CONNECTOR - female, 8 terminals

1шт.

5

S241920

SWITCH

- cold start button, if used

1шт.

6

S241920

SWITCH

- horn

1шт.

7

S239151

LIGHT

LAMP - panel

1шт.

8

A25258

BULB

- panel lamp and warning lamps

4шт.

9

S239150

LIGHT

WARNING LAMP - hydraulic filter

1шт.

10

S239149

LIGHT

WARNING LAMP - key switch on, used on units with engine oil pressure gauge

1шт.

11

S242610

LIGHT

WARNING LAMP - key switch on and low oil pressure, used on units with low oil pressure buzzer

1шт.

12

S239148

LAMP

WARNING LAMP - drive brake on

1шт.

13

S239139

GAUGE

- oil pressure, if used

1шт.

14

S242611

ALARM

BUZZER - low oil pressure, if used

1шт.

15

S239138

GAUGE

- engine temperature

1шт.

16

S108406

RESISTOR

- oil pressure and engine temperature gauges

1-2шт.

17

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1-2шт.

18

129-37

NUT,#10-32

1-2шт.

19

S239336

VOLTMETER

- battery

1шт.

20

S116543

BULB

- gauges and voltmeter, No. 456

2-3шт.

21

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Switch and gauge terminals Int Tooth, #10

1шт.

22

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, , Switch and gauge terminals Int Tooth, #8

1шт.

23

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, , Switch and gauge terminals Int Tooth, #6

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
