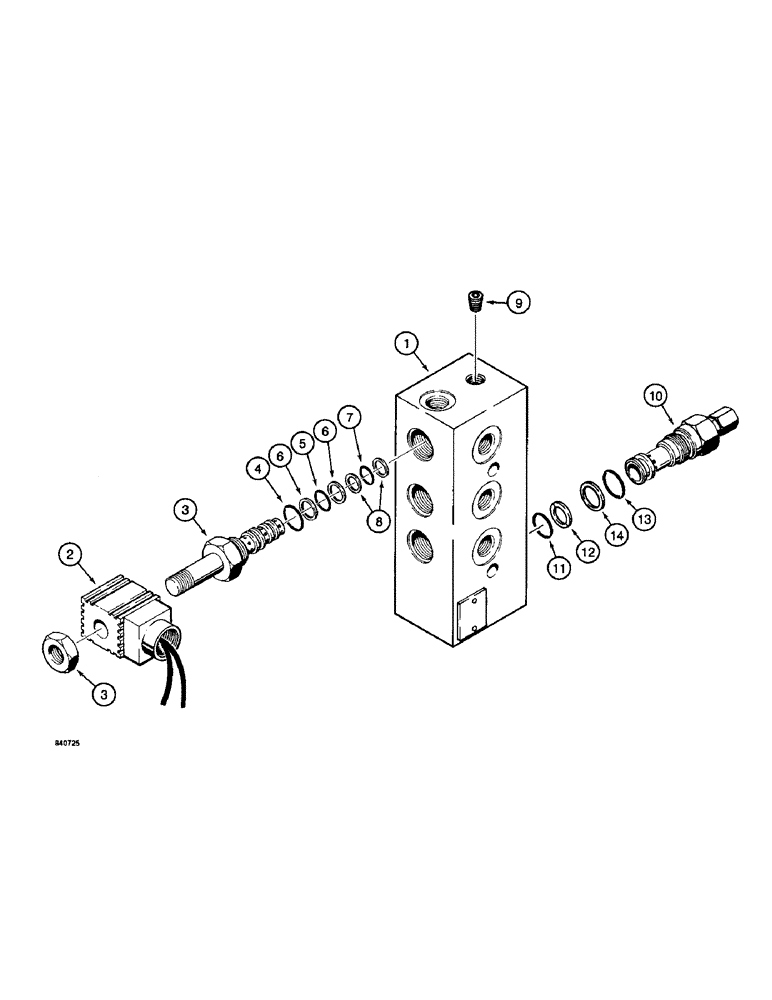

Запчасти Case 1187 (232) - SOLENOID CONTROL VALVE (07) - HYDRAULIC SYSTEM

S516559

VALVE

CONTROL VALVE ASSEMBLY - solenoid, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

N9053

COIL

- solenoid

3шт.

N8549

SOLENOID

ASSEMBLY - control valve, Includes: Ref. 3 - 8

3шт.

3

NSS

NOT SOLD SEPARAT

BODY - solenoid

1шт.

5

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- center

1шт.

6

N8553

O-RING

BACKUP RING - center o-ring

2шт.

7

A8613

O-RING,0.426" ID x 0.566" OD

- inner

1шт.

8

N8554

O-RING

BACKUP RING - inner o-ring

2шт.

9

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex socket head, 1/8" NPT

1шт.

N9052

CARTRIDGE

RELIEF VALVE ASSEMBLY - control valve, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

11

A65918

O-RING,0.551" ID x 0.691" OD

- relief valve, 9/16" ID

1шт.

12

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - used with 9/16" ID o-ring

1шт.

13

D77584

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

- relief valve, 11/16" ID

1шт.

14

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING - used with 11/16" ID o-ring

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
