(246) - CHECK VALVE, USED WITH ROTARY CUTTER

Запчасти Case 1187 (246) - CHECK VALVE, USED WITH ROTARY CUTTER (07) - HYDRAULIC SYSTEM

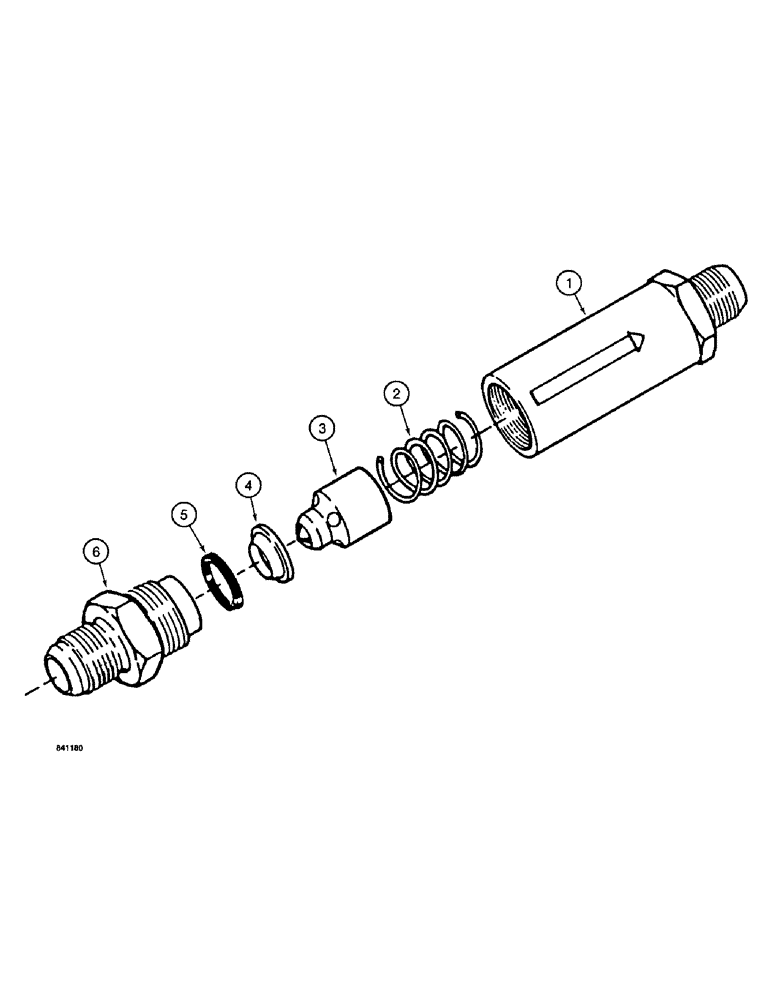

Схема запчастей Case 1187 - (246) - CHECK VALVE, USED WITH ROTARY CUTTER (07) - HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S211472

VALVE, CHECK

CHECK VALVE ASSEMBLY - rotary cutter, Includes: Ref. 1 - 6

1шт.

1

S83045

BODY

- check valve

1шт.

2

S83049

SPRING

- poppet

1шт.

3

S83048

VALVE POPPET

POPPET - check valve

1шт.

4

S83047

RETAINER

- o-ring

1шт.

5

S83050

O-RING

- cap seal

1шт.

6

S83046

CAP

- end, check valve

1шт.
