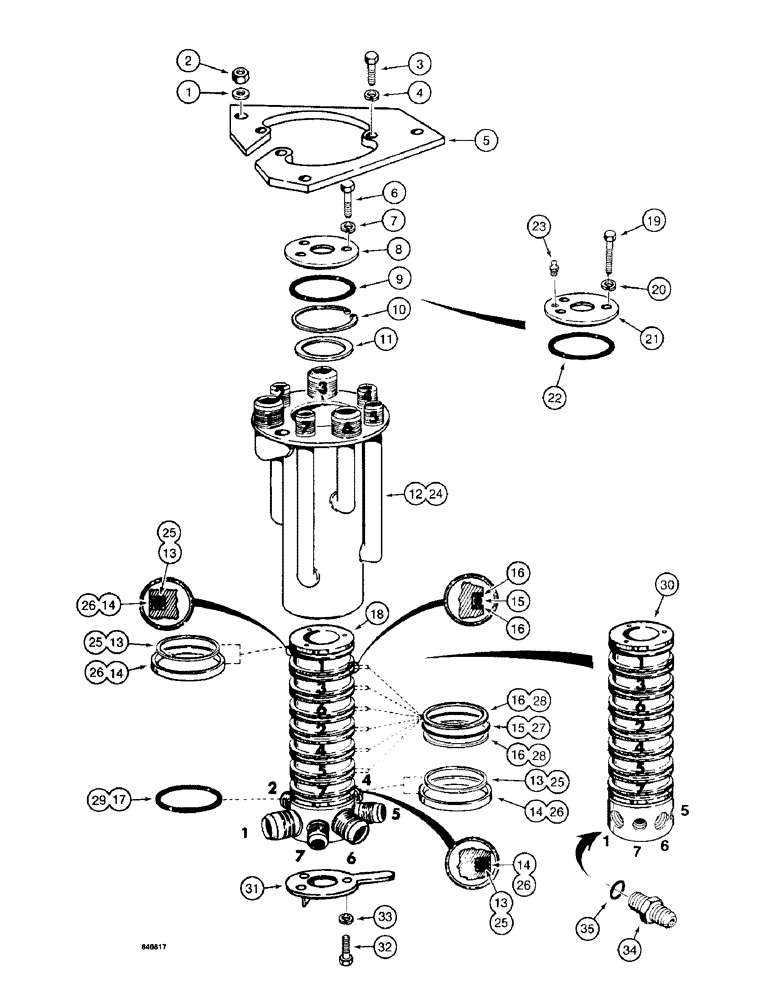

Запчасти Case 1187 (262) - SEVEN PORT SWIVEL AND RELATED PARTS (07) - HYDRAULIC SYSTEM

1

195-104

WASHER,3/8"

- flat, 7/16"

3шт.

2

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

3шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

S204101

PLATE

- mounting, seven port swivel

1шт.

S616988

LINK

SWIVEL - hydraulic, seven port, lower ports are male, Includes: Ref. 6 - 18

1шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8

S203821

CAP

- bearing

1шт.

9

S76241

O-RING

- bearing cap

1шт.

Part of Seal Kit, P/N S210212

1шт.

10

S15194

SNAP RING

- washer retaining

1шт.

11

S203832

WASHER

- bearing

1шт.

12

S57975

ASSEMBLY

HOUSING - swivel

1шт.

13

S118682

RING

SEAL - square section, replaces an o-ring in some early swivels

2шт.

Part of Seal Kit, P/N S210212

1шт.

14

S118683

SEAL

- slipper

2шт.

Part of Seal Kit, P/N S210212

1шт.

15

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- swivel shaft

6шт.

Part of Seal Kit, P/N S210212

1шт.

16

S76928

WASHER

BACKUP RING - shaft o-ring

12шт.

Part of Seal Kit, P/N S210212

1шт.

17

S76240

O-RING

- swivel shaft, bottom

1шт.

Part of Seal Kit, P/N S210212

1шт.

18

S618820

LINK

SHAFT - swivel, male ports 9 replaces S57974)

1шт.

S618678

LINK

SWIVEL - hydraulic, seven port, lower ports are female, Includes: Ref. 19 - 30

1шт.

19

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

20

S242702

CAP

WASHER - lock, 3/8" (replaces 192-21)

3шт.

21

S241730

CAP

- bearing

1шт.

22

S119791

SHIM

BEARING - cap

1шт.

Part of Seal Kit, P/N S119402

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

24

S618679

HOUSING

- swivel, not shown

1шт.

25

S118682

RING

SEAL - swivel shaft, square section

2шт.

Part of Seal Kit, P/N S119402

1шт.

26

S118683

SEAL

- slipper

2шт.

Part of Seal Kit, P/N S119402

1шт.

27

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- swivel shaft

6шт.

Part of Seal Kit, P/N S119402

1шт.

28

S76928

WASHER

BACKUP RING - shaft o-ring

12шт.

Part of Seal Kit, P/N S119402

1шт.

29

S76240

O-RING

- swivel shaft, bottom

1шт.

Part of Seal Kit, P/N S119402

1шт.

30

S618821

SHAFT

- swivel, female ports(replaces S617988)

1шт.

31

S237399

LARGE PLATE

PLATE - mounting, inner swivel

1шт.

32

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

34

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, port no. 1, if used, adapters used to replace Ref. 18 with Ref. 30, Incl. Ref. 35

1шт.

35

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 218-5069 adapter used to replace Ref. 18 with Ref. 30

1шт.

34

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, ports no. 2 and 7, if used, used to replace Ref. 18 with Ref. 30, Incl. Ref. 35

2шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 218-5064 adapter used to replace Ref. 18 with Ref. 30

1шт.

34

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, ports no. 3 and 6, if used, used to replace Ref. 18 with Ref. 30, Incl. Ref. 35

2шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 218-5050 adapter used to replace Ref. 18 with Ref. 30

1шт.

34

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, ports no. 4 and 5, if used, used to replace Ref. 18 with Ref. 30, Includes: Ref. 35

2шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 218-5065 adapter used to replace Ref. 18 with Ref. 30

1шт.

S210212

SEAL KIT

KIT - seal, for S616988 swivel, Includes: Ref. 9, 13, 14, 15, 16, and 17, adapters used to replace Ref. 18 with Ref. 30

1шт.

S119402

SEAL KIT

- seal, for S618678 swivel, Includes: Ref. 22, 26, 27, 28, and 29, adapters used to replace Ref. 18 with Ref. 30

1шт.
