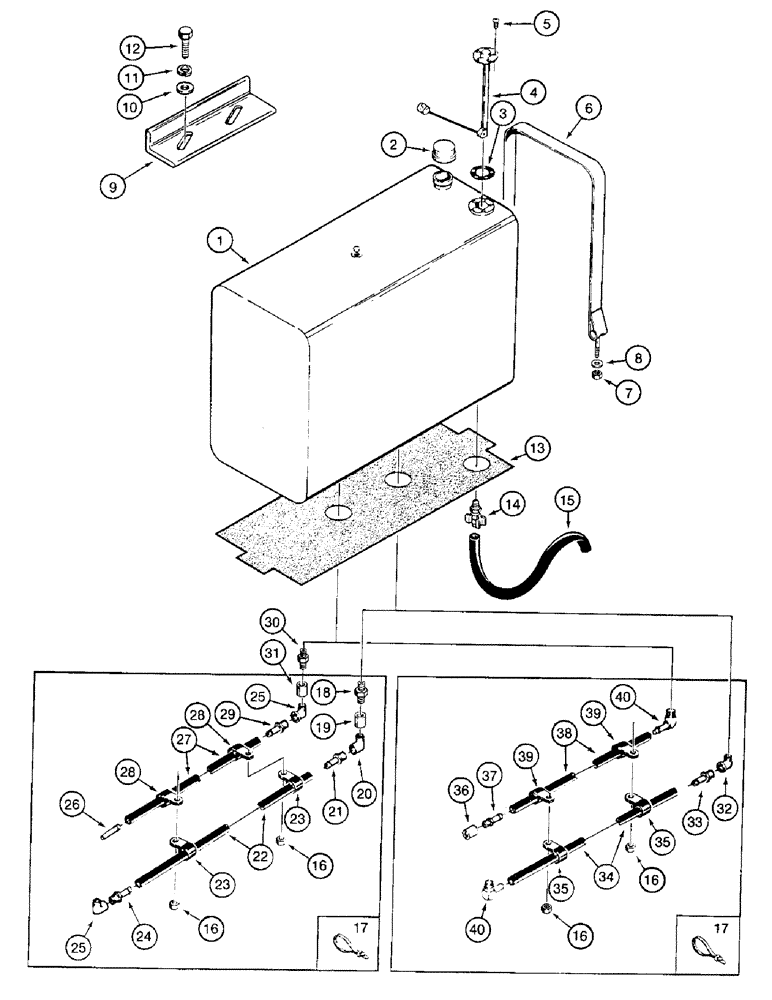

Запчасти Case 1187 (056) - FUEL TANK AND LINES (02) - FUEL SYSTEM

1

S618759

FUEL TANK

ASSEMBLY - diesel fuel (replaces S617401), Includes: Ref. 2

1шт.

Replaced by S618759

1шт.

2

A18870

FILLER CAP

CAP - fuel tank

1шт.

3

S49745

GASKET

GASKET - fuel gauge

1шт.

4

S241288

GAUGE

FUEL GAUGE ASSEMBLY - fuel level

1шт.

5

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

MACHINE SCREW - no. 10 - 32 NF x 3/4"

5шт.

6

S224324

STRAP - mounting, fuel tank

2шт.

7

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

8

195-104

WASHER,3/8"

- flat, 3/8"

4шт.

9

S238105

ANGLE

- mounting, fuel tank

1шт.

10

S95569

WASHER

- flat, special, 1/2"

2шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

13

S241314

PAD - fuel tank

1шт.

14

A23656

COCK, DRAIN

VALVE - fuel drain

1шт.

15

REF

INSTRUCTION

HOSE - drain valve, 18" (457 mm) long, cut from S120317, see below

1шт.

16

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 18 NC

3-4шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

217-1081

HYD CONNECTOR,3/8" - 18 NPTF

NIPPLE - hex pipe, 3/8" NPT, used with case engine

1шт.

19

221-337

COUPLING,Pipe, 3/8" NPT

- , used with case engine Pipe, 3/8" NPT

1шт.

20

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- 90 degree, at tank, used with case engine

1шт.

21

220-7

FITTING

BARB FITTING - straight, at tank, used with case engine

1шт.

22

REF

INSTRUCTION

HOSE - supply, 96" (2438 mm) long, cut from S118400, see below, used with case engine

1шт.

23

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose, 3/8", used with case engine

3шт.

24

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

BARB FITTING - straight, at engine, used with case

1шт.

25

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree, at engine and tank, used with case

2шт.

26

S66490

TUBE

- engine return, used with case

1шт.

27

S118378

HOSE,0.25" ID BULK, SAE 30R2 Type 3

0.25" ID x 168.00" Bulk, SAE 30R2 Type 3 - Return - Cut to 96" (2438 mm) long, Used with Case engine

1шт.

28

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

- hose, 1/4" ID, used with case engine

3шт.

29

220-2

FITTING

BARB FITTING - straight, at tank, used with case engine

1шт.

30

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE) , Used with Case engine 1/4"-18 NPTF

1шт.

31

221-336

COUPLING,Pipe, 1/4" NPT

used with case engine Pipe, 1/4" NPT

1шт.

32

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- 90 degree, engine supply hose, used with detroit diesel

1шт.

33

220-7

FITTING

BARB FITTING - straight, engine supply hose, used with detroit diesel

1шт.

34

REF

INSTRUCTION

HOSE - supply, 135" (3429 mm) long, cut from S118400, see below, used with detroit diesel engine

1шт.

35

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose, 3/8" ID, used with detroit diesel engine

4шт.

36

221-336

COUPLING,Pipe, 1/4" NPT

engine return line, used with detroit diesel Pipe, 1/4" NPT

1шт.

37

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

BARB FITTING - straight, at engine, used with detroit diesel

1шт.

38

REF

INSTRUCTION

HOSE - return, 108" (2743 mm) long, cut from S118400, see below, used with detroit diesel engine

1шт.

39

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose, 3/8" ID, used with detroit diesel engine

4шт.

40

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

BARB FITTING - 90 degree, at tank and engine, used with detroit diesel

2шт.

S118400

HOSE,0.38" ID x 300.00"

- Fuel, Used with Detroit diesel engine 0.38" ID x 300.00"

1шт.

S120317

HOSE,0.31" ID x 300.00", SAE 30R2 Type 1

- Fuel, Used with Detroit diesel engine 0.31" ID x 300.00", SAE 30R2 Type 1

1шт.
