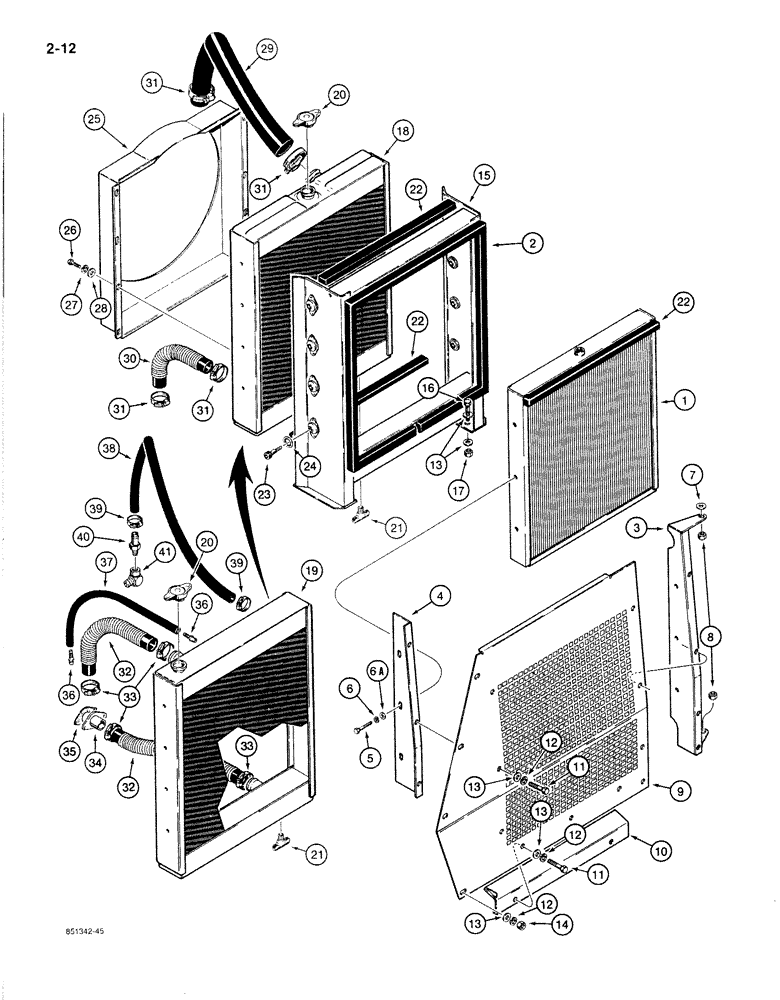

Запчасти Case 1187B (2-12) - RADIATOR, OIL COOLER AND HOSES (02) - ENGINE

1

S600253

COOLER, OIL

COOLER - oil, hydraulic oil

1шт.

2

S120545

SEAL

- air, oil, Serial Range: cooler-radiator

1шт.

3

S516228

BRACKET

- mounting, oil cooler, right-hand

1шт.

4

S516231

BRACKET

- mounting, oil cooler, left-hand

1шт.

5

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

192-20: WASHER. SEE NA #9-1993

1шт.

6a

195-103

WASHER,5/16"

- flat, 5/16"

6шт.

7

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, hardened, 1/2"

1шт.

8

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

9

S618168

SHROUD

PANEL - air intake, see Figures 9-358 - 9-364 for other turntable shrouds

1шт.

10

S241896

BRACKET

- lower shroud, air deflector

1шт.

11

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

10шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

13

S95569

WASHER

- flat, hardened, 1/2"

26шт.

S95569: WASHER. SEE NWLSL01290

1шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

15

S618856

BRACKET

- radiator mounting

1шт.

16

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

17

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

6шт.

131-70: NUT. SEE T/S #307-91

1шт.

18

S618781

RADIATOR

- engine cooling, used on models with Case engine, includes ref. 20, radiator cap

1шт.

19

S615082

RADIATOR

- engine cooling, used on models with Detroit Diesel engine, includes ref. 20, radiator cap

1шт.

20

D25826

CAP

- radiator, 7 psi

1шт.

21

A23656

COCK, DRAIN

VALVE - radiator drain

1шт.

22

S119361

SEAL

- 30" long, radiator, cut from S118475 bulk seal, see below

3шт.

23

S76819

STEP BOLT

BOLT - shoulder, special, Serial Range: radiator-bracket

8шт.

24

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

8шт.

25

S609718

SHROUD

- engine fan

1шт.

26

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

8шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

192-19: LOCK WASHER. SEE NUNSB01288; NSESB193

1шт.

28

195-518

WASHER,1/4", SAE

- flat, 1/4"

8шт.

29

S230570

HOSE,2.50" ID x 12.26", SAE 20R4 CLASS SC

RADIATOR HOSE, , Upper (Used w/Case Diesel Engines) 2.50" ID x 12.26", SAE 20R4 CLASS SC

1шт.

30

S85823

HOSE,63.5 mm ID x 609.60 mm, SAE 20R5

63.5 mm ID x 609.6 mm, SAE 20R5, Radiator, Lower; Special Parts Used on Models With CASE Engine

1шт.

31

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, special parts used on models with case engine

4шт.

S118475

SEAL

SEAL - bulk length, 120" (3048 mm) long, use for ref. 22, special parts used on models with case engine

1шт.

TO BETTER MAINTAIN COOLING SYSTEM PERFORMANCE, COOLANT FILTERS ARE AVAILABLE.FOR INCREASED COOLING SYSTEM EFFICIENCY AND ENGINE LIFE ON EXCAVATORS EQUIPPED WITH THE CASE 504 ENGINE.COOLANT FILTER KIT IS A46400 AND BRACKET KIT A46453.

1шт.

32

S85934

RADIATOR HOSE

Upper and Lower, Special parts used on models with Detroit Diesel engine

2шт.

33

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- radiator hose, special parts used on models with Detroit diesel engine #36, 1.81/2.75 Type F Worm

4шт.

34

S235727

TUBE

FLANGE - lower radiator hose, special parts used on models with detroit diesel engine

1шт.

35

S119630

GASKET

- tube and flange to engine, special parts used on models with detroit diesel engine

1шт.

36

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

- barb, straight, 1/4" NPT, special parts used on models with detroit diesel engine

2шт.

217-125: FITTING/CONNECTOR. SEE NCTSB00494

1шт.

37

S119750

HOSE,0.38" ID x 20.00", SAE 30R2 Type 3

- Radiator purge line, Cut from S118400 bulk hose, See below, Special parts used on models with Detroit diesel engine 0.38" ID x 20.00", SAE 30R2 Type 3

1шт.

38

S119588

HOSE - 1" (25 mm) ID x 36" (914 mm) long, radiator surge line, cut from S118438 bulk hose, see below, special parts used on models with detroit diesel engine

1шт.

39

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, special parts used on models with detroit diesel engine

2шт.

40

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

- barb, straight, 3/4" NPT, specail parts used on models with detroit diesel engine

2шт.

41

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

- street, 90 degree, 3/4" NPT, special parts used on models with detroit diesel engine

1шт.

S118400

HOSE,0.38" ID x 300.00"

- Bulk, Use for Ref. 37, Special parts used on models with Detroit diesel engine 0.38" ID x 300.00"

1шт.

S118438

HOSE,1.00" ID x 120.00", SAE 20R1

- Bulk, Use for Ref. 38, Special parts used on models with Detroit diesel engine 1.00" ID x 120.00", SAE 20R1

1шт.
