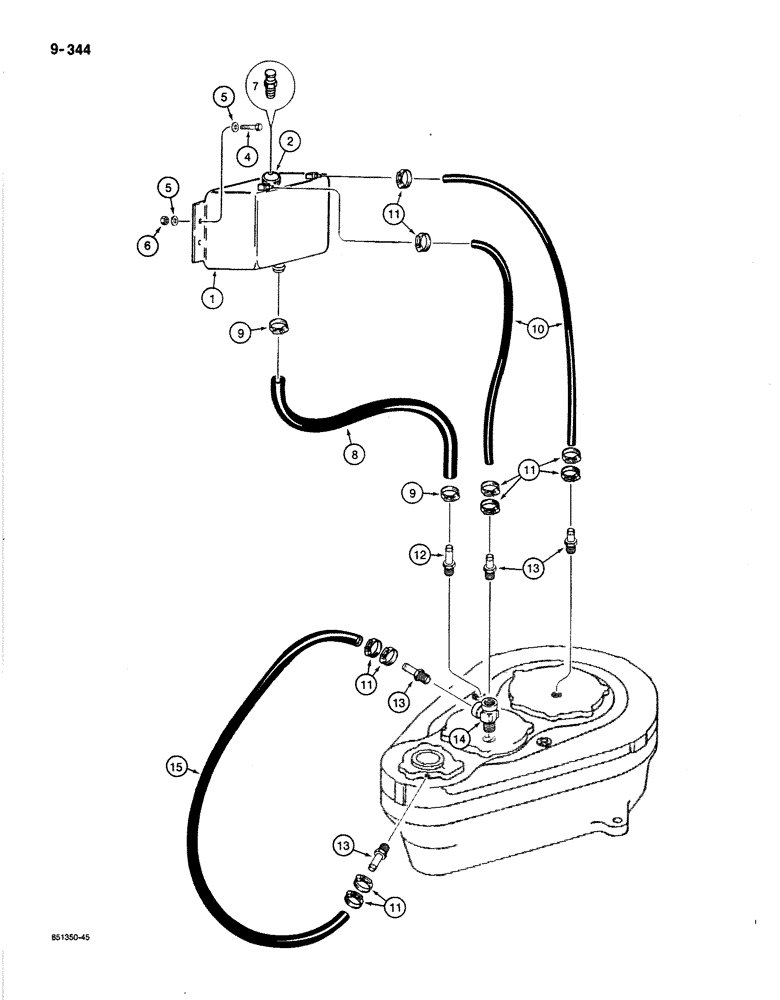

Запчасти Case 1187B (9-344) - SWING GEARBOX LUBRICATION SYSTEM (09) - CHASSIS

S516470

CONTAINER

RESERVOIR ASSEMBLY - lubricant, Includes: Refs. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - lubricant

1шт.

2

N8793

CAP

- reservoir

1шт.

4

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

5

195-103

WASHER,5/16"

- flat, , plated 5/16"

8шт.

6

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

7

L33264

BREATHER

- reservoir

1шт.

8

S120321

HOSE,0.63" ID x 23.00", SAE 30R2 Type 3 or SAE 100R6

- Gearbox cover, Cut from S118576 bulk hose, See below 0.63" ID x 23.00", SAE 30R2 Type 3 or SAE 100R6

1шт.

(Is 25" Long)

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, used with 5/8" ID hoses

2шт.

10

S120211

HOSE,0.25" ID x 28.00", SAE 30R6 or SAE 100R3

- to bearing covers, Cut from S120557 bulk hose, See below 0.25" ID x 28.00", SAE 30R6 or SAE 100R3

2шт.

(Is 32" Long)

1шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

used with 1/4" ID hoses #4, 0.25/0.62 Type F Worm

10шт.

12

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

- stem, gearbox cover, used with 5/8" ID hose

1шт.

13

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

- stem, bearing covers, used with 1/4" ID hose

4шт.

14

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- gearbox bearing cover, 1/8" NPT

1шт.

15

S120210

HOSE,0.25" ID x 24.00", SAE 30R6 or SAE 100R3

- Crossover, Tee to bearing cover, Cut from S120557 bulk hose, See below 0.25" ID x 24.00", SAE 30R6 or SAE 100R3

1шт.

(Is 32" Long)

1шт.

S118576

HOSE,0.62" ID BULK

0.625" ID x 300.00" Bulk , Use to make Ref. 8

1шт.

S120557

HOSE,0.25" ID x 300.00", SAE 30R6

Bulk, Used for Ref. 10, 15 0.25" ID x 300.00", SAE 30R6

1шт.
