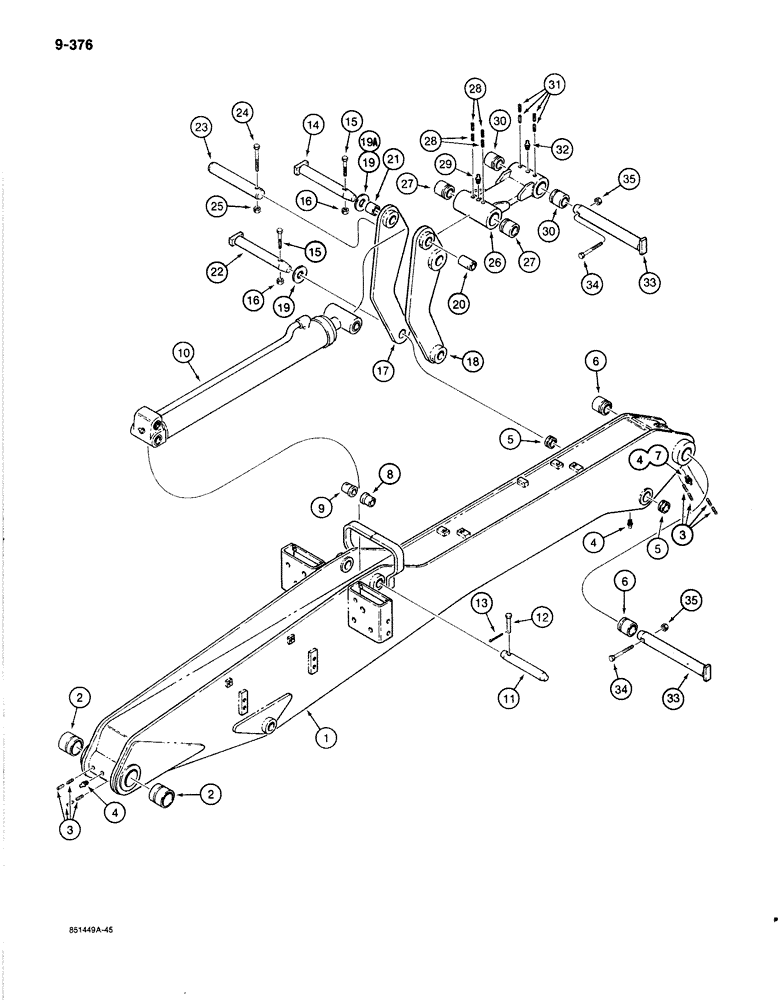

Запчасти Case 1187B (9-376) - ARM, LINKS AND MOUNTING PINS (09) - CHASSIS

1

S956840

BOOM

ARM ASSEMBLY - logger, used with feller buncher and rotary cutter attachments, Includes: Refs. 2-6

1шт.

2

S88549

BUSHING

- at boom

2шт.

3

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" - 16 NC x 3/8", cone point

8шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

3шт.

5

S202134

BUSHING

- at attachment bracket

2шт.

6

S87929

BUSHING

-, Serial Range: arm-attachment

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

8

S89355

BUSHING

- arm to tool cylinder, right-hand side, used with feller buncher only

1шт.

9

S120090

BUSHING

- arm to tool cylinder, left-hand side, used with feller buncher only

1шт.

10

G107679

CYLINDER

ASSEMBLY - hydraulic, tool, used with feller buncher, parts list Figure 8-318

1шт.

10

S956911

CYLINDER

ASSEMBLY - hydraulic, tool, used with rotary cutter, parts list Figure 8-316

1шт.

11

S242503

PIN

- G107679 tool cylinder to arm, feller buncher only

1шт.

11

S242502

PIN

- S956911 tool cylinder to arm, rotary cutter only

1шт.

12

S61972

PIN

- clevis, tool cylinder, Serial Range: pin-arm

1шт.

13

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

14

S201018

PIN

- 1-1/2" diameter, G107679 tool cylinder to attachment bracket, feller buncher only

1шт.

Replaced by S243625 (High Strength)

1шт.

14

S204746

PIN

- 2" diameter, S956911 tool cylinder to attachment bracket, rotary cutter only

1шт.

15

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

16

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

17

S504998

BRACKET

- attachment, tool cylinder and link to arm, left-hand

1шт.

18

S504999

BRACKET

- attachment, tool cylinder and link to arm, right-hand

1шт.

19

95-32

WASHER,2 1/8" x 4 1/2" x .179"

- flat, 2", used with S204746 pin

1шт.

19a

95-24

WASHER,1 1/2" x 3 1/2" x .18"

- flat, 1-1/2", used with S201018 pin

1шт.

20

S89357

SPACER

BUSHING - attachment bracket to tool cylinder, used with feller buncher only, 3-1/4" (83 mm) long

1шт.

21

S89356

BUSHING

- attachment bracket to tool cylinder, used with feller buncher only, 2-1/4" (57.2 mm) long

1шт.

22

S204746

PIN

- attachment, Serial Range: bracket-arm

1шт.

23

S89283

PIN

- attachment, Serial Range: bracket-link

1шт.

24

26-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex head, 5/8" - 11 NC x 6", grade 8

1шт.

25

131-460

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8" - 11 NC

1шт.

26

S217548

LINK

ASSEMBLY - bracket to attachment, Includes: Refs. 27-29

1шт.

27

S87929

BUSHING

- link, at attachment

2шт.

28

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" - 16 NC x 3/8", cone point

4шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

30

S87929

BUSHING

- link, at attachment bracket

2шт.

31

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" - 16 NC x 3/8", cone point

4шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

33

S220251

PIN ASSY.

PIN - boom and, Serial Range: link-attachment

2шт.

34

26-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex head, 5/8" - 11 NC x 6", grade 8

2шт.

35

131-460

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8" - 11 NC

2шт.
