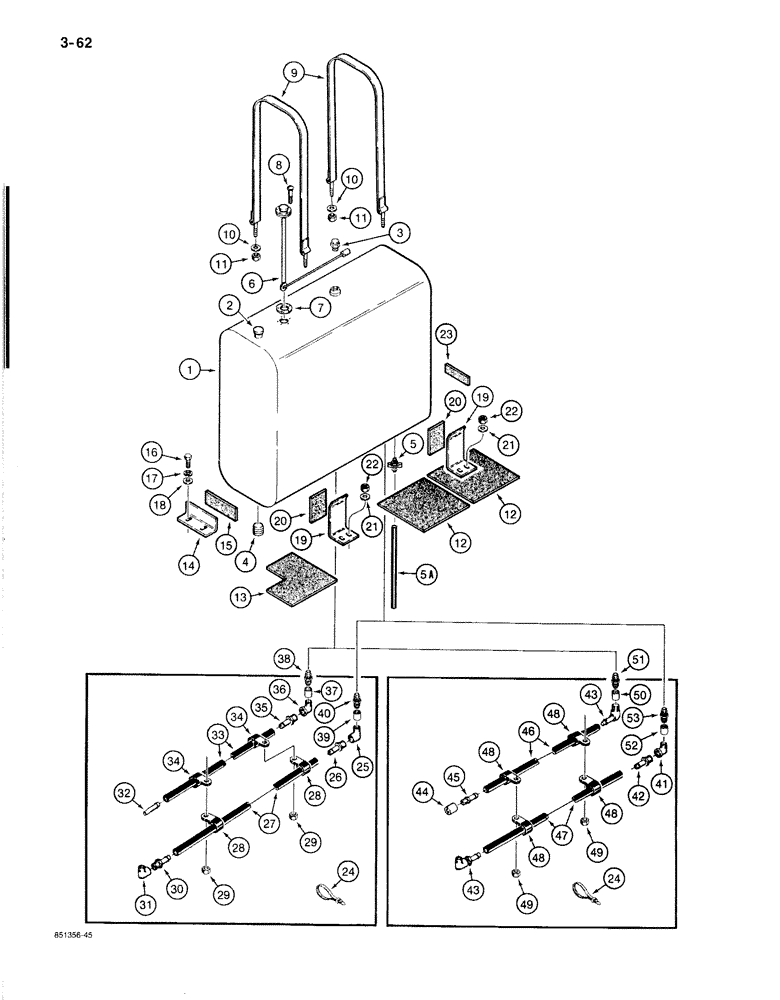

Запчасти Case 1187B (3-62) - FUEL TANK AND LINES (03) - FUEL SYSTEM

S618759

FUEL TANK

TANK ASSEMBLY - fuel, 122 gallon capacity, Includes: Refs. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - fuel

1шт.

2

S66921

FILLER CAP

CAP - fuel tank

1шт.

3

S120420

PLUG

- vented, with filter

1шт.

4

221-848

PLUG,Hex Soc, 1 1/2"-11 1/2

- pipe, hex socket head, 1-1/2" NPT

1шт.

5

A23656

COCK, DRAIN

VALVE - fuel tank drain

1шт.

5a

S119631

HOSE,0.31" ID x 18.00", SAE 30R2 Type 1

Drain Valve, Cut from Bulk Hose, See below 0.31" ID x 18.00", SAE 30R2 Type 1

1шт.

6

S241288

GAUGE

- fuel level

1шт.

7

S49745

GASKET

GASKET - fuel level gauge

1шт.

8

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

- machine, No. 10 - 32 NC x 3/4"

5шт.

9

S516877

STRAP

- mounting, fuel, Serial Range: tank-turntable

2шт.

10

S95569

WASHER

- flat, hardened, 1/2"

4шт.

S95569: WASHER. SEE NWLSL01290

1шт.

11

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

131-70: NUT. SEE T/S #307-91

1шт.

12

S242597

PAD

- tank bottom, square

2шт.

13

S242596

PAD

- tank bottom, with corner notch

1шт.

14

S242600

ANGLE

BRACKET - tank retainer, end

1шт.

15

S240178

TUBE,1.25" OD

PAD - end retainer bracket

1шт.

S240178: PAD (END RETAINER BRACKET). SHOULD BE PART NO. S120178. S240178 IS A TUBE ASSEMBLY (REF. 15)

1шт.

16

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

18

S95569

WASHER

- flat, hardened, 1/2"

2шт.

S95569: WASHER. SEE NWLSL01290

1шт.

19

S242601

BRACKET

- tank retainer, side

2шт.

20

S120175

PAD

- side retainer bracket and brackets on turntable

4шт.

21

S95569

WASHER

- flat, hardened, 1/2"

4шт.

22

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

131-70: NUT. SEE T/S #307-91

1шт.

23

S120176

PAD

- end

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

L18337: STRAP (N. TIE 15+ INCH). SEE NA #6-1995; NCRSB00895; NHESB03695, NHESB11289; NLBSB00390; NTRMP04889; NUNSB00590; NWLSL01290; TC23-86; T/S #297-93C

1шт.

S120317

HOSE,0.31" ID x 300.00", SAE 30R2 Type 1

- Bulk length, Use for Ref. 5A 0.31" ID x 300.00", SAE 30R2 Type 1

1шт.

25

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- 90 degree, at tank, fuel lines used on models with case engine

1шт.

26

220-7

FITTING

- barb, straight, at tank, fuel lines used on models with case engine

1шт.

27

S119415

HOSE - 3/8" (9 mm) ID x 96" (2438 mm) long, engine supply, cut from S118400, see below, fuel lines used on models with case engine

1шт.

28

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose, fuel lines used on models with case engine

3шт.

29

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, fuel lines used on models with case engine

3шт.

30

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

- barb, straight, at engine, fuel lines used on models with case

1шт.

31

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree, at engine, fuel lines used on models with case

1шт.

32

S66490

TUBE

- engine return, fuel lines used on models with case

1шт.

33

S120384

HOSE - 1/4" (6 mm) ID x 96" (2438 mm) long, engine return, cut from S118378, see below, fuel lines used on models with case

1шт.

34

S77322

CLAMP

- hose, fuel lines used on models with case engine

3шт.

S77322: CLAMP. SEE AG-25.1-86

1шт.

35

220-2

FITTING

- barb, straight, at tank, fuel lines used on models with case engine

1шт.

36

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree, at tank, fuel lines used on models with case engine

1шт.

217-21: ELBOW. SEE NCTSB04194

1шт.

37

221-336

COUPLING,Pipe, 1/4" NPT

fuel lines used on models with case engine Pipe, 1/4" NPT

1шт.

38

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, , Straight, Fuel lines used on models with Case engine 1/4"-18 NPTF

1шт.

39

221-337

COUPLING,Pipe, 3/8" NPT

- 3/8" NPT, fuel lines used on models with case engine

1шт.

40

217-1081

HYD CONNECTOR,3/8" - 18 NPTF

CONNECTOR - straight, fuel lines used on models with case engine

1шт.

41

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- 90 degree, engine supply hose, fuel lines used on models with detroit diesel

1шт.

42

220-7

FITTING

- barb, straight, engine supply hose, fuel lines used on model with detroit diesel

1шт.

43

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

FITTING - barb, 90 degree, fuel lines used on models with detroit diesel engine

2шт.

44

221-336

COUPLING,Pipe, 1/4" NPT

engine return line, fuel used on models with detroit diesel engine Pipe, 1/4" NPT

1шт.

45

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

- barb, straight, at engine, fuel lines used on models with detroit diesel

1шт.

217-125: FITTING. SEE NCTSB00494

1шт.

46

REF

INSTRUCTION

HOSE - 3/8" (9 mm) ID x 108" (2743 mm) long, engine return, cut from S118400, see below, fuel lines used on models with detroit diesel

1шт.

47

REF

INSTRUCTION

HOSE - 3/8" (9mm) ID x 135" (3429 mm) long, engine supply, cut from S118400, see below, fuel lines used on models with detroit diesel

1шт.

48

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose, fuel lines used on models with detroit diesel engine

8шт.

49

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, fuel lines used on models with detroit diesel engine

4шт.

50

221-336

COUPLING,Pipe, 1/4" NPT

fuel lines used on models with detroit diesel engine Pipe, 1/4" NPT

1шт.

51

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, , Straight, Fuel lines used on models with Detroit diesel engine 1/4"-18 NPTF

1шт.

52

221-337

COUPLING,Pipe, 3/8" NPT

- 3/8" NPT, fuel lines used on models with detroit diesel engine

1шт.

53

217-1081

HYD CONNECTOR,3/8" - 18 NPTF

CONNECTOR - straight, fuel lines used on models with detroit diesel engine

1шт.

S118378

HOSE,0.25" ID BULK, SAE 30R2 Type 3

0.25" ID x 168.00" Bulk, SAE 30R2 Type 3 - Use for Ref. 33, Fuel lines used on models with Detroit diesel engine

1шт.

S118400

HOSE,0.38" ID x 300.00"

- Bulk, Use for Refs. 27, 46, and 47, Fuel lines used on models with Detroit diesel engine 0.38" ID x 300.00"

1шт.
