Запчасти Case 1187B (4-120) - HEATER AND HOSES (04) - ELECTRICAL SYSTEMS

1

S242826

HEATER

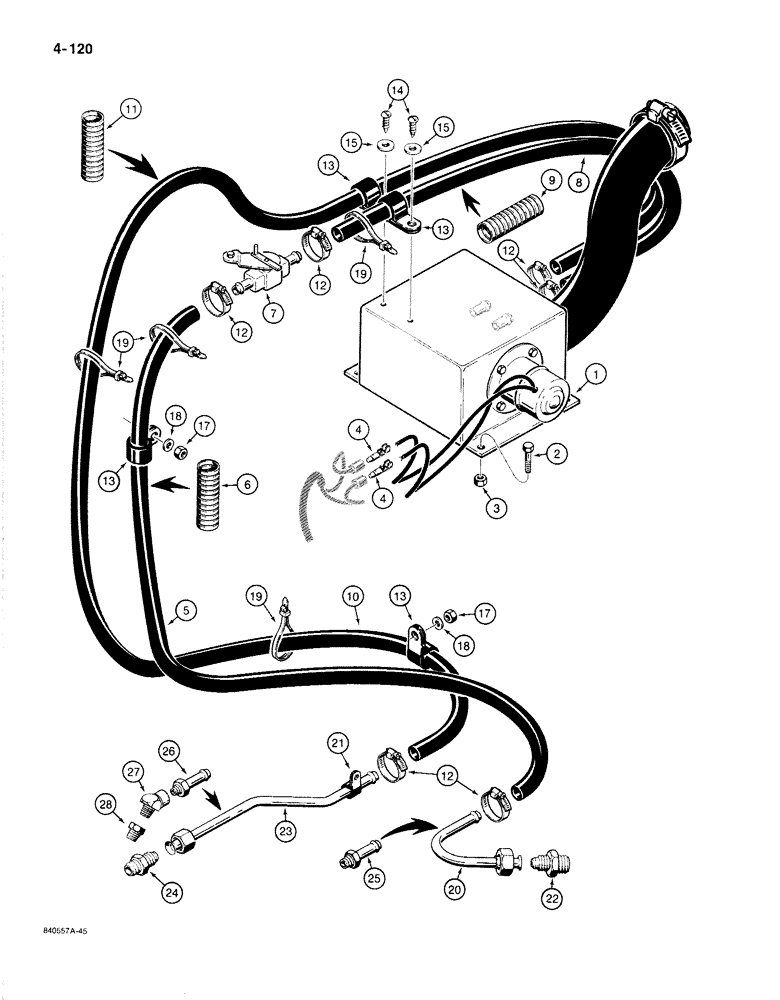

ASSEMBLY - cab, parts list Figure 4-123

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

4

223-191

TERMINAL CONNECTOR,14 - 16

CONNECTOR - electrical, female

2шт.

5

REF

INSTRUCTION

HOSE - 5/8" (16 mm) ID x 110" (2794 mm) long, used with Case engine, 125" (3175 mm) long, used with Detroit Diesel engine, engine to shutoff valve, cut from A42610 bulk hose, see below

1шт.

6

REF

INSTRUCTION

SLEEVE - 1" (25 mm) ID x 107" (2718 mm) long hose, used with Case engine, 122" (3099 mm) long used with Detroit Diesel engine, hose, cut from S119717 bulk sleeve, see below

1шт.

7

S223937

VALVE

- heater shutoff

1шт.

(Hand operated, no cables)

1шт.

8

S119264

HEATER HOSE,15.88mm ID x 610mm L, SAE 20R3

Shutoff Valve to Heater 15.88 mm ID x 610.0 mm, SAE 20R3

1шт.

9

S119267

CONDUIT

SLEEVE - 1" (25 mm) ID x 22" (560 mm) long, hose, cut from S119717 bulk sleeve, see below

1шт.

10

REF

INSTRUCTION

HOSE - 5/8" (16 mm) ID x 150" (3810 mm) long, used with Case engine, 157" (3988 mm) long, used with Detroit Diesel engine, heater outlet to engine, cut from A42610 bulk hose, see below

1шт.

11

REF

INSTRUCTION

SLEEVE - 1" (25 mm) ID x 147" (3734 mm) long, used with Case engine, 154" (3912 mm) with Detroit Diesel engine, hose, cut from S119717 bulk sleeve, see below

1шт.

12

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

6шт.

13

S15544

CLAMP,1 5/16", Insul, 3/8" Bolt

- hoses at top of heater

4шт.

14

187-331

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/4"

SCREW - self-tapping, No. 10 x 3/4"

2шт.

15

195-513

WASHER,#10

- flat, No. 10

2шт.

17

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

18

195-525

WASHER,3/8", SAE

- flat, 3/8", if used

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

20

S232219

TUBE,0.62" OD x 3.06, 4.68" L

- engine outlet, Case engine only

1шт.

21

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- S231777 tube to throttle cable bracket, special parts used with case engine

1шт.

22

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - straight, special parts used with case engine

1шт.

23

S231777

TUBE,0.62" OD x 3.85, 34.05" L

- return to engine, special parts used with case engine

1шт.

24

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, special parts used with case engine

1шт.

25

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

- stem, straight, engine outlet, special parts used with detroit diesel engine

1шт.

26

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

- stem, straight, return to engine, special parts used with detroit diesel engine

1шт.

27

217-1086

45 ELBOW,45 Degree, 1/2"-14 Female x 1/2"-14 Male

- street, 45 degree, 1/2" NPT, special parts used with detroit diesel engine

1шт.

28

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

- return to engine, special parts used with detroit diesel engine

1шт.

A42610

LARGE HOSE

HOSE - bulk roll, 5/8" (16 mm) ID x 50' (1524 cm) long, use for refs. 5, 8, and 10, special parts used with detroit diesel engine

1шт.

S119717

CONDUIT

SLEEVE - bulk roll, 1" (25 mm) ID x 192" (4878 mm) long, use for refs. 6, 9, and 11, special parts used with detroit diesel engine

1шт.
