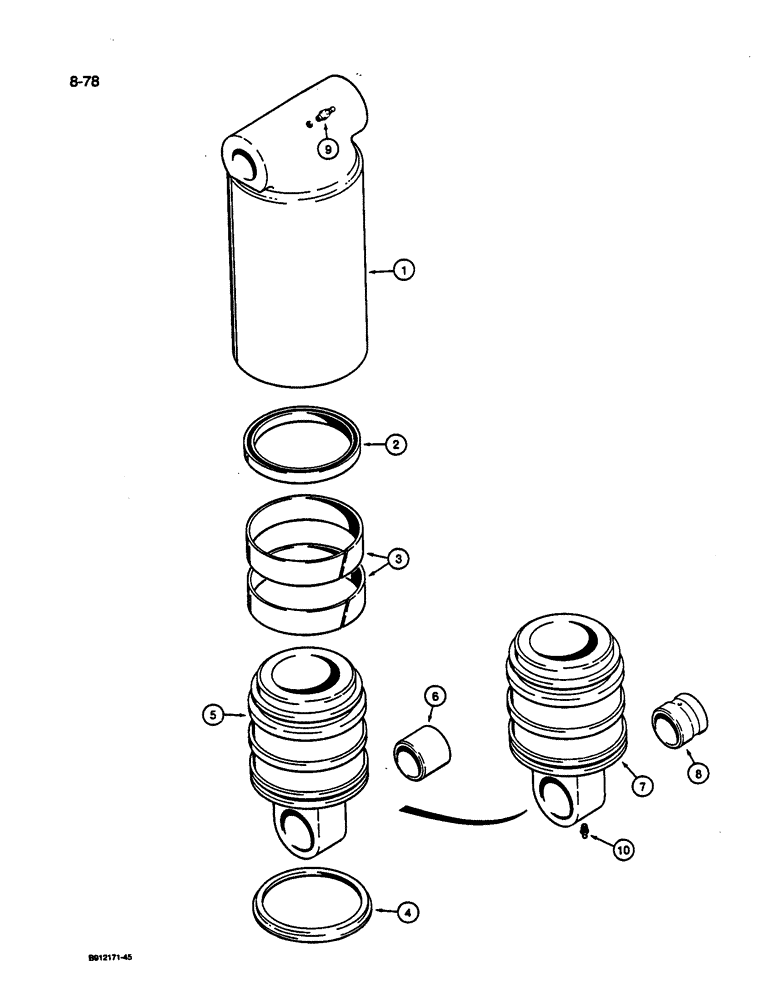

Запчасти Case 1187C (8-78) - LEVELER CYLINDER (08) - HYDRAULICS

S619510

CYLINDER

ASSEMBLY - 6-1/4 (159 mm) ID x 5-7/8 inch (149 mm) stroke, leveler, for mounting hardware see Figure 9-22, Refs. 5 - 7 and Refs. 26 - 28, no longer available, for service order S619704 cylinder assembly, Includes: Ref. 1 - 8

2шт.

S619704

CYLINDER

ASSEMBLY - 6-1/4 (159 mm) ID x 5-7/8 inch (149 mm) stroke, leveler, for mounting hardware see Figure 9-22, Refs. 40 and 41, Includes: Ref. 1 - 8

2шт.

1

S243075

TUBE ASSY.,13.8" L

TUBE - cylinder

1шт.

2

S243077

SEAL

- piston

1шт.

3

S243076

RING

- wear

2шт.

4

S118540

SEAL

WIPER - piston

1шт.

5

S517332

ROD ASSY.

PISTON AND ROD ASSEMBLY - cylinder, used with S619510 cylinder assembly, no longer available, for service order S518017 piston and rod assembly, Ref. 7, Includes: Ref. 6

1шт.

6

S202130

THREADED BUSHING

BUSHING - piston rod, serviceable for S517332 piston and rod assembly

1шт.

7

S518017

ROD ASSY.

PISTON AND ROD ASSEMBLY - cylinder, used with S619704 cylinder assembly, Includes: Ref. 8

1шт.

8

S243840

BUSHING

- piston rod

1шт.

9

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, used with S619704 cylinder assembly only

2шт.
