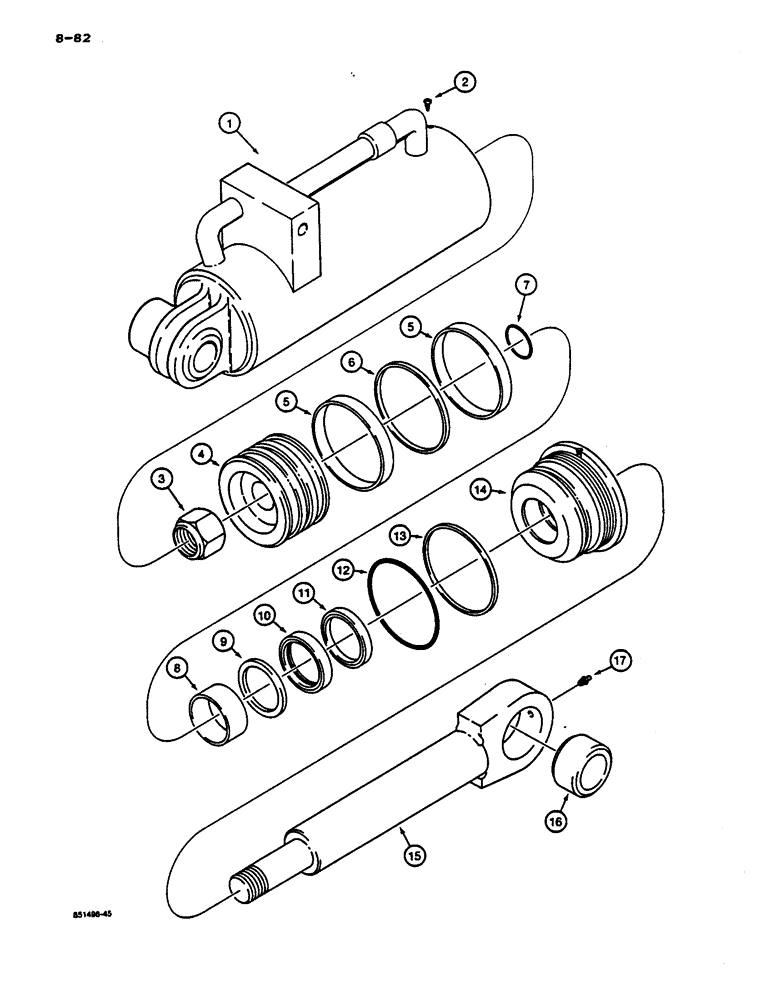

Запчасти Case 1187C (8-82) - GRAB ARM AND CUTTER ARM CYLINDER, USED WITH FELLER-BUNCHER AND ALLIED SAW (08) - HYDRAULICS

S618357

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4-25/32 (121 mm) ID x 10 inch (254 mm) stroke, grab arm and cutter arm, for mounting hardware see Figure 9-46, Includes: Ref. 1 - 17

2шт.

1

S516569

CYLINDER

TUBE - cylinder

1шт.

2

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

3

131-24

NUT,7/8"-14, GB

NUT - hex, self-locking, 1-1/2 inch NF

1шт.

4

S516567

PISTON

- cylinder

1шт.

5

S120389

BEARING LINER

RING - wear, piston

2шт.

6

S120391

SEAL

- piston

1шт.

7

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

Piston rod seal -222, 70 Duro, 1.484" ID x .139" Thk

1шт.

8

S120388

BUSHING

- gland

1шт.

9

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

- piston rod, narrow

1шт.

10

S120390

SEAL

- piston rod, wide

1шт.

11

S22940

WIPER SEAL

WIPER - piston rod, outer

1шт.

12

238-5348

O-RING,0.21" Thk x 4.35" ID, -348, Cl 5, 75 Duro

Gland -348, 70 Duro, 4.35" ID x .210" Thk

1шт.

13

S120402

SPECIAL WASHER

RING - backup, gland O-ring

1шт.

14

S516566

GLAND

- cylinder

1шт.

15

S205819

PISTON ROD

ROD ASSEMBLY - piston, 2-1/2 inch (63 mm) diameter, Includes: Ref. 16

1шт.

16

S23796

BUSHING

- piston rod

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.
