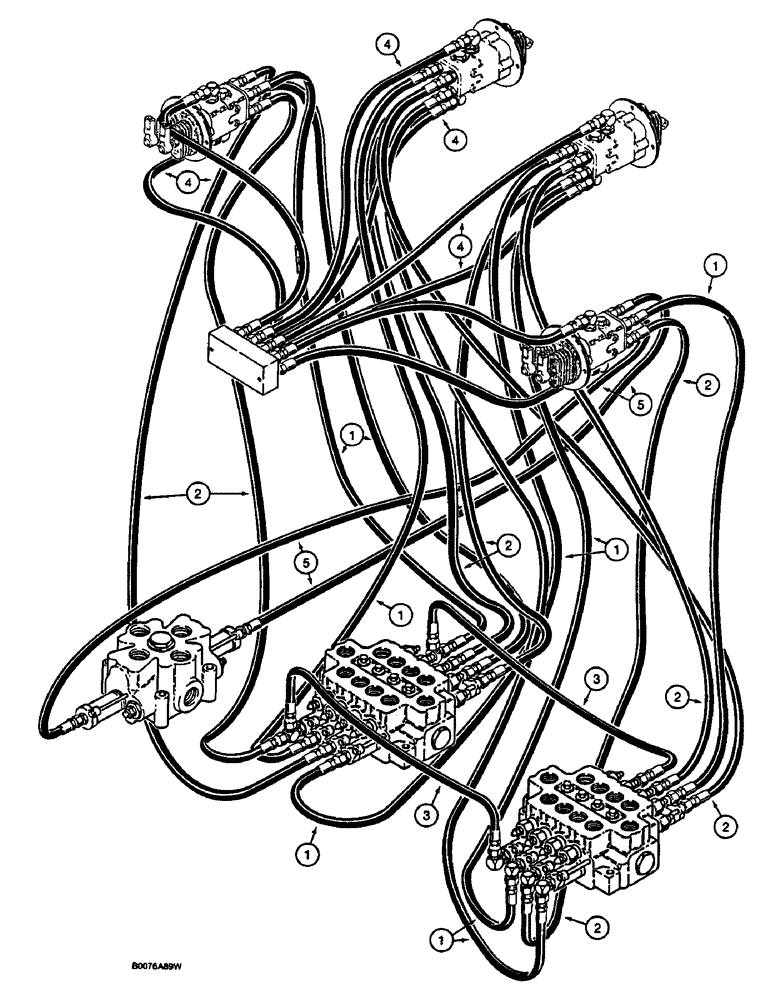

Запчасти Case 1187C (1-14) - PICTORIAL INDEX, HAND AND FOOT CONTROLS (00) - PICTORIAL INDEX

1

Hose at hand and foot control valves to rear of inside and outside control valves, Figure 8-12, 8-14

1шт.

2

Hose at hand and foot control valves to front of inside and outside control valves, Figure 8-12, 8-14

1шт.

3

Hose at inside control valve to outside control valve, Figure 8-12

1шт.

4

Hose at hand and foot control valves to manifold, Figure 8-12, 8-14

1шт.

5

Hose at right-hand control valve to leveler valve, Page 8-16

1шт.
