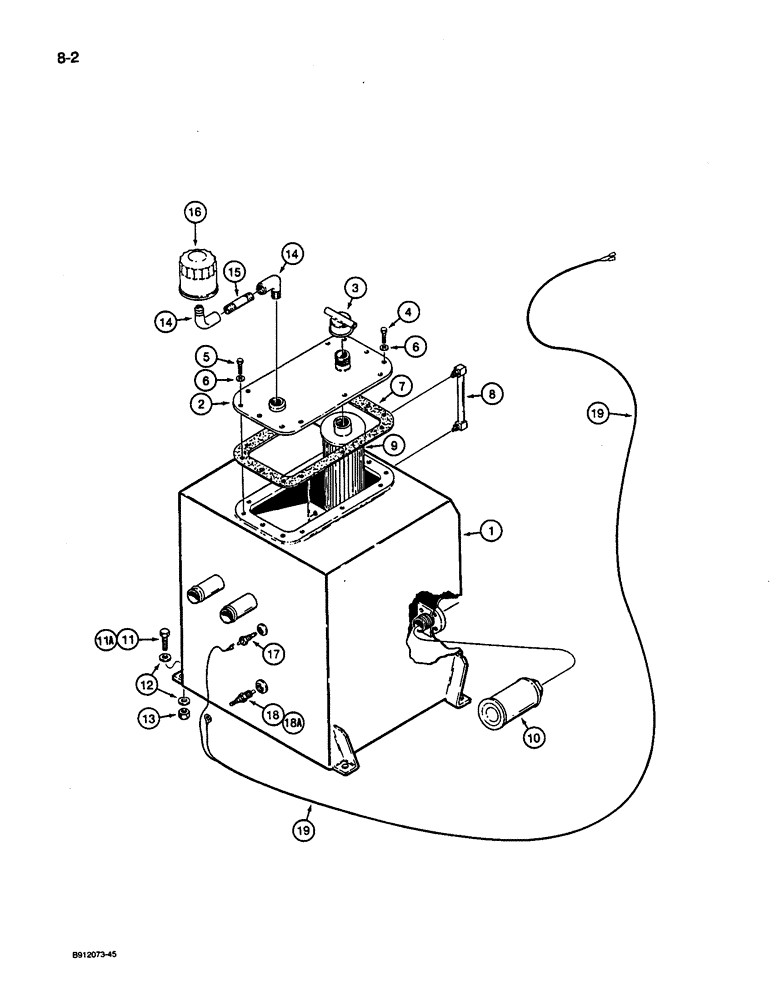

Запчасти Case 1187C (8-02) - HYDRAULIC RESERVOIR AND HARNESS (08) - HYDRAULICS

S618054

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic, excavator, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic, excavator

1шт.

2

S236359

COVER

- reservoir

1шт.

3

S230688

CAP

- fill

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

6

495-21038

WASHER,5/16"

12шт.

7

S230621

GASKET

- cover

1шт.

8

S107269

GAUGE

- oil level

1шт.

9

S514984

FILTER, ENGINE OIL

SCREEN - oil fill

1шт.

10

S117479

FILTER CARTRIDGE

SCREEN - diffuser, return ports

2шт.

11

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

1шт.

11a

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

3шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Used as shims 3/8"

1шт.

13

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

4шт.

14

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

- street, 90 degree, 3/4 inch PT x female PT

2шт.

15

221-1921

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE - straight, 3/4 PT x 2 inch, extra strong

1шт.

16

S120650

BREATHER

- hydraulic reservoir

1шт.

17

S119340

SENSOR

- tank, low hydraulic oil level

1шт.

18

S119399

TEMPERATURE SENDER

SENDER - hydraulic oil temperature, Serial Range: -JAK0033197

1шт.

18a

L127531

SENDER UNIT

SENDER - hydraulic oil temperature, Start Serial: JAK0033197

1шт.

19

S241961

HARNESS

- lower, at hydraulic tank

1шт.
