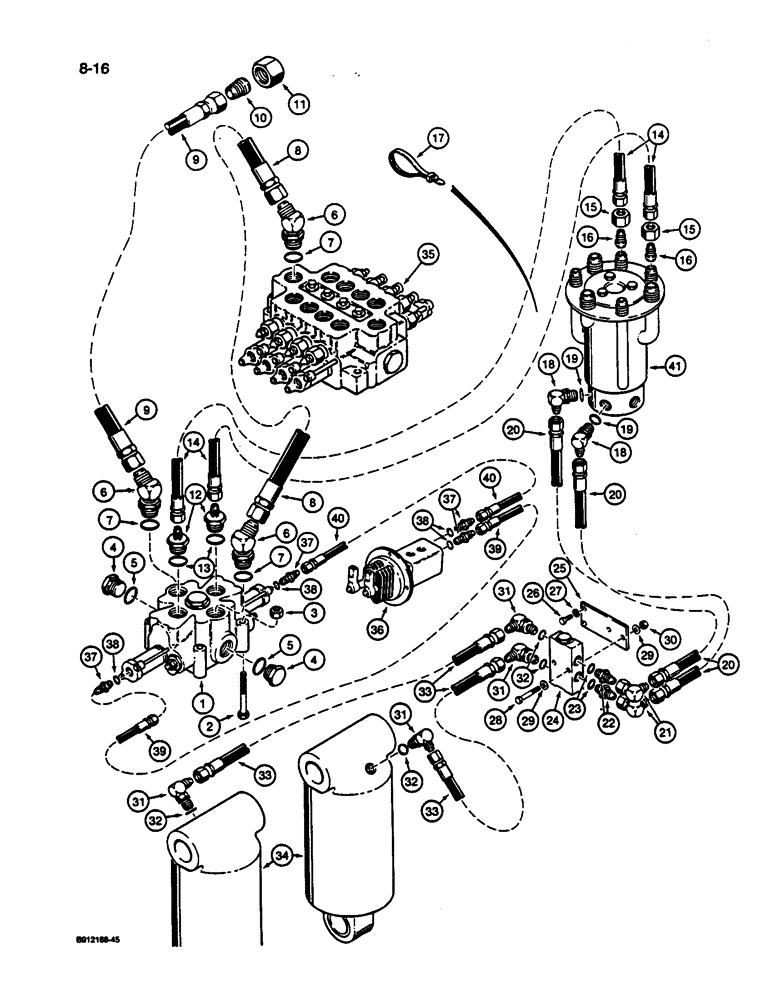

Запчасти Case 1187C (8-16) - HYDRAULIC LEVELER LINES (08) - HYDRAULICS

1

S516450

VALVE

ASSEMBLY - control, leveler, parts list Figure 8-48

1шт.

2

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

3шт.

3

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

3шт.

4

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 5 Hex Hd, 1 5/16"-12 ORB

2шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

6

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, 1-5/16-12 inch flare x adj O-ring boss, Includes: Ref. 7

3шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

8

S8628

HOSE

- 36 inch (914 mm) long, outside control valve to leveler control valve

1шт.

9

S401536

HOSE

- 30 inch (762 mm), outside control valve to leveler control valve

1шт.

10

218-788

REDUCER,37º, 1 1/4" x 1" Tube

ADAPTER - reducing, 1-1/14 tube OD x 1-5/16-12 inch flare

1шт.

11

218-349

TUBE NUT,37 Degree, 1 5/8"-12, Type B

NUT - hex, 1-5/8 inch NF

1шт.

12

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-5/16-12 inch O-ring, Includes: Ref. 13

2шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

14

S11231

HOSE ASSY.

HOSE - 68 inch (1727 mm) long, leveler control, Serial Range: valve-swivel

2шт.

15

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - hex, 1-1/16 inch NF

2шт.

16

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - reducing, 3/4 tube OD x 3/4-16 inch flare, at swivel

2шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring, Includes: Ref. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

S11227

HOSE

- 36 inch (914 mm) long, check, Serial Range: valve-swivel

2шт.

21

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

2шт.

22

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 23

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

24

S516733

VALVE, CHECK

VALVE ASSEMBLY - check, leveler, parts list Figure 8-62

1шт.

25

S119989

BRACKET

- check valve mounting

1шт.

26

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 25 mm

2шт.

27

892-10008

LOCK WASHER,M8

WASHER - lock, 8 mm

2шт.

28

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

29

892-11008

LOCK WASHER,8mm ID

WASHER - flat, 9 x 17 x 1.6 mm

4шт.

30

S118772

NUT

- special

2шт.

31

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 32

4шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

33

S120549

HOSE ASSY.

HOSE - 24 inch (610 mm) long, check valve to leveler cylinders

2шт.

34

REF

INSTRUCTION

CYLINDER ASSEMBLY - leveler, parts list Figure 8-78

2шт.

35

S517198

VALVE

ASSEMBLY - control, outside, parts list Figure 8-46

1шт.

36

S517358

VALVE

ASSEMBLY - control, hand control, right-hand, parts list Figure 8-54

1шт.

37

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 38

4шт.

39

S241223

HOSE ASSY.

HOSE - 125 inch (3175 mm) long, right-hand control valve to rear port of leveler control valve

1шт.

40

S241222

HOSE ASSY.

HOSE - 100 inch (2540 mm) long, right-hand control valve to front port of leveler control valve

1шт.

41

S618820

LINK

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-68

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
