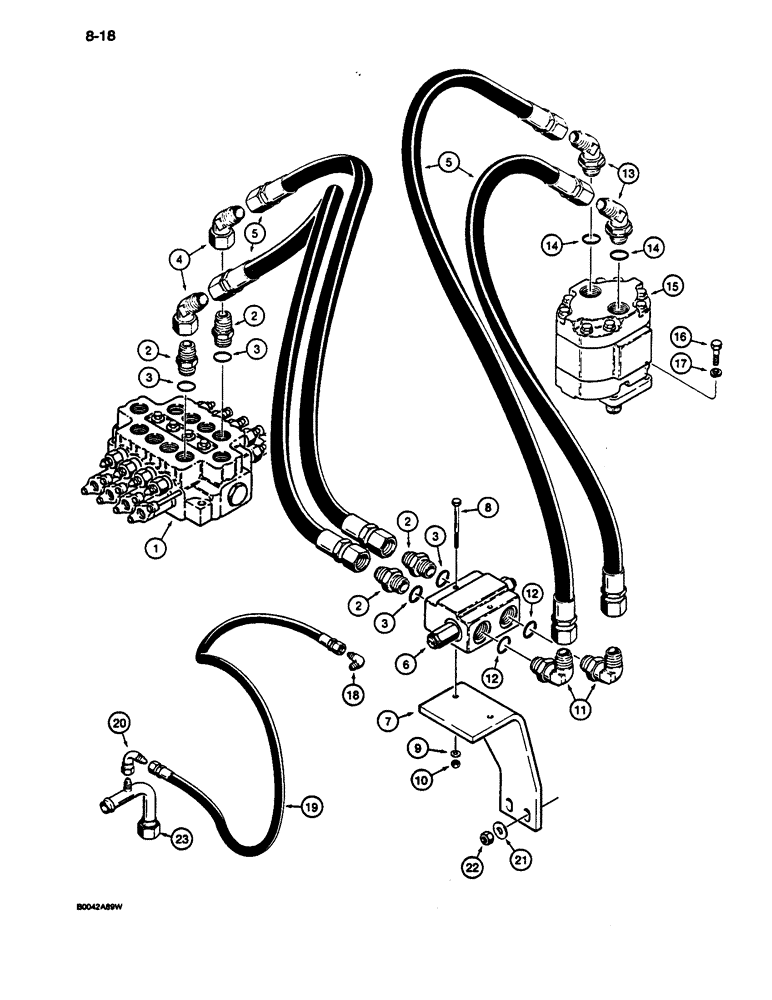

Запчасти Case 1187C (8-18) - SWING MOTOR HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

S517197

VALVE

ASSEMBLY - control, inside, parts list Figure 8-44

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 3

4шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

4

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 deg, 1-5/16-12 inch flare x swivel str thread

2шт.

5

S401536

HOSE

- 30 inch (762 mm) long, control valve to relief valve and relief valve to swing motor

4шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - relief, swing crossover, see Figure 8-60 for correct assembly

1шт.

7

S516691

BRACKET

- mounting, relief, Serial Range: valve-turntable

1шт.

8

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

2шт.

9

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch

2шт.

10

131-462

NUT,5/16"-18

NUT - heavy hex, self-locking, 5/16 inch NC

2шт.

11

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 12

2шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

13

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, 1-5/16-12 inch flare x adj O-ring boss, Includes: Ref. 14

2шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

15

S515587

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, swing, parts list Figure 8-66

1шт.

16

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

18

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT, swing motor drain port

1шт.

19

S241218

HOSE ASSY.

HOSE - 36 inch (914 mm) long, swing motor drain

1шт.

20

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 flare x swivel flare, return tube at hydraulic swivel

1шт.

21

S95569

WASHER

- flat, special, hardened

2шт.

22

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

23

S229693

TUBE,1" OD x 3, 3.75" L

- return, No. 1 port of hydraulic swivel

1шт.
