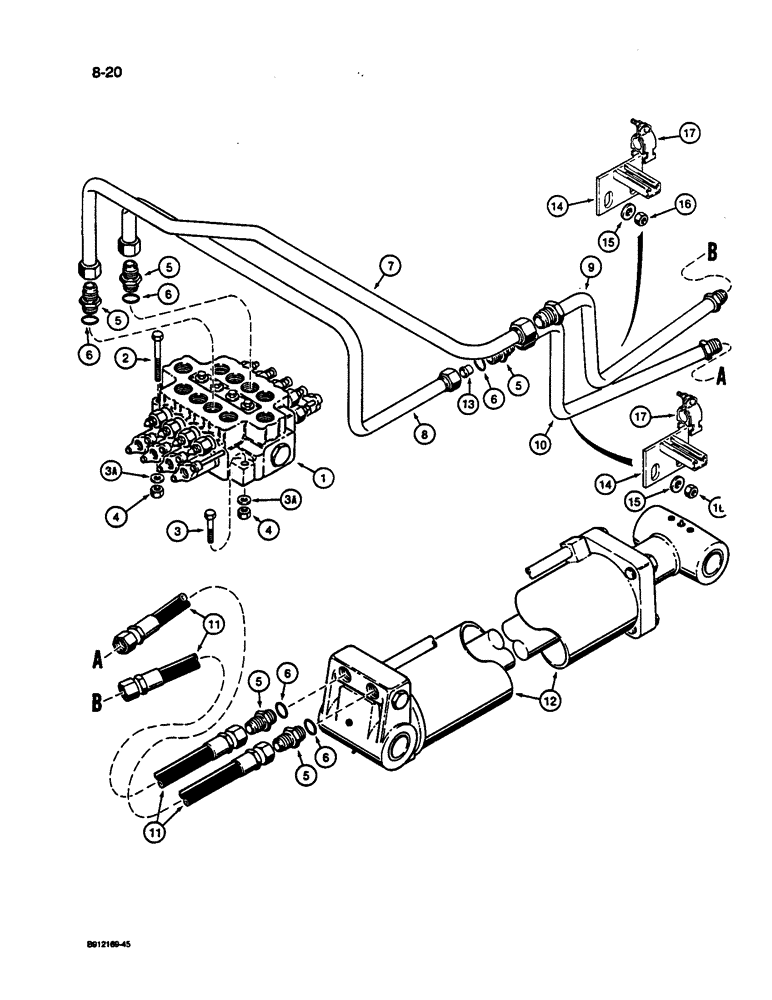

Запчасти Case 1187C (8-20) - HYDRAULIC CIRCUIT, BOOM CYLINDER (08) - HYDRAULICS

1

S517198

VALVE

ASSEMBLY - control, outside, parts list Figure 8-46

1шт.

2

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex, 1/2 NC x 4-1/4 inch

2шт.

3

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

3a

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

3шт.

4

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

3шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 6

5шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

7

S517271

TUBE ASSY.,1.25" OD

TUBE - port "A2" of control valve to rod end of boom cylinder

1шт.

8

S517272

TUBE ASSY.,1.25" OD

TUBE - port "B2" of control valve to closed end of boom cylinder

1шт.

9

S515896

TUBE ASSY.,1.25" OD x 22.9, 9.4" L

TUBE - intermediate, control valve to rod end of boom cylinder

1шт.

10

S515895

TUBE ASSY.,1.25" OD x 20.8, 9.4" L

TUBE - intermediate, control valve to closed end of boom cylinder

1шт.

11

S8628

HOSE

- 36 inch (914 mm) long, intermediate tube to boom cylinder

2шт.

12

S957052

CYLINDER

ASSEMBLY - boom, parts list Figure 8-72

1шт.

13

S79252

REGULATOR

RESTRICTOR - oil flow

1шт.

14

S242296

BRACKET

CHANNEL - tube clamp, Serial Range: bolted-turntable

2шт.

15

S95569

WASHER

- flat, special, hardened

4шт.

16

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

4шт.

17

S93266

CLAMP

- tube

2шт.
