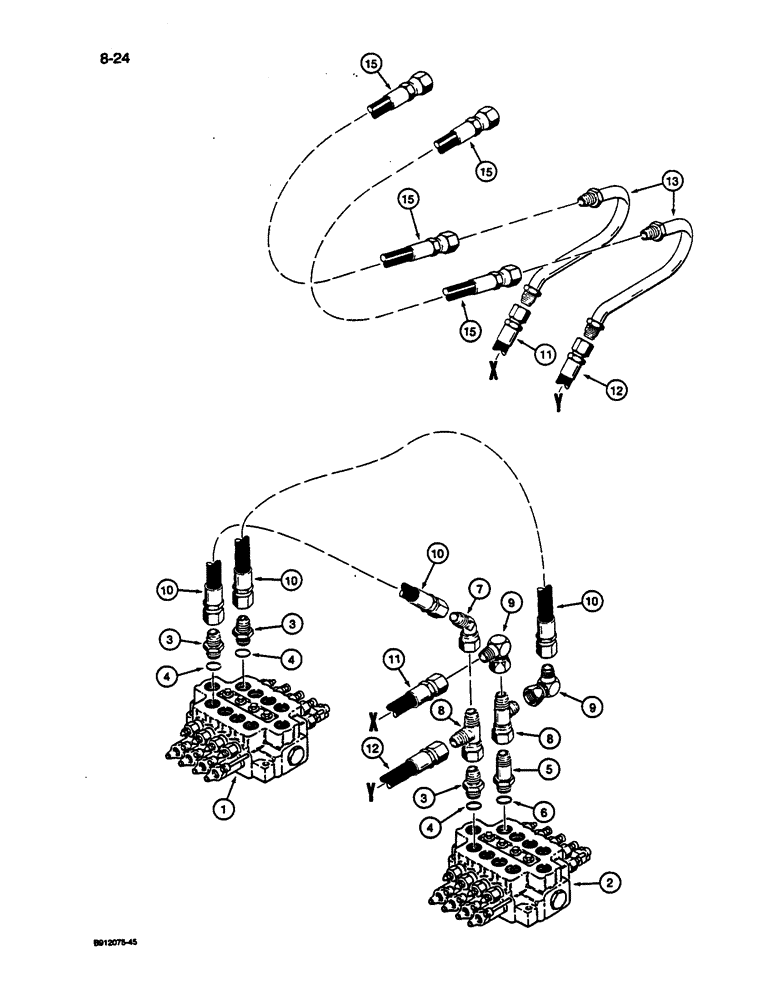

Запчасти Case 1187C (8-24) - ATTACHMENT CYLINDER CIRCUIT, TUBES FROM CONTROL VALVES AT TURNTABLE (08) - HYDRAULICS

1

S517198

VALVE

ASSEMBLY - control, outside, parts list Figure 8-46

1шт.

2

S517197

VALVE

ASSEMBLY - control, inside, parts list Figure 8-44

1шт.

3

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 4

3шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

5

218-5034

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/16-12 inch flare x O-ring boss, Includes: Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

7

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 deg, 1-5/16-12 inch flare x swivel str thread

1шт.

8

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- 1-5/16-12 inch fl branch x flare x adj straight thread, adapter to hose

2шт.

9

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare, adapter to hose

2шт.

10

S8628

HOSE

- 1 ID (25 mm) x 36 inch (914 mm), inside valve to outside valve

2шт.

11

S8628

HOSE

- 1 ID (25 mm) x 36 inch (914 mm), tee to cylinder tube

1шт.

12

S235936

HOSE

- 1 ID (25 mm) x 49 inch (1245 mm), tee to cylinder tube

1шт.

13

S242339

TUBE ASSY.,1.25" OD

TUBE - attachment cylinder

2шт.

15

S8628

HOSE

- 1 ID (25 mm) x 36 inch (914 mm), attachment cylinder tube to boom tube lines

2шт.
