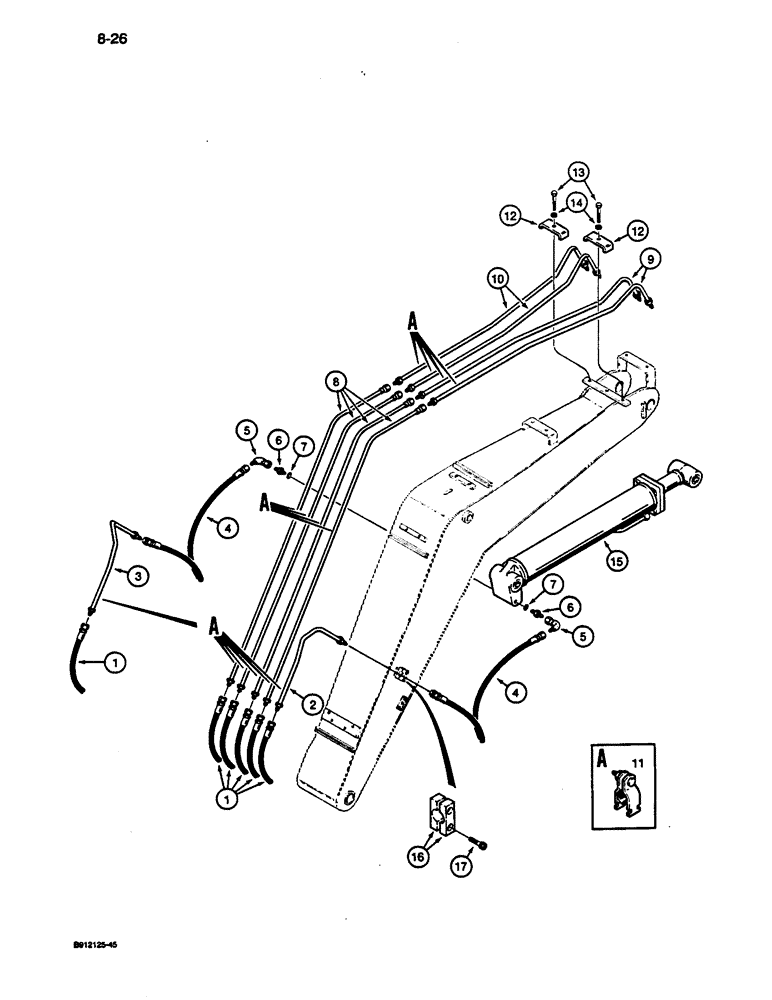

Запчасти Case 1187C (8-26) - ARM, TOOL, AND ATTACHMENT CYLINDER CIRCUIT, TUBES AT BOOM (08) - HYDRAULICS

1

S8628

HOSE

- 1 (25 mm) ID x 36 inch (914 mm) long, tubes at turntable to tubes at boom

6шт.

2

S517246

TUBE ASSY.,1.25" OD

TUBE - to arm cylinder, right-hand side of boom

1шт.

3

S517247

TUBE ASSY.,1.25" OD

TUBE - to arm cylinder, left-hand side of boom

1шт.

4

S8628

HOSE

- 1 (25 mm) ID x 36 inch (914 mm) long, tube to arm cylinder

2шт.

5

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare

2шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 7

2шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

8

S516702

TUBE ASSY.,1.25" OD x 48.1, 60.2" L

TUBE - to tool and attachment cylinders, at rear of boom

4шт.

9

S516699

TUBE ASSY.,1.25" OD

TUBE - to tool and attachment cylinders, at top of boom, right-hand side

2шт.

10

S516698

TUBE ASSY.,1.25" OD

TUBE - to tool and attachment cylinders, at top of boom, left-hand side

2шт.

11

S93266

CLAMP

- tube, at welded brackets on rear, side, and top of boom

16шт.

12

S46397

CLAMP

- tube, at tapped block on front of boom, see Figure 8-30 for optional clamps used when Allied Saw hydraulics are used at boom

2шт.

13

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

15

S956911

CYLINDER

ASSEMBLY - arm, parts list Figure 8-74

1шт.

16

S243810

CLAMP

- retaining

2шт.

17

461-33816

HEX SOC SCREW,3/8"-16 x 1"

BOLT - hex socket head, 3/8 NC x 1 inch

4шт.
