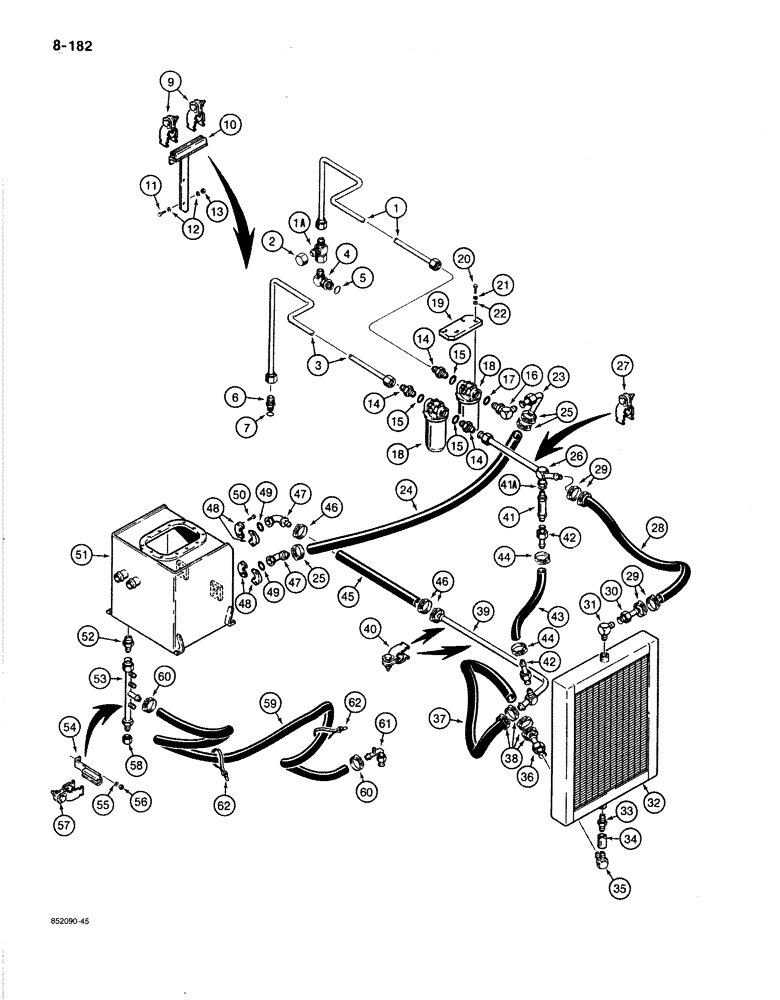

Запчасти Case 1080B (8-182) - HYDRAULIC OIL FILTER AND COOLER LINES (08) - HYDRAULICS

1

S618419

TUBE ASSY.

TUBE - outside control valve to front filter

1шт.

1a

218-5481

TEE,37 Degree, 1 7/8"-12 x 1 7/8"-12, Fem Sw Run

- filter line

1шт.

FIG 1-A THREAD IS 2 1/2 - 12. FIGURE 2 ALTERNATE PART IS 218-760. FIG 6 ALTERNATE PART IS 218-5074.

1шт.

2

218-758

CAP,37 Degree, 1 5/16"-12

- tee, if used

1шт.

3

S516598

TUBE ASSY.,1.5" OD

TUBE - inside valve to rear filter

1шт.

4

218-5276

ELBOW,90 Degree, 1 7/8"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degree, at outside valve, Includes: Ref. 5

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Elbow

1шт.

6

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, at inside valve, Includes: Ref. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

9

S98324

CLAMP

- tube

2шт.

10

S234786

BRACKET

- filter support

1шт.

11

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

12

S95569

WASHER

- flat, 1/2", hardened

4шт.

13

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

14

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, tubes to filter, Includes: Ref. 15

3шт.

15

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk, Adapter

1шт.

16

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

- 90 degree, front filter outlet, Includes: Ref. 17

1шт.

17

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk, Elbow

1шт.

18

S616066

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-258

2шт.

19

S241848

BAR

PLATE - filter mounting

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

195-103

WASHER,5/16"

- flat, 3/8", plated

4шт.

23

S235862

TUBE,1.5" OD x 6.5, 6.5" L

- front filter outlet

1шт.

24

REF

INSTRUCTION

HOSE - 1-1/2" (38 mm) ID x 16-1/2" (419 mm) long, to hydraulic reservoir, cut from S120500, see below

1шт.

25

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

- hose

3шт.

26

S516406

TUBE ASSY.,27.4, 1.5" L

TUBE - rear filter outlet

1шт.

27

S98324

CLAMP

- tube, see Fig. 2-16, Ref. 14 or Figure 2-18, Ref. 14 for clamp support

1шт.

28

REF

INSTRUCTION

HOSE - 1-1/2" (38 mm) ID x 30" (762 mm) long, to coil cooler, cut from S120500, see below

1шт.

29

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

- hose

4шт.

30

S231593

TUBE ASSY.,1.5" OD x 5.5" L

TUBE - to oil cooler

1шт.

31

218-1069

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degree, oil cooler inlet

1шт.

32

S613672

COOLER, OIL

COOLER - hydraulic oil

1шт.

33

217-1074

HYD CONNECTOR,1" - 11-1/2 NPTF

NIPPLE - 1" NPT

1шт.

34

217-1105

COUPLING

- 1" NPT

1шт.

35

S119263

ELBOW

- 90 degree, oil cooler outlet

1шт.

36

S231593

TUBE ASSY.,1.5" OD x 5.5" L

TUBE - oil cooler outlet

1шт.

37

REF

INSTRUCTION

HOSE - 1-1/2" (38 mm) ID x 38" (965 mm) long, from oil cooler, cut from S120500, see below

1шт.

38

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

- hose

4шт.

S120500

HOSE,1.50" ID x 60.00"

- bulk roll, Use to make Refs. 24, 28, and 37 1.50" ID x 60.00"

1шт.

39

S516756

TUBE ASSY.,41, 11.14" L

TUBE - to hydraulic reservoir

1шт.

40

S98324

CLAMP

- tube

2шт.

41

S105386

VALVE

- check, return line, Includes: Ref. 41A

1шт.

41a

A13084

O-RING,12.37" ID x 1.443" OD x 0.103"

- valve body to valve fitting

1шт.

42

S215412

TUBE,1.25" OD x 3" L

- return

2шт.

43

REF

INSTRUCTION

HOSE - 1-1/4" (32 mm) ID x 8-1/2" (216 mm) long, return, cut from S118465, see below

1шт.

44

214-371

CLAMP,1.56"-1.81", T-Bolt

- hose

2шт.

45

REF

INSTRUCTION

HOSE - 1-1/4" (32 mm) long, to hydraulic reservoir, cut from S120500, see below

1шт.

46

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

- hose

3шт.

47

S236134

- 90 degree, reservoir inlet

2шт.

48

A14157

FLANGE

- split, elbow

4шт.

49

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- elbow

2шт.

50

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex head, 1/2" -13 NC x 1-1/4", plated

8шт.

51

S618054

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, parts list Figure 8-184

1шт.

52

218-450

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-1/2" - 11-1/2 Male NPTF

ADAPTER - straight, reservoir bottom

1шт.

53

S516452

TUBE,20, 3" L

- reservoir drain

1шт.

54

S241343

BRACKET

- tube clamp

1шт.

55

S95569

WASHER

- flat, 1/2", hardened

1шт.

56

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" -13 NC, plated

1шт.

57

S98324

CLAMP

- tube

1шт.

58

218-760

CAP,37 Degree, 1 7/8"-12

- reservoir drain

1шт.

59

REF

INSTRUCTION

HOSE - 1-1/4" (32 mm) ID x 63" (1524 mm) long, return, cut from S118383, see below

1шт.

60

214-378

CLAMP,1.40"-1.56", T-Bolt

- hose

2шт.

61

S229693

TUBE,1" OD x 3, 3.75" L

- return, from swivel, port No. 1

1шт.

62

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

- Bulk roll, Use to make Ref. 43 1.25" ID x 180.00", SAE 100R3

1шт.

S120500

HOSE,1.50" ID x 60.00"

- Bulk roll, Use to make Ref. 45 1.50" ID x 60.00"

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1.00" ID x 192.00" Bulk, SAE 100R3 - Use to make Ref. 59

1шт.
