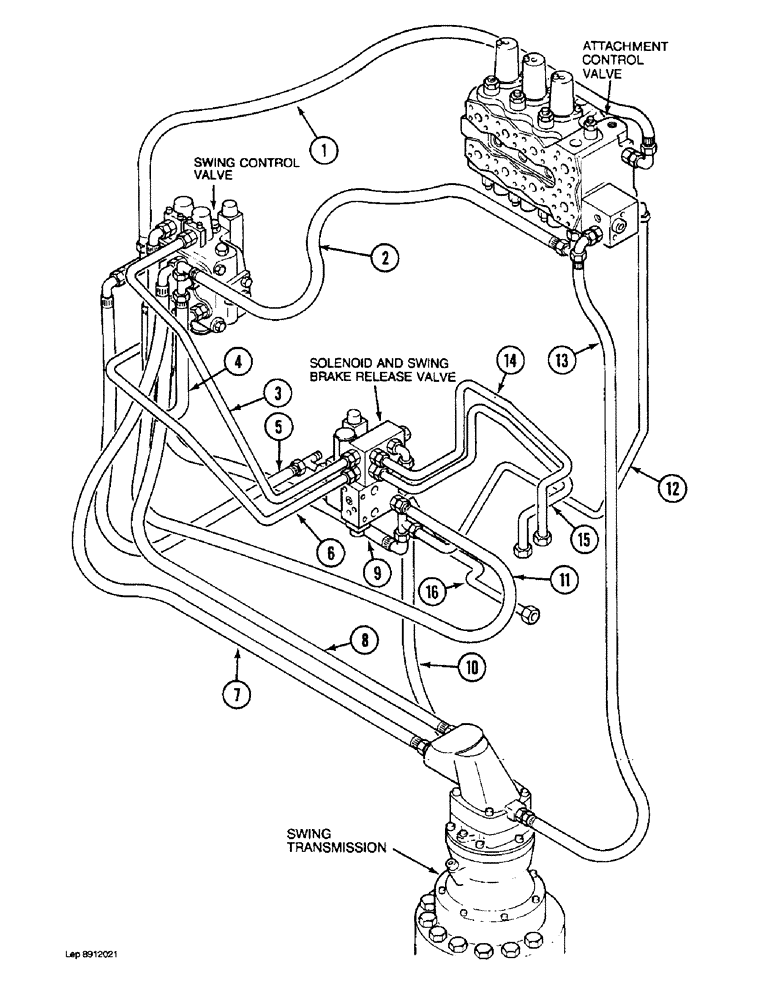

Запчасти Case 1088 (1-16) - PICTORIAL INDEX, HYDRAULIC CONTROL CIRCUIT (00) - PICTORIAL INDEX

1

Tube, Pressure, From High Pressure Pump to Swing Control Valve Hose, Page 8C-4

1шт.

2

Hose, Return, Swing Control Valve to Attachment Control Valve, Page 8C-4

1шт.

3

Tube, Swing Control Valve to Brake Release Valve, Page 8C-4

1шт.

4

Hose, Return, Swing Control Valve, Page 8C-4

1шт.

5

Hose, Return, Brake Release Valve to Swing Control Valve, Page 8C-4

1шт.

6

Hose, Brake Valve to Swing Control Valve, Page 8C-4

1шт.

7

Hose, Pressure, Swing Control Valve to Swing Motor, Page 8C-6

1шт.

8

Hose, Pressure, Swing Control Valve to Swing Motor, Page 8C-6

1шт.

9

Hose, Swing Control Valve to Brake Release, Page 8C-6

1шт.

10

Hose, Brake Release, Page 8C-6

1шт.

11

Hose, Swing Control Valve to Brake Release, Page 8C-6

1шт.

12

Tube, Attachment Control Valve to Brake Release Valve, Page 8C-6

1шт.

13

Hose, Return, Swing Hydraulic Motor to Attachment Control Block, Page 8C-6

1шт.

14

Tube, Brake Release Valve to Cab Hydraulic Circuit, (See page 1-18 for continuation), Page 8C-6

1шт.

15

Tube, Brake Release Valve to Cab Hydraulic Circuit, (See page 1-18 for continuation), Page 8C-6

1шт.

16

Tube, Solenoid Block to Manifold, (See page 1-18 for continuation), Page 8C-6

1шт.
