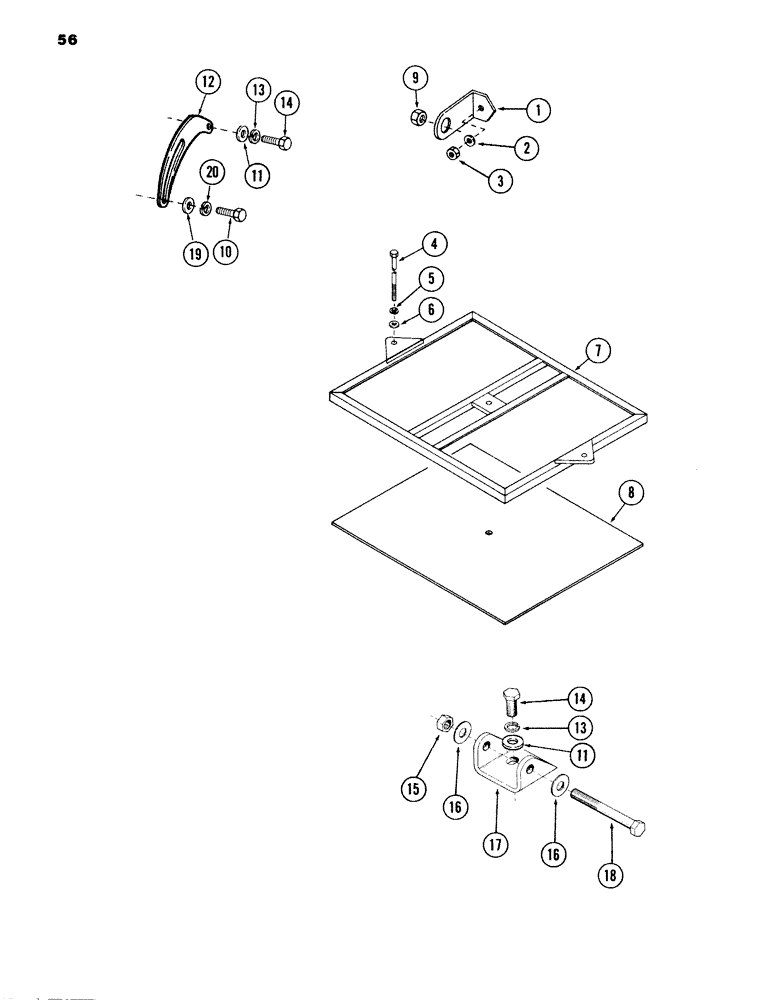

Запчасти Case 980B (056) - ELECTRICAL MOUNTING BRACKETS AND HARDWARE, (USED ON UNITS WITH 6204051 AND AFTER) (06) - ELECTRICAL SYSTEMS

1

S203190

BRACKET

- horn

1шт.

2

195-102

WASHER,1/4"

- flat 1/4"

1шт.

3

86625061

NUT,1/4"-20, GB

NUT - lock 1/4" NC hex

1шт.

4

113-2446

BOLT,Hex, 1/2" - 13 x 10-1/2", Gr 5

3шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

6

S95569

WASHER

- flat 1/2"

3шт.

7

S511694

BATTERY

BRACKET - battery box

1шт.

8

S235290

GASKET

PAD - rubber

1шт.

9

S64752

NUT

- horn

1шт.

10

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Strap to alternator Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

11

195-525

WASHER,3/8", SAE

- flat 3/8"

3шт.

12

S200898

STRAP

- alternator adjusting

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- 3/8" x 3/4" NC hex (Grade 6) mounts strap and bracket to engine

3шт.

15

131-52

NUT,3/8"-16, GC

NUT - lock 1/2" NC hex

1шт.

16

195-530

WASHER,7/16"

- flat 1/2"

2шт.

17

A160391

BRACKET

- alternator mounting (Replaces A38492)

1шт.

18

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 1/2" - 13 NC hex (Grade 5) alternator to bracket

1шт.

19

195-521

WASHER,5/16", SAE

- flat 5/16"

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.
