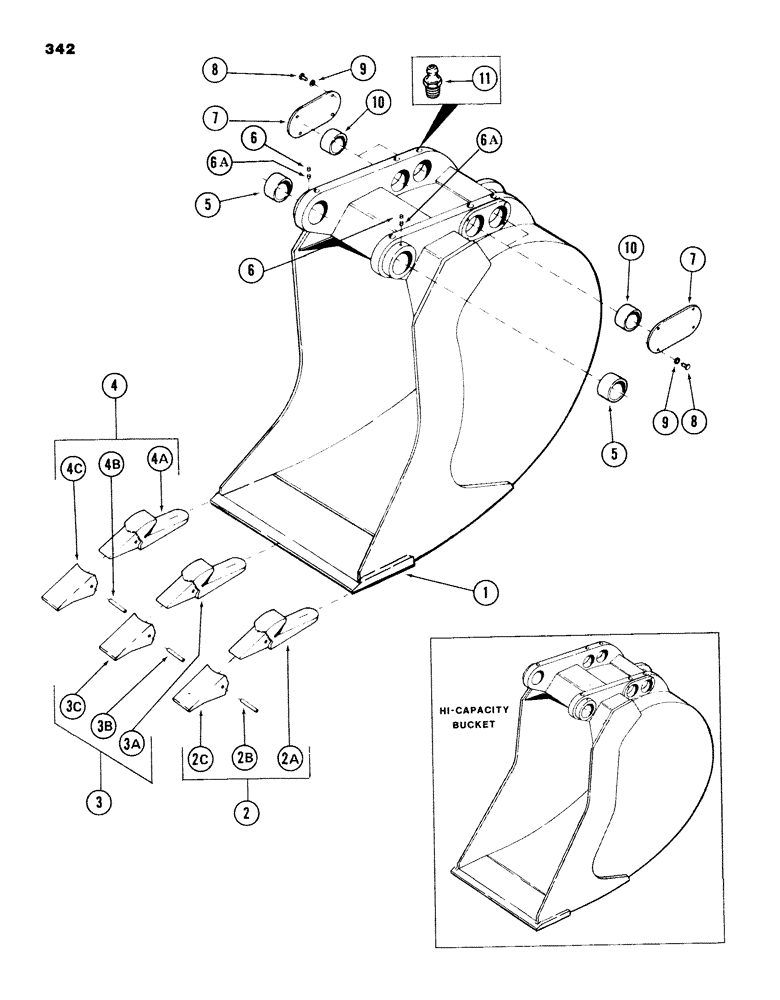

Запчасти Case 980B (342) - BACKHOE BUCKETS, (GENERAL PURPOSE), ASSY P/N S955485 (19) - BUCKETS

S955485

BUCKET ASSEMBLY - backhoe - 3/4 cu. yd. (Machinery item) - 3/4 cu. yd. Backhoe Bucket (30" wide), Includes: Ref. 1 - 4

1шт.

1

S231088

EDGE, cutting - 30" - 3/4 cu. yd. Backhoe Bucket (30" wide)

1шт.

2

S510310

TOOTH

ASSEMBLY - right outside - (parts list below) - 3/4 cu. yd. Backhoe Bucket (30" wide)

1шт.

3

S510308

TOOTH

ASSEMBLY - center - (parts list below) - 3/4 cu. yd. Backhoe Bucket (30" wide)

3шт.

4

S510309

TOOTH

ASSEMBLY - left outside - (parts list below) - 3/4 cu. yd. Backhoe Bucket (30" wide)

1шт.

S955488

BUCKET ASSEMBLY - backhoe - 1 cu. yd. (Machinery item) - 1 cu. yd. Backhoe Bucket (36" wide), Includes: Ref. 1 - 4

1шт.

1

S231089

EDGE, cutting - 36" - 1 cu. yd. Backhoe Bucket (36" wide)

1шт.

2

S510310

TOOTH

ASSEMBLY - right outside - (parts listed below) - 1 cu. yd. Backhoe Bucket (36" wide)

1шт.

3

S510308

TOOTH

ASSEMBLY - center - (parts listed below) - 1 cu. yd. Backhoe Bucket (36" wide)

3шт.

4

S510309

TOOTH

ASSEMBLY - left outside - (parts listed below) - 1 cu. yd. Backhoe Bucket (36" wide)

1шт.

S955491

BUCKET ASSEMBLY, backhoe - 1-1/4 cu. yd. (Machinery item) - 1-1/4 cu. yd. Bucket (42" wide), Includes: Ref. 1 - 4

1шт.

1

S231090

EDGE, cutting - 45" - 1-1/4 cu. yd. Bucket (42" wide)

1шт.

2

S510310

TOOTH

ASSEMBLY - right outside - (parts listed below) - 1-1/4 cu. yd. Bucket (42" wide)

1шт.

3

S510308

TOOTH

ASSEMBLY - center - (parts listed below) - 1-1/4 cu. yd. Bucket (42" wide)

4шт.

4

S510309

TOOTH

ASSEMBLY - left outside - (parts listed below) - 1-1/4 cu. yd. Bucket (42" wide)

1шт.

S954997

BUCKET ASSEMBLY - high capacity backhoe - 1-1/4 cu. yd. (Machinery item) - 1-1/4 cu. yd. high capacity backhoe bucket (36" wide), Includes: Ref. 1 - 2C

1шт.

1

S231089

EDGE, cutting - 36" - 1-1/4 cu. yd. high capacity backhoe bucket (36" wide)

1шт.

2

S510310

TOOTH

ASSEMBLY - right outside - (parts listed below) - 1-1/4 cu. yd. high capacity backhoe bucket (36" wide)

1шт.

3

S510308

TOOTH

ASSEMBLY - center - (parts listed below) - 1-1/4 cu. yd. high capacity backhoe bucket (36" wide)

3шт.

4

S510309

TOOTH

ASSEMBLY - left outside - (parts listed below) - 1-1/4 cu. yd. high capacity backhoe bucket (36" wide)

1шт.

2

S510310

TOOTH

ASSEMBLY - right outside, Includes: Ref. 2A - 2C

1шт.

2a

S609410

SHANK

tooth assembly

1шт.

2b

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, , Tooth assembly 1/2" x 3", Slotted

1шт.

2c

S510311

POINT

TIP, tooth assembly

1шт.

3

S510308

TOOTH

ASSEMBLY - center, Includes: Ref. 3A - 3C

1шт.

3a

S609408

SHANK

tooth assembly

1шт.

3b

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, , Tooth assembly 1/2" x 3", Slotted

1шт.

3c

S510311

POINT

TIP, tooth assembly

1шт.

4

S510309

TOOTH

ASSEMBLY - left hand, Includes: Ref. 4A - 4C

1шт.

4a

S609409

SHANK

tooth assembly

1шт.

4b

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, , Tooth assembly 1/2" x 3", Slotted

1шт.

4c

S510311

POINT

TIP, tooth assembly

1шт.
