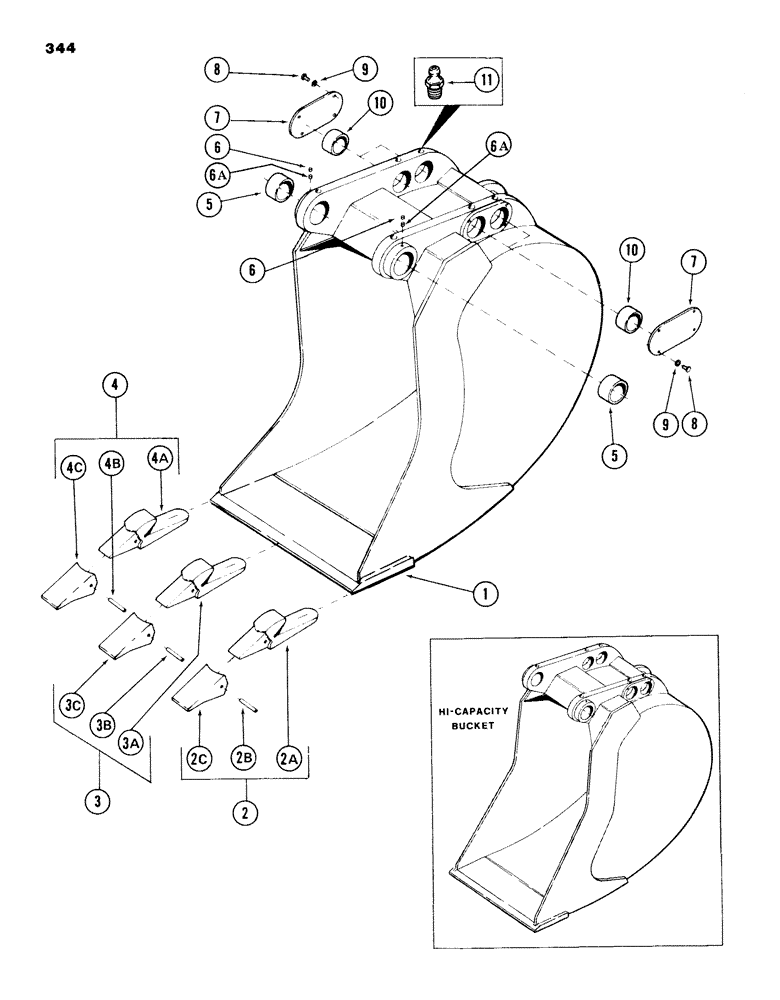

Запчасти Case 980B (344) - BACKHOE BUCKETS, (GENERAL PURPOSE) (19) - BUCKETS

5

S229392

BUSHING

2шт.

6

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8"

2шт.

6a

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8"

2шт.

7

REF

INSTRUCTION

COVER

2шт.

PRIOR TO ORDERING COVER (ref 7) CHECK DIMENSION "A" BETWEEN MOUNTING HOLES, IF MEASURMENT IS 5.940" ORDER COVER S229978 AND IF MEASURMENT IS 6.155" ORDER COVER S111923.

1шт.

8

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

CPSW - 3/8" - 16 NC x 7/8" Gr 5

8шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

10

REF

INSTRUCTION

BUSHING

4шт.

PRIOR TO ORDERING BUSHING (ref 10) CHECK DIMENSION "B". IF DIAMETER IS 3.130" ORDER BUSHING S229988 AND IF DIAMETER IS 3.379" ORDER BUSHING S234928.

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (straight)

6шт.

12

S23395

SCREW

drive - No 7 NC x 5/16" - (NOT ILLUSTRATED)

2шт.

13

NSS

NOT SOLD SEPARAT

PLATE, serial - (NOT ILLUSTRATED)

1шт.
