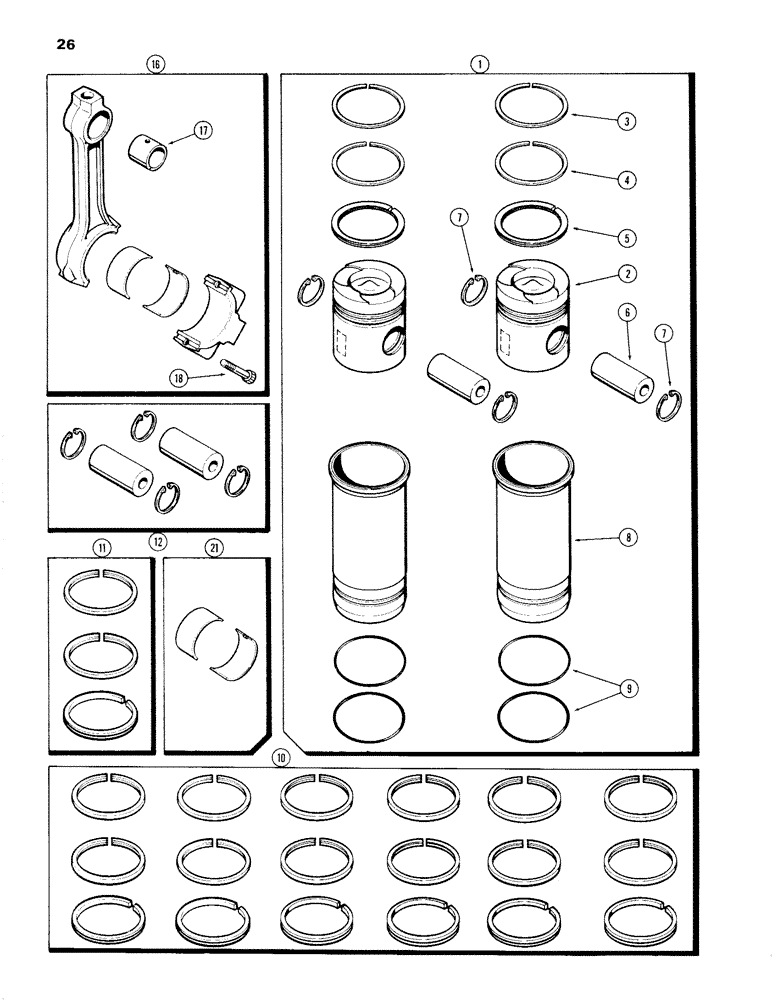

Запчасти Case 980B (026) - PISTONS, 504BDT DIESEL ENGINE (01) - ENGINE

1

A152177

SET

PISTON ASSY - (Set of 2), Includes: Ref. 2 - 9

3шт.

2

A146697

PISTON

PISTON

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order Ref.11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order Ref.11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, 3rd groove (Order Ref.11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref.12)

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

8

A138317

SLEEVE

SLEEVE - piston (cylinder liner)

2шт.

9

A146616

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

O-RING - sleeve, 4-1/2 x 4-11/16 x 3/32" (114.3 x 118.06 x 2.38 mm)

4шт.

10

A43082

SET OF RINGS

RING KIT - piston re-ring (Set of 6), Includes: Ref. 11

1шт.

11

A43081

RING

RING KIT - piston re-ring (Set of 1)

6шт.

12

A44574

PIN

PIN KIT - piston, with retaining rings (Set of 2)

3шт.

16

A65032

ROD

ROD ASSY - connecting, Includes: Ref. 17 and 18

6шт.

17

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

BUSHING - piston pin, connecting rod

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap, 1/2 x 2-3/116" NF, 12 point head

2шт.

21

A41758

BEARING LINER

INSERT SET - connecting rod bearing, standard (Set of 2)

6шт.

21

A41899

BEARING LINER

INSERT SET - connecting rod bearing, -.002" (-0.06mm) (Set of 2)

6шт.

21

A41900

BEARING LINER

INSERT SET - connecting rod bearing, -.010" (-0.26mm) (Set of 2)

6шт.

21

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

21

AC65032

CORE-ROD CONNECTING

Core Connecting Rod Return Part Number

6шт.

21

A41901

BEARING LINER

INSERT SET - connecting rod bearing, -.020" (-0.51mm) (Set of 2)

6шт.

21

A41902

BEARING LINER

INSERT SET - connecting rod bearing, -.030" (-0.77mm) (Set of 2)

6шт.
