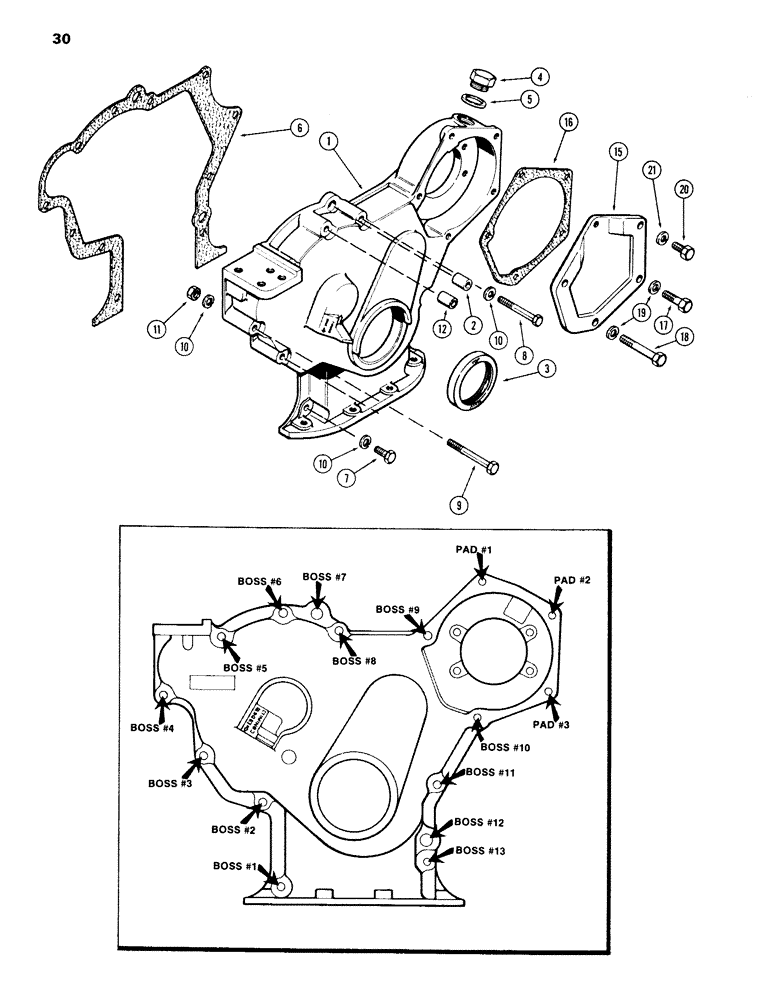

Запчасти Case 980B (030) - TIMING GEAR COVER, 504BDT DIESEL ENGINE (01) - ENGINE

1

A58609

COVER

ASSY - timing gears, Includes: Ref. 2

1шт.

2

A58611

PIN

- cover locating, 3/8 x 5/8 x 1" (9.53 x 15.88 x 25.4)

2шт.

3

A62049

OIL SEAL

- oil, crankshaft, front, 2-5/8 x 3-5/8 x 1/2" (66.68 x 92.04 x 12.7 mm)

1шт.

4

A21140

PLUG

- timing hole - (See Note Below)

1шт.

Ref 4 and ref 5 are used on units prior to pin 6204051. For parts used on units pin 6204051 and after, see figure 70, refs 20 and 21.

1шт.

5

A58613

SEALING WASHER

GASKET - timing hole plug - (See Note Below)

1шт.

6

A58612

GASKET

- timing, Serial Range: cover-block

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Boss #1, #2, #11 and #13) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex (Boss #3 and #8)

2шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" NC hex (Boss #4, #5 and #6)

3шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

3шт.

12

A19774

BUSHING

SPACER - alternator pry point, 3/8" pipe x 1" (9.53 mm pipe x 25.4mm)

1шт.

15

A61053

COVER

- injector pump gears

1шт.

16

A58615

GASKET

- cover

1шт.

17

A151921

BOLT

- 3/8 x 1-1/4" NC hex (head drilled for anti-tamper wire) (Pad #2 and #3)

2шт.

18

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" NC hex (Boss #9 and #10)

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Pad #1) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.
