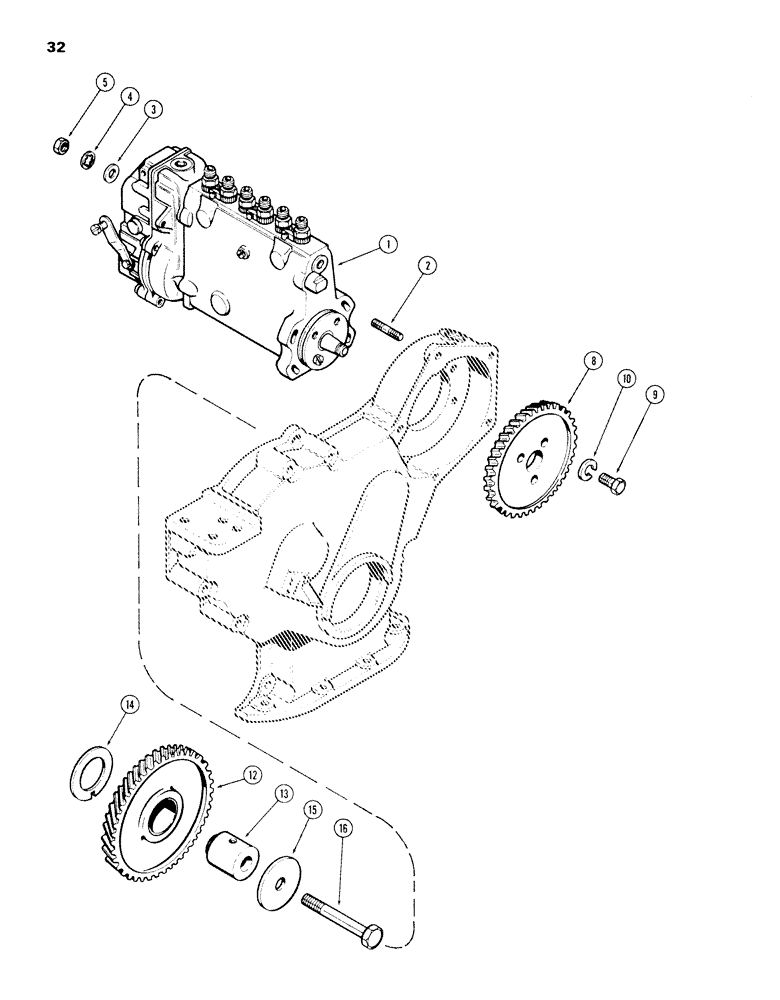

Запчасти Case 980B (032) - INJECTION PUMP DRIVE, 504BDT DIESEL ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY - fuel injection (See Figure 38)

1шт.

2

A58689

STUD

- pump mounting, 3/8" NC x 1-7/8"

3шт.

2

A142092

STUD

- pump mounting, 3/8" NC x 1-7/8" with hole drilled for anti-tamper wire

1шт.

3

A57470

WASHER

- 3/8 x 11/16 x 16 gauge

4шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" NC hex (Used with A58689 stud)

3шт.

5

25-126

SLOTTED NUT,3/8"-16, G5

NUT - 3/8" NC hex slotted (Used with A142092 stud)

1шт.

8

A58693

GEAR

- injection pump drive

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Gear to hub Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

10

92-6

LOCK WASHER,3/8"

3шт.

12

A62542

GEAR

ASSY - idler, with bushing

1шт.

13

A58690

SHAFT

- idler gear

1шт.

14

A58691

WASHER

- thrust, idler gear

1шт.

15

A58692

PLATE

- thrust, idler gear

1шт.

16

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- idler gear, 1/2 x 4-1/2" NC hex

1шт.
