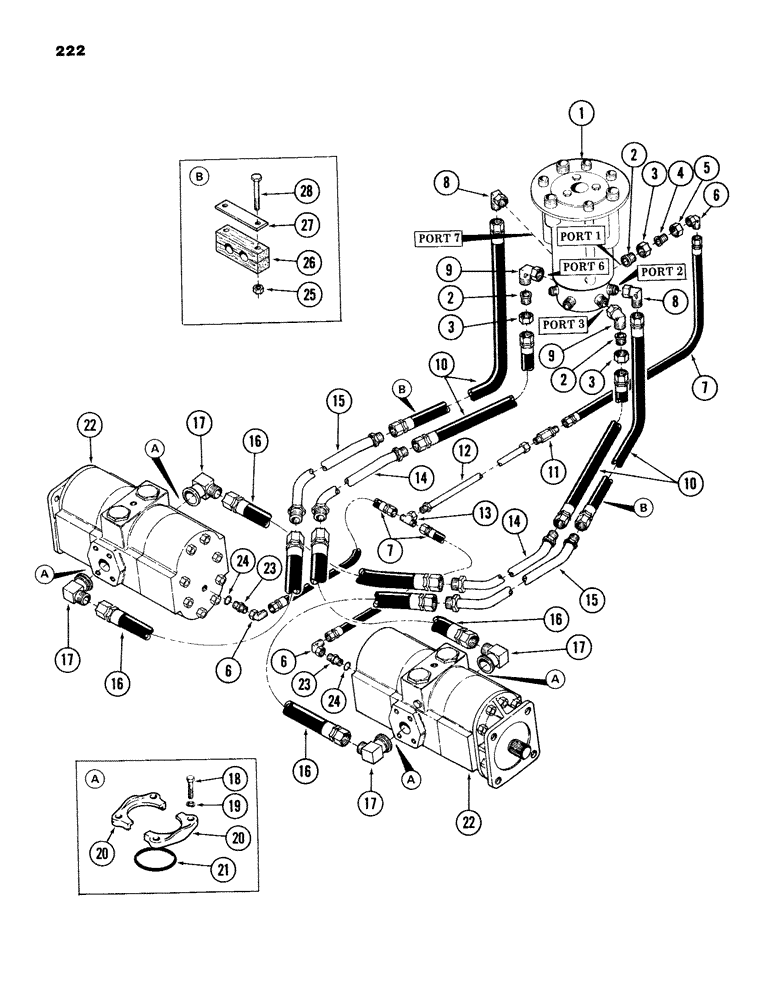

Запчасти Case 980B (222) - LOWER TRACK DRIVE MOTOR TUBING AND DRAIN, (USED ON UNITS PRIOR TO PIN 6204051) (04) - UNDERCARRIAGE

1

REF

INSTRUCTION

SWIVEL, 7-port hydraulic - (for breakdown, see Figure 324)

1шт.

2

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing - (1" x 3/4" tube) - 1-1/16" - 12 male - 37 degrees flared

3шт.

3

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, sleeve - (1" tube) - 1-5/16" - 12 female - 37 degrees flared

3шт.

4

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER, reducing - (3/4" x 1/2" tube) - 3/4" - 16 male - 37 degrees flared

1шт.

5

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT, sleeve - (3/4" tube) - 1-1/16" - 12 female - 37 degrees flared

1шт.

6

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 degrees swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

3шт.

7

D39245

HOSE

high pressure - 3/8" ID x 28" long with 3/4" - 16 female pressed on couplings)

3шт.

8

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

(3/4" tube) 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

2шт.

9

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degrees swivel - (1" tube) 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

2шт.

10

D44752

HOSE

high pressure - 3/4" ID x 28" long - (with 1-1/16" - 12 female pressed on couplings)

4шт.

11

REF

INSTRUCTION

VALVE, check - (for breakdown, see Figure 226)

1шт.

12

S229167

LINE, hydraulic

2шт.

13

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

1шт.

14

S232456

LINE, hydraulic 1" OD x 25.09, 2.55" L

2шт.

15

S232457

LINE, hydraulic 1" OD x 18.47, 2.26" L

2шт.

16

S8628

HOSE

high pressure - 1" ID x 36" long - (with 1-5/16" - 12 female pressed on couplings)

4шт.

Replaced by D44752

1шт.

17

S229717

LINE, hydraulic 1.25" OD x 2" L

4шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

20

A14157

FLANGE

CLAMP, split flange

8шт.

21

S6589

O-RING

"O" RING - 1.859" ID x 2.125" OD

4шт.

22

REF

INSTRUCTION

MOTOR, track drive - (for breakdown, see Figure 224)

2шт.

23

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - (1/2" tube) - 9/16" - 18 male x 3/4" - 16 male - 37 degrees flared, Includes: Ref. 24

2шт.

24

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

25

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

8шт.

26

S229162

CLAMP, wood block

4шт.

27

S103561

BAR

4шт.

28

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

8шт.
