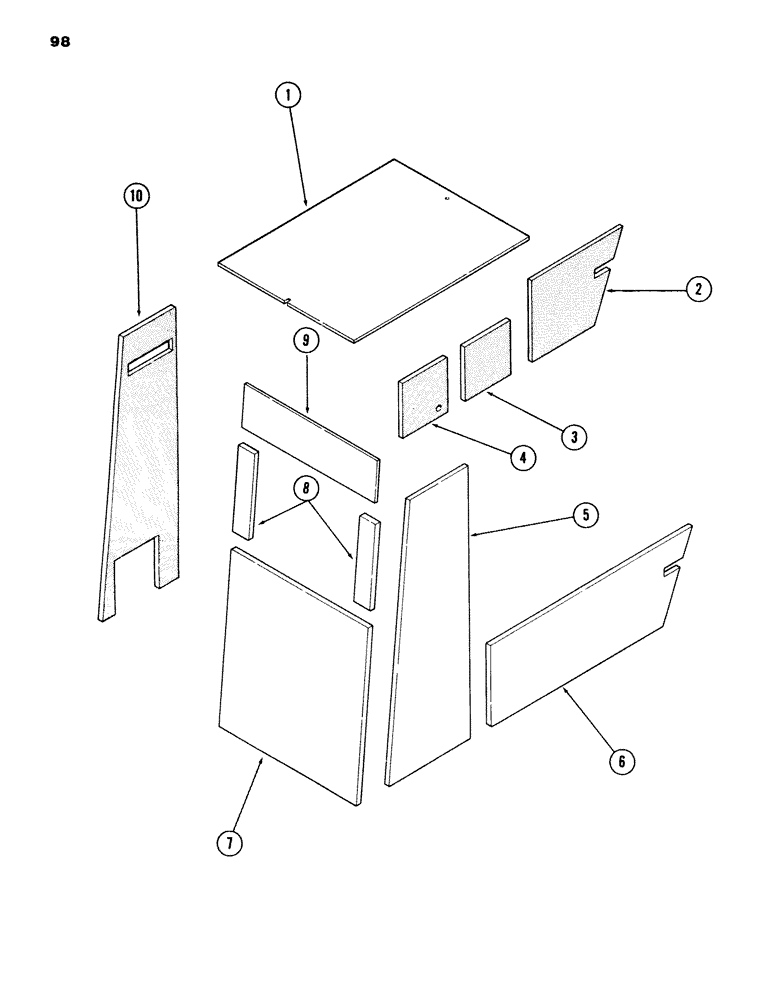

Запчасти Case 980B (098) - CAB AND ATTACHING PARTS, (INSULATION), (USED ON UNITS PRIOR TO PIN 6204070) (05) - UPPERSTRUCTURE CHASSIS

S955032

CAB

operator - (includes refs listed below and Figures 88 thru 98), Includes: Ref. 1 - 10

1шт.

1

S231409

SHROUD ASSY.

INSULATION - (TOP)

1шт.

2

S108110

SLEEVE CYLINDER

INSULATION - (LOWER LEFT FRONT)

1шт.

3

S108112

INSULATOR

INSULATION, door - (included in door assembly, ref 1 on Figure 92)

1шт.

4

S108113

INSULATOR

INSULATION, door - (included in door assembly, ref 1 on Figure 92)

1шт.

5

S108109

SLEEVE CYLINDER

INSULATION - (RIGHT REAR)

1шт.

6

S108108

SHROUD ASSY.

INSULATION - (LOWER RIGHT FRONT)

1шт.

7

S108105

SLEEVE CYLINDER

INSULATION - (LOWER REAR)

1шт.

8

S108107

SLEEVE CYLINDER

INSULATION - (LEFT and RIGHT REAR)

2шт.

9

S108106

SLEEVE CYLINDER

INSULATION - (REAR TOP)

1шт.

10

S108111

SLEEVE CYLINDER

INSULATION - (LEFT REAR)

1шт.
