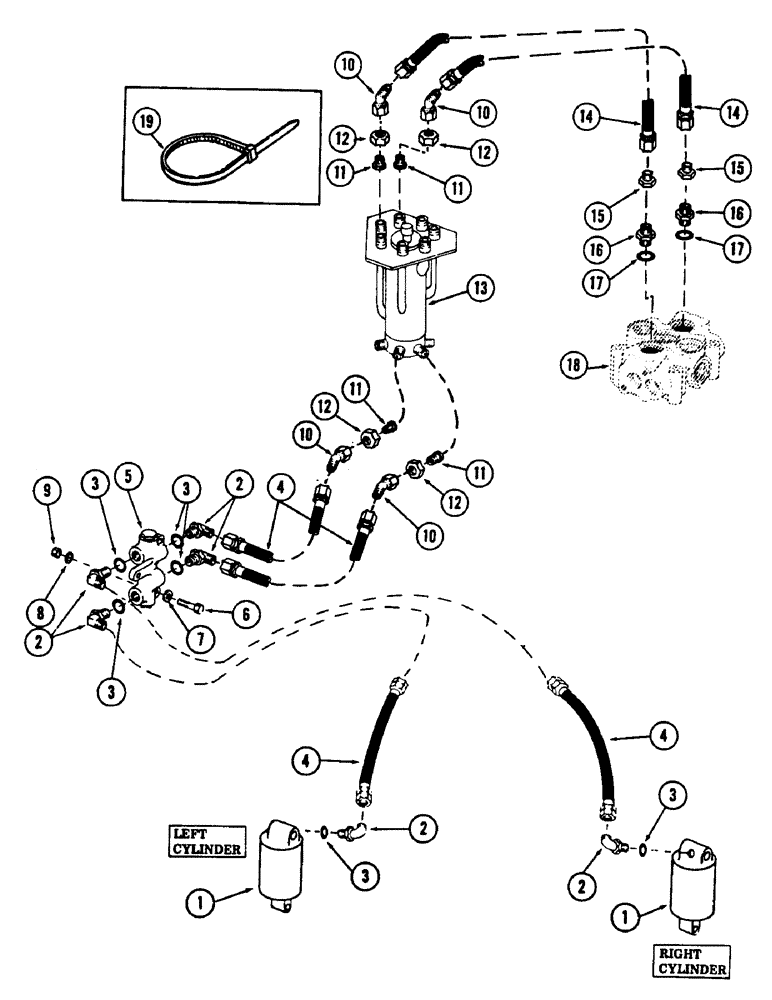

Запчасти Case 880B (164) - LEVELER TUBING (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CYLINDER, leveler - (For breakdown, see Figure 128)

2шт.

2

S7939

ELBOW

90 degrees adjustable - 3/4" - 16 male x 3/4" - 16 male, Includes: Ref. 3

6шт.

3

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING

6шт.

4

S11226

HOSE

high pressure - 3/8" ID x 20" long - (With 3/4" - 16 female pressed on couplings)

4шт.

5

REF

INSTRUCTION

VALVE, leveler check - (For breakdown, see Figure 166)

1шт.

6

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5 (Valve mounting)

2шт.

7

195-102

WASHER,1/4"

flat 1/4"

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

10

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

45 degrees swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

4шт.

11

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER, reducer - (3/4" to 1/2" tube reduction) - 3/4" - 16 male

4шт.

12

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT, tube - (3/4" tube) - 1-1/16" - 12 female

4шт.

13

REF

INSTRUCTION

SWIVEL, 7-port hydraulic - (For breakdown, see Figure 218)

1шт.

14

S11231

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 68" long - (With 3/4" - 16 female pressed on couplings)

2шт.

15

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER, reducer - (5/8" to 1/2" tube reduction) - 3/4" - 16 male

2шт.

16

S7985

CONNECTOR, ELEC

CONNECTOR - (Tube) - 1-5/16" - 12 male x 7/8" - 14 male - 37 degrees flared, Includes: Ref. 17

2шт.

17

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

2шт.

18

REF

INSTRUCTION

VALVE, 1 spool main hydraulic - (For breakdown, see Figure 168)

1шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE, cable

1шт.
