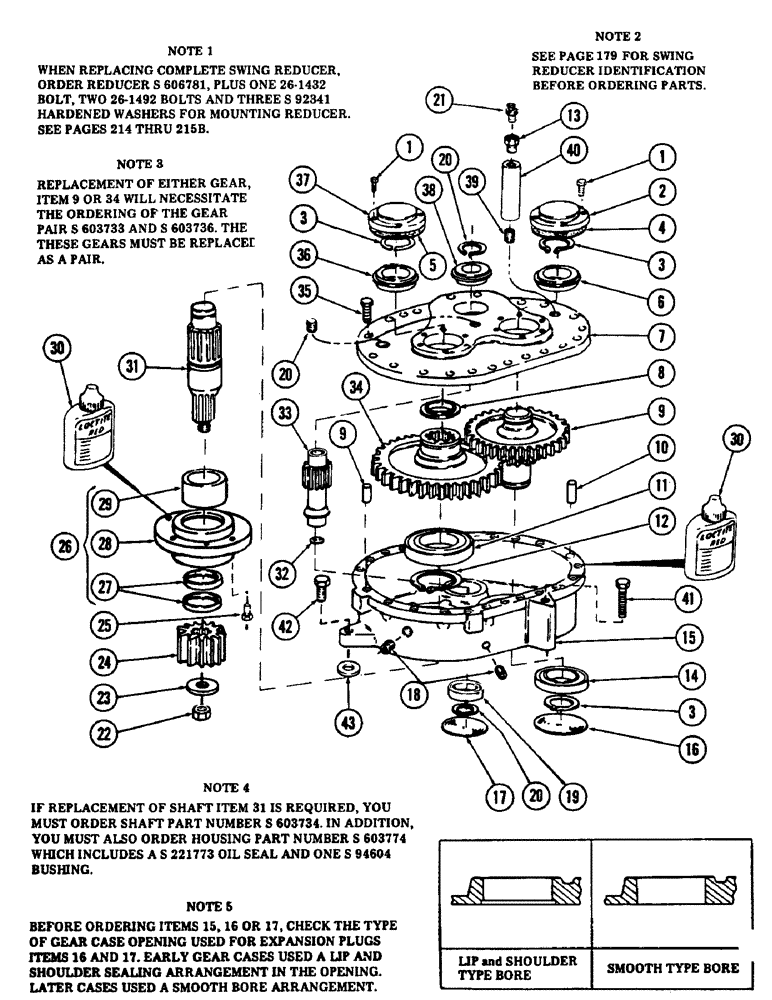

Запчасти Case 880B (180) - SWING REDUCER, (ORIGINAL EQUIPMENT) (07) - HYDRAULIC SYSTEM

NSS

NOT SOLD SEPARAT

REDUCER, swing, Includes: Ref. 1 - 42

1шт.

When replacing complete seing reducer, order reducer S606781, plus 1 - 26-1432 bolt, 2 - 26-1492 bolts and 3 - S92341 hardened washers for mounting reducer. See figure 214.

1шт.

See figure 179 for swing reducer identification before ordering parts.

1шт.

1

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

2

S402194

CAP

bearing

1шт.

3

A17903

SNAP RING,#156, Ext

RING, snap, #156, Ext

3шт.

4

S103261

GASKET

1шт.

S603774 has 1/2" holes old cover had 5/8" per tech book drill to 5/8" and use.

1шт.

5

S85842

GASKET

1шт.

6

S86268

BALL BEARING,40mm ID x 80mm OD x 18mm W

BEARING, ball - (Replaces S64314)

1шт.

7

S503551

COVER

gear case

1шт.

8

S214014

SPACER

, Serial Range: bearing-gear

1шт.

9

S603733

GEAR

cluster

1шт.

Replacement of either gear, ref 9 or 34 will necessitate the ordering of the gear pair S603733 and S603736. These gears must be replaced as a pair.

1шт.

10

S64319

CALIPER

DOWEL - 3/8" diameter

2шт.

11

S64321

BALL BEARING,70mm ID x 110mm OD x 20mm W

BEARING, ball

1шт.

12

A31227

SNAP RING,#275, Ext

Ring, Snap, #275, Ext

1шт.

13

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

- 3/8" NPT male x 1/8" NPT female mounting

2шт.

14

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

ball

1шт.

15

S613678

CASE

gear - (Used on later units with smooth bore opening)

1шт.

Before ordering refs 15, 16 or 17 check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

15a

S615133

PACKAGE

GEAR CASE KIT - (Required for replacement of early gear case S606331 with lip and shoulder sealing arrangement)

1шт.

Before ordering refs 15, 16 or 17 check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

S613678

CASE

gear

1шт.

S114620

PLUG

expansion

1шт.

S114619

PLUG

expansion

1шт.

221-843

PLUG,Hex Soc, 3/8"-18

pipe - 3/8" NPT - (Socket head)

2шт.

16

S114620

PLUG

expansion - (Supersedes 41-58) - (Used on later units smooth bore opening)

1шт.

Before ordering refs 15, 16 or 17 check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

41-58

PLUG,Exp, 3 3/4"

expanion - (Used on early units with lip and shoulder sealing arrangement

1шт.

Before ordering refs 15, 16 or 17 check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

17

S114619

PLUG

expansion - (Supersedes 41-48) - (Used on later units with smooth bore opening

1шт.

Before ordering refs 15, 16 or 17 check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

41-48

PLUG,Exp, 3"

expansion - (Used on early units with lip and shoulder sealing arrangement

1шт.

Before ordering refs 15, 16 or 17 check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

pipe - 3/8" NPT - (Socket head)

2шт.

19

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING, ball

1шт.

20

A7409

SNAP RING,#137, Ext

RING, snap, #137, Ext

2шт.

21

L33264

BREATHER

VENT, breather

1шт.

22

S64448

NUT

self locking

1шт.

23

S83676

SPACER

1шт.

24

S502648

PINION

output - 10 tooth

1шт.

25

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- 5/8" NC x 1-3/4" Gr 8

6шт.

26

S608050

HOUSING

Includes: Ref. 27 - 29

1шт.

27

S206136

OIL SEAL

oil

2шт.

28

NSS

NOT SOLD SEPARAT

SUPPORT, reducer

1шт.

29

S72921

BUSHING

1шт.

30

S96077

SEAL

- 10 CC bottle - (Red) - (Substitutes must not be used)

1шт.

31

NSS

NOT SOLD SEPARAT

SHAFT, output

1шт.

If replacement of shaft ref 31 is required, you must order shaft part number S603734. In addition, you must also order housing part number S603774 which includes a S221773 oil seal and 1 - S94604 bushing.

1шт.

32

41-1015

PLUG,Cup, 15/16"

expansion

1шт.

33

S37176

PINION

AND SHAFT, input

1шт.

34

S603736

GEAR

drive

1шт.

Replacement of either gear, ref 9 or 34 will necessitate the ordering of the gear pair S603733 and S603736. These gears must be replaced as a pair.

1шт.

35

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

23шт.

36

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

37

S214012

CAP

bearing

1шт.

38

S64312

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

BEARING, ball

1шт.

39

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - 3/8" NPT x 1" long

1шт.

40

S216625

TUBE,60" L

oil filler and breather

1шт.

41

13-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 5

- 7/8" NC x 5-1/2" Gr 5 - (Reducer mounting)

2шт.

42

13-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

(Reducer mounting) Hex, 7/8"-9 x 2", G5

1шт.

43

S107839

WASHER

flat (Used as shims) (See service bulletin no. 122 for installation instructions)

1шт.
