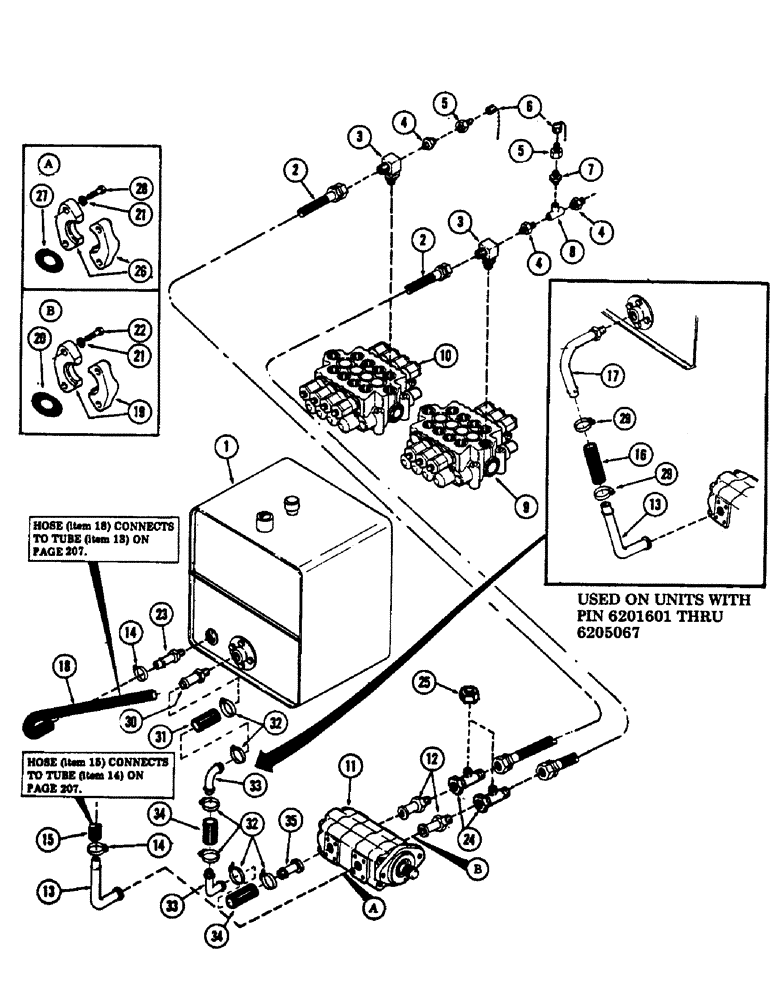

Запчасти Case 880B (194) - TANK TO PUMP TO MAIN VALVES TUBING (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

TANK, hydraulic oil (For breakdown, see Figure 192)

1шт.

2

S8628

HOSE

high pressure - 1" ID x 36" long (With 1-5/16" - 12 female pressed on couplings)

2шт.

3

S113093

ELBOW

90 degrees

2шт.

4

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, 1/4"-18 NPTF

3шт.

5

S206607

DISC

ONNECT, quick

2шт.

6

S206608

CAP

dust

2шт.

7

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (1/2" tube) - 3/4" - 16 male x 1/4" - 18 male - 37 degrees flared

1шт.

8

217-1161

TEE,1/4"-18 Female

pipe

1шт.

9

REF

INSTRUCTION

VALVE, 4-spool main control - (For breakdown, see Figure 198)

1шт.

10

REF

INSTRUCTION

VALVE, 4-spool main control - (For breakdown, see Figure 200)

1шт.

11

REF

INSTRUCTION

PUMP, main hydraulic - (For breakdown, see Figure 196)

1шт.

12

S232092

TUBE

hydraulic

2шт.

13

S236320

TUBE,1.5" OD x 6.86, 5.56" L

hydraulic - (Used on units with PIN 6201601 thru 6205067)

2шт.

14

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

tube

4шт.

15

S202866

HOSE

low pressure - (Bulk) - 1 piece - 1-1/2" ID x 20" long

1шт.

16

S202866

HOSE

low pressure - (Bulk) - 1 piece - 1-1/2" ID x 7" long - (Used on units with PIN 6201601 thru 6205067)

1шт.

17

S236312

TUBE, hydraulic - (Used on units with PIN 6201601 thru 6205067) 1.5" OD x 10.45, 5.56" L

1шт.

18

S202582

LINE

HOSE, low pressure - (Bulk) - 1 piece - 1-1/4" ID x 38" long

1шт.

19

A12306

FLANGE

CLAMP, split flange

4шт.

20

S5812

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

"O" RING

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

22

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

23

217-161

FITTING,1-1/4" Hose Barb x 1" Male NPTF

INSERT, hose

1шт.

24

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

2шт.

25

218-758

CAP,37 Degree, 1 5/16"-12

2шт.

26

A14157

FLANGE

CLAMP, split flange

4шт.

27

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING

2шт.

28

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

29

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

tube - (Used on units with PIN 6201601 thru 6205067)

2шт.

30

S220562

TUBE, hydraulic - (Used on units with PIN 6205068 and after) 1.5" OD x 2" L

1шт.

31

S202866

HOSE

low pressure - (Bulk) - 1 piece - 1-1/2" ID x 9" long - (Used on units with PIN 6205068 and after)

1шт.

32

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

tube - (Used on units with PIN 6205068 and after)

6шт.

33

S239124

TUBE, hydraulic - (Used on units with PIN 6205068 and after)

2шт.

34

S202866

HOSE

low pressure - (Bulk) - 1 piece - 1-1/2" ID x 6" long - (Used on units with PIN 6205068 and after)

2шт.

35

S239123

TUBE, hydraulic - (Used on units with PIN 6205068 and after) 1.5" OD x 2.62" L

1шт.
