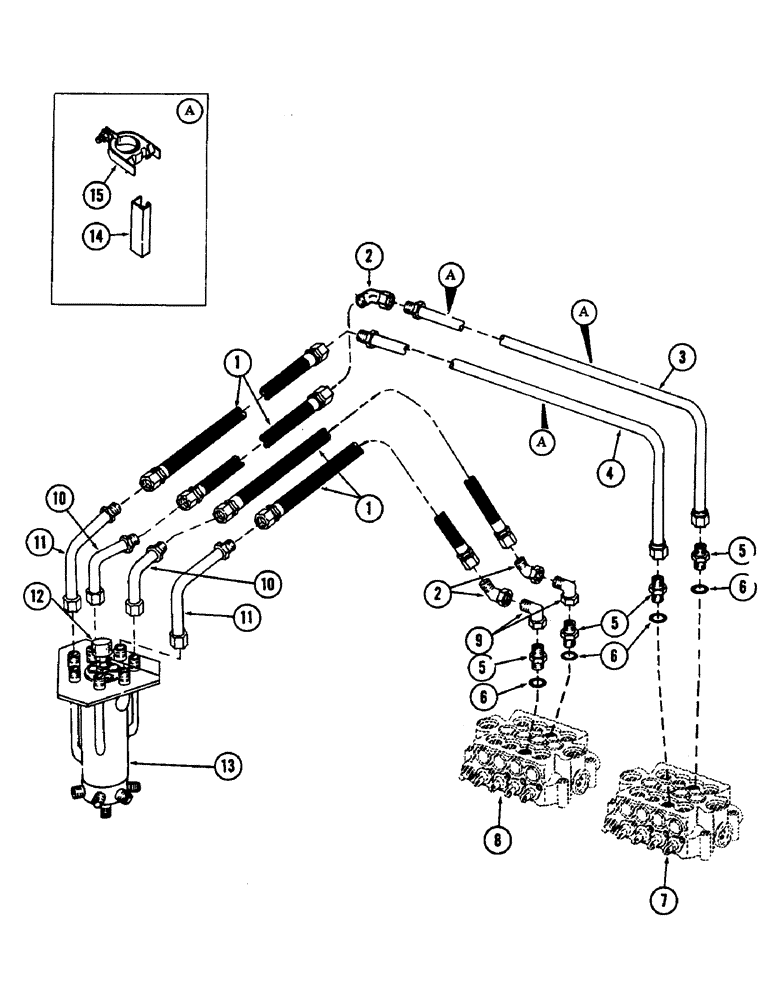

Запчасти Case 880B (216) - MAIN VALVE TO SWIVEL TUBING (07) - HYDRAULIC SYSTEM

1

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

2

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

45 degrees swivel - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

3шт.

3

S502092

TUBE,1.25" OD x 27, 12.1" L

hydraulic

1шт.

4

S502091

TUBE, hydraulic 1.25" OD x 44.38, 13.6" L

1шт.

5

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared, Includes: Ref. 6

4шт.

6

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

4шт.

7

REF

INSTRUCTION

VALVE, 4-spool main hydraulic - (For breakdown, see Figure 200)

1шт.

8

REF

INSTRUCTION

VALVE, 4-spool main hydraulic - (For breakdown, see Figure 198)

1шт.

9

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degrees swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

2шт.

10

S208825

TUBE,1" OD x 3.83, 4.3" L

hydraulic

2шт.

11

S208826

TUBE,1" OD x 6.12, 4.35" L

hydraulic

2шт.

12

REF

INSTRUCTION

SWIVEL, inner brake - (For breakdown, see Figure 154)

1шт.

13

REF

INSTRUCTION

SWIVEL, 7-port hydraulic - (For breakdown, see Figure 218)

1шт.

14

S98413

SUPPORT

CHANNEL

2шт.

15

S93266

CLAMP

tube

4шт.
