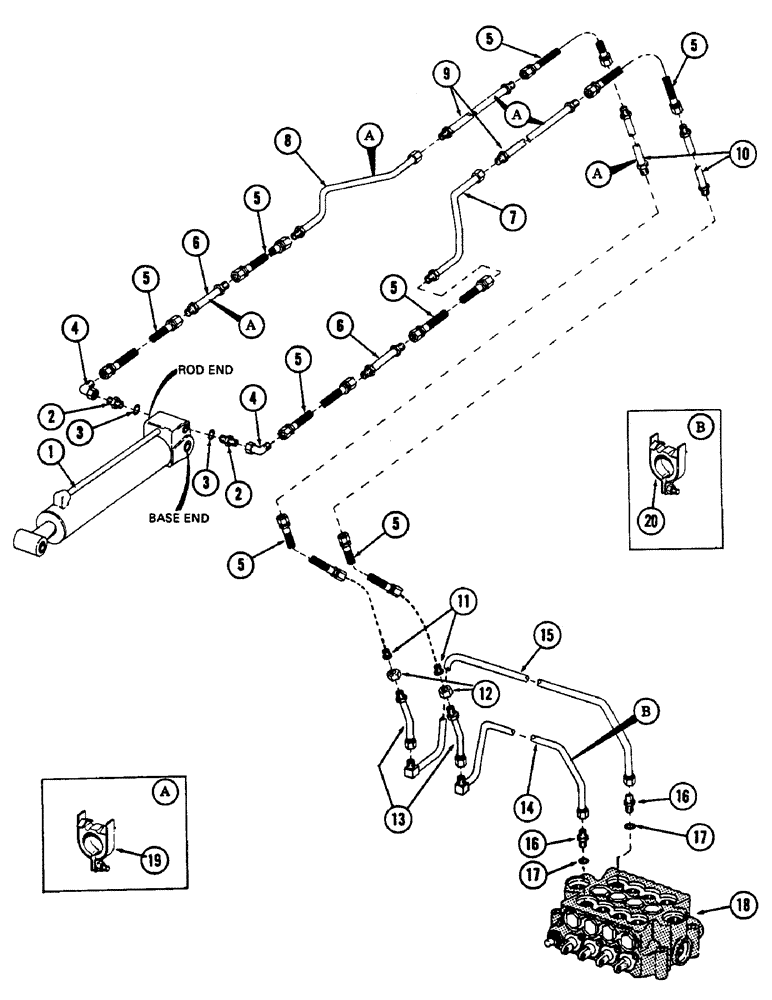

Запчасти Case 880B (248) - "E" BOOM TOOL CYLINDER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CYLINDER, tool - (For breakdown, see Figure 252)

1шт.

2

S7968

CONNECTOR, ELEC

CONNECTOR - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degrees flared, Includes: Ref. 3

2шт.

3

S6065

RING

"O" RING

2шт.

4

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

90 degrees swivel - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 female - 37 degrees flared

2шт.

5

S15468

HOSE

high pressure - 3/4" ID x 28" long - (With 1-1/16" - 12 female pressed on couplings)

8шт.

6

S211970

LINE,1" OD x 20.6, 1.75" L

TUBE, hydraulic (Replaces S211975)

2шт.

TUBE - 20.60 INCHES.

1шт.

7

S502507

LINE,1" OD

TUBE, hydraulic

1шт.

8

S502506

LINE,1" OD

TUBE, hydraulic

1шт.

9

S208722

LINE,1" OD x 116" L

TUBE, hydraulic

2шт.

10

S207637

LINE,1" OD x 61.12" L

TUBE, hydraulic

2шт.

11

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing - (1" to 3/4" tube reduction) - 1-1/16" - 12 male, Includes: Ref. 12

2шт.

12

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, sleeve - (1" tube) - 1-5/16" - 12 female

2шт.

13

S211849

LINE,1.25" OD

TUBE, hydraulic

2шт.

14

S502080

PIPE,1.25" OD

TUBE, hydraulic

1шт.

15

S502081

PIPE,1.25" OD

TUBE, hydraulic

1шт.

16

S7972

CONNECTOR, ELEC

CONNENCTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared, Includes: Ref. 17

2шт.

17

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

2шт.

18

REF

INSTRUCTION

VALVE, 4-spool main hydraulic - (For breakdown, see Figure 200)

1шт.

19

S91602

CLAMP

tube

1шт.

20

S93266

CLAMP

tube

2шт.
