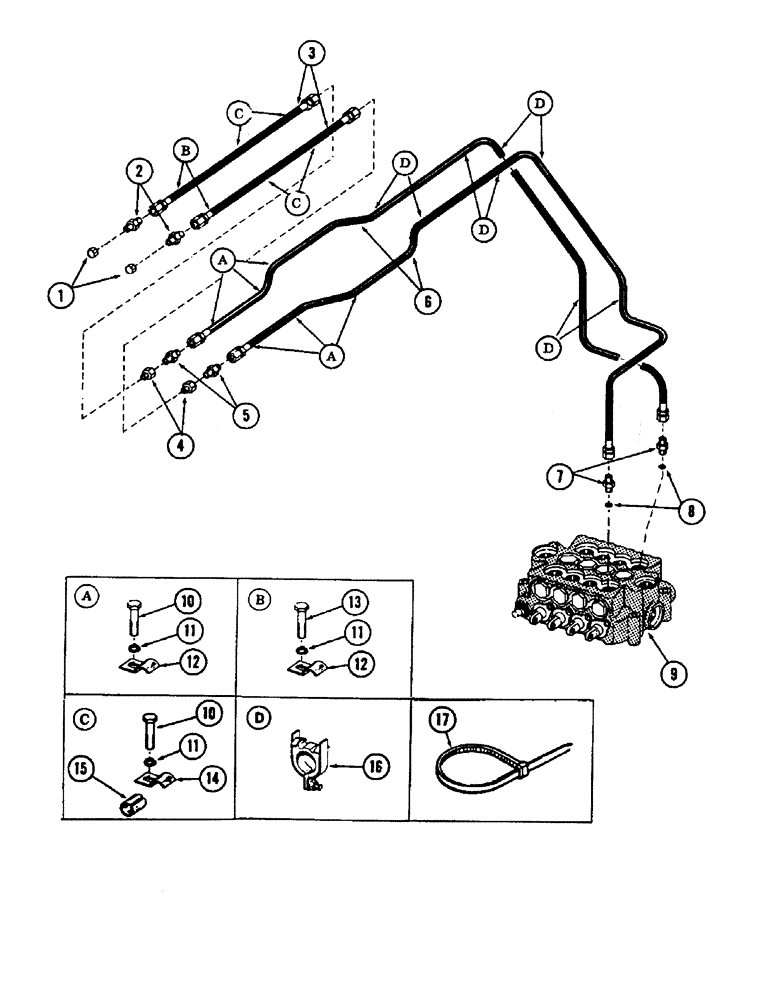

Запчасти Case 880B (262) - "Y" BOOM AUXILIARY TUBING (07) - HYDRAULIC SYSTEM

1

218-755

CAP,37 Degree, 3/4"-16

1/2" tube

2шт.

2

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male

2шт.

3

S94824

HOSE

HOSE, high pressure - 3/8" ID x 92 - 1/2" long

2шт.

4

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER, reducing - (5/8" x 1/2" reduction) - 3/4" - 16 male x 7/8" - 14 female

2шт.

5

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION - (5/8" tube) - 7/8" - 14 male x 7/8" - 14 male

2шт.

6

S109751

SPARE PART HOSE, high pressure - 1/2" ID x 342" long

2шт.

7

S7985

CONNECTOR, ELEC

CONNECTOR CONNECTOR - 1 - 5/16" - 12 male x 7/8" - 14 male - 37 degrees flared, Includes: Ref. 8

2шт.

8

S6069

O-RING,1.171" ID x 0.116" Width

"O" ring

2шт.

9

REF

INSTRUCTION

VALVE, 4-spool main hydraulic - (for breakdown, see figure 200)

1шт.

10

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

11

192-23

LOCK WASHER,1/2"

1шт.

12

S81012

SPARE PART CLAMP, tube

1шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

14

S77324

CLAMP

CLAMP, tube

1шт.

15

S75792

RING

RING, compression

1шт.

16

S91602

CLAMP

CLAMP, tube

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP TIE, cable - (hose to tube line on main boom)

4шт.

A21571

HOSE

HOSE, bulk - 3/8" ID x 25' requires 24" to make S11236. 90 - 1/2" to make S94824

1шт.

220-212

FITTING

COUPLING, reusable - (used to make S94824 or S11236 hose)

1шт.

A22797

SPARE PART HOSE, bulk - 1/2" ID x 50' requires 340" to make S109751 hose

1шт.

220-204

FITTING

COUPLING, reuseable - used to make S109751 hose

1шт.
