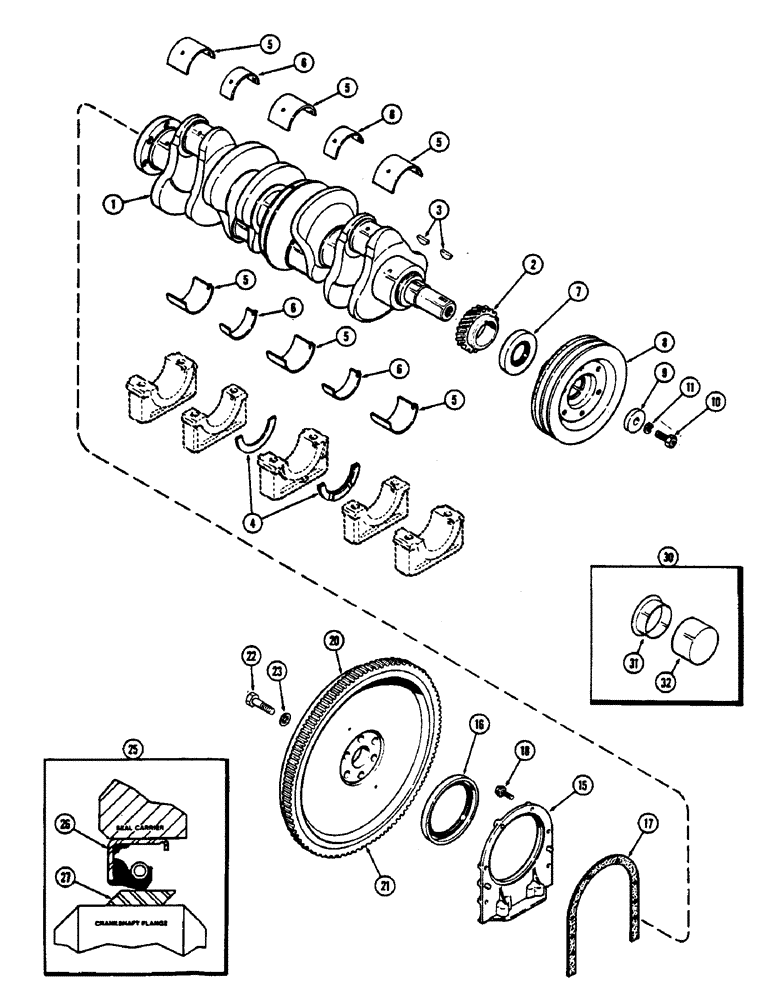

Запчасти Case 880B (020) - CRANKSHAFT AND FLYWHEEL, 336BDT DIESEL ENGINE (01) - ENGINE

1

A153831

CRANKSHAFT

ASSEMBLY - engine, Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

2шт.

4

A58565

WASHER

- thrust, crankshaft (Standard), 0.185" thick (4.70 MM)

2шт.

4

A42447

WASHER

- thrust, crankshaft (Oversize) 0.191" thick (4.85 MM)

2шт.

5

A43090

BEARING LINER

LINER - main bearing, wide (Standard) (Set of 2)

3шт.

5

A43124

LINING

LINER - main bearing, wide, -0.002" (-0.05 MM) (Set of 2)

3шт.

5

A43125

CRANKSHAFT BEARING

LINER - main bearing, wide, -0.010" (-0.25 MM) (Set of 2)

3шт.

5

A43126

LINING

LINER - main bearing, wide, -0.020" (-0.51 MM) (Set of 2)

3шт.

5

A43127

LINING

LINER - main bearing, wide, -0.030" (-0.76 MM) (Set of 2)

3шт.

6

A43089

BEARING LINER

LINER - main bearing, narrow (Standard) (Set of 2)

2шт.

6

A43120

LINING

LINER - main bearing, narrow, -0.002" (-0.05 MM) (Set of 2)

2шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER - main bearing, narrow, -0.010" (-0.25 MM) (Set of 2)

2шт.

6

A41905

LINING

LINER - main bearing, narrow, -0.020" (-0.51 MM) (Set of 2)

2шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER - main bearing, narrow, -0.030" (-0.76 MM) (Set of 2)

2шт.

7

A62049

OIL SEAL

- oil, front, 2-5/8" x 3-5/8" x 1/2" (66.68 x 92.08 x 12.70 MM)

1шт.

8

A66621

PULLEY

- fan drive

1шт.

9

A27903

WASHER

- drive pulley

1шт.

10

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

A57457

RETAINER

- crankshaft rear oil seal

1шт.

16

A62050

OIL SEAL

- oil, rear, 4-3/4" x 5-3/4" x 1/2" (120.65 x 146.05 x 12.70 MM) (See reference 25)

1шт.

17

A32830

GASKET

- retainer

1шт.

18

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - 3/8" x 1-1/4" NC hex Sems

6шт.

20

A65049

FLYWHEEL

ASSEMBLY, Includes: Ref. 21

1шт.

SHOULD READ A58683 PER TS 70-82

1шт.

21

A27920

GEAR

- ring (137 teeth)

1шт.

22

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- 5/8" x 1-1/2" NC hex (Grade 8)

6шт.

23

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 21/32" x 1" x 1/8" (16.66 x 25.40 x 3.04 MM)

6шт.

25

A43194

KIT

- crankshaft wear seal, rear, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

oil, rear, 4-3/4" x 5-3/4" x 1/2" (120.65 x 146.05 x 12.70 MM), wear seal kit

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE - wear, 4-3/4" x 4-7/8" x 9/16" (120.65 x 123.83 x 14.29 MM), seal kit

1шт.

30

A154684

SLEEVE

KIT - crankshaft wear sleeve, front, seal, Includes: Ref. 31 and 32

1шт.

31

NSS

NOT SOLD SEPARAT

SLEEVE - wear seal kit

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation, wear seal kit

1шт.
