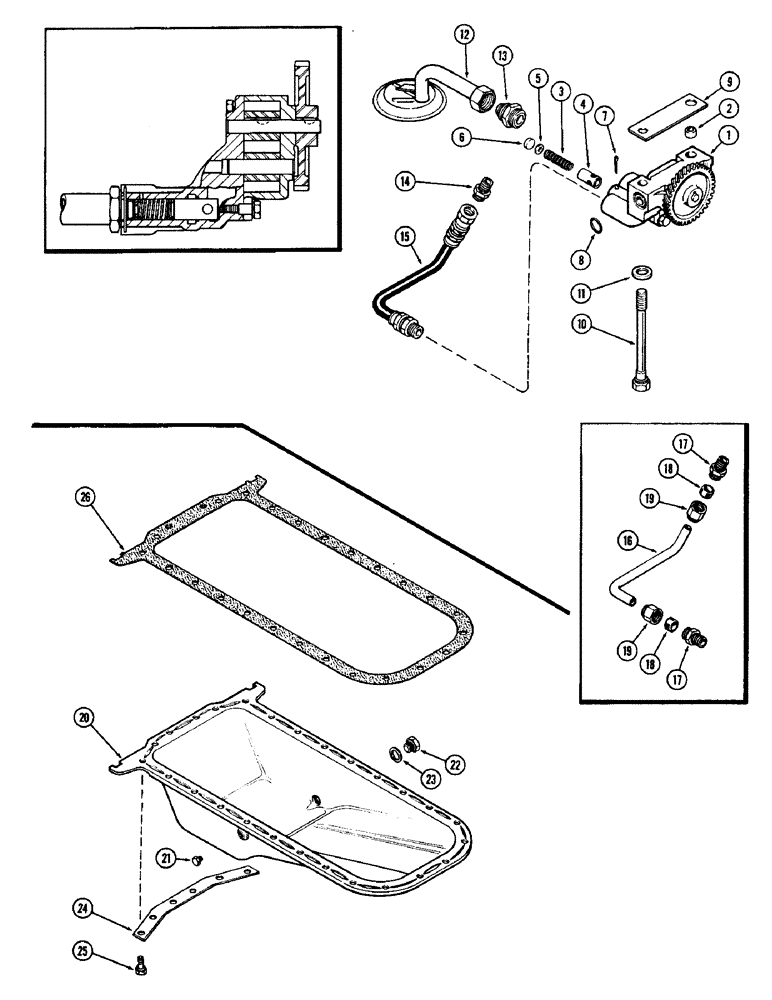

Запчасти Case 880B (026) - OIL PUMP & OIL PAN, 336BDT DIESEL ENGINE (01) - ENGINE

1

A153000

PUMP

ASSEMBLY - oil, Includes: Ref. 2 - 7

1шт.

2

A58915

SLEEVE

- pump locating

1шт.

3

A151960

SPRING

- relief valve

1шт.

4

A65083

VALVE

- relief

1шт.

5

A57470

WASHER

- 13/32" x 11/16" x 1/16" (10.32 x 17.46 x 1.59 MM)

1шт.

6

41-1011

PLUG,Cup, 11/16"

- relief valve, 11/16" cup type (17.46 MM)

1шт.

7

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

Pin, Split (Cotter), 3/32" x 2"

1шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - pump to block, 1" x 1-1/8" x 1/16" (25.40 x 28.58 x 1.59 MM)

1шт.

9

A58859

SHIM,.005" Thk

Pump to brg. cap (0.127 mm) .005" Thk

1шт.

10

A66949

STEP BOLT

BOLT - 5/8" x 7-1/4" NC hex special

2шт.

11

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 21/32" x 1" x 1/8" (16.66 x 25.40 x 3.04 MM)

2шт.

12

A143671

SCREEN

TUBE - suction, with screen

1шт.

13

A142004

CONNECTOR, ELEC

CONNECTOR - suction, Serial Range: tube-pump

1шт.

14

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - hose to block, 5/8" tube x 7/8" - 14 PT

1шт.

15

A155196

HOSE,0.50" ID x 19.00"

- Oil pump to Block (With 218-445 replaces A143670) 0.50" ID x 19.00"

1шт.

16

A143670

TUBE

- oil pump to block (Use A155196 and 218-445)

1шт.

17

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSEMBLY - tube (Used with A143670 tube), Includes: Ref. 18 and 19

1шт.

18

222-106

SLEEVE,5/8" Tube

- for 5/8" Tube

1шт.

19

222-116

TUBE NUT,1"-18

NUT - for 5/8" tube

1шт.

20

A62711

PAN

ASSEMBLY - oil, Includes: Ref. 21

1шт.

21

221-664

PLUG,Hex Hd, 1/2"-14

- 1/2" PT hex head, oil pan

1шт.

22

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

23

A27968

RING

- drain plug, oil pan

1шт.

24

A58932

STRAP

- mounting, oil pan

1шт.

25

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT - 3/8" x 7/8" NC hex Sems, oil pan

24шт.

26

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See figure 29A)

1шт.
