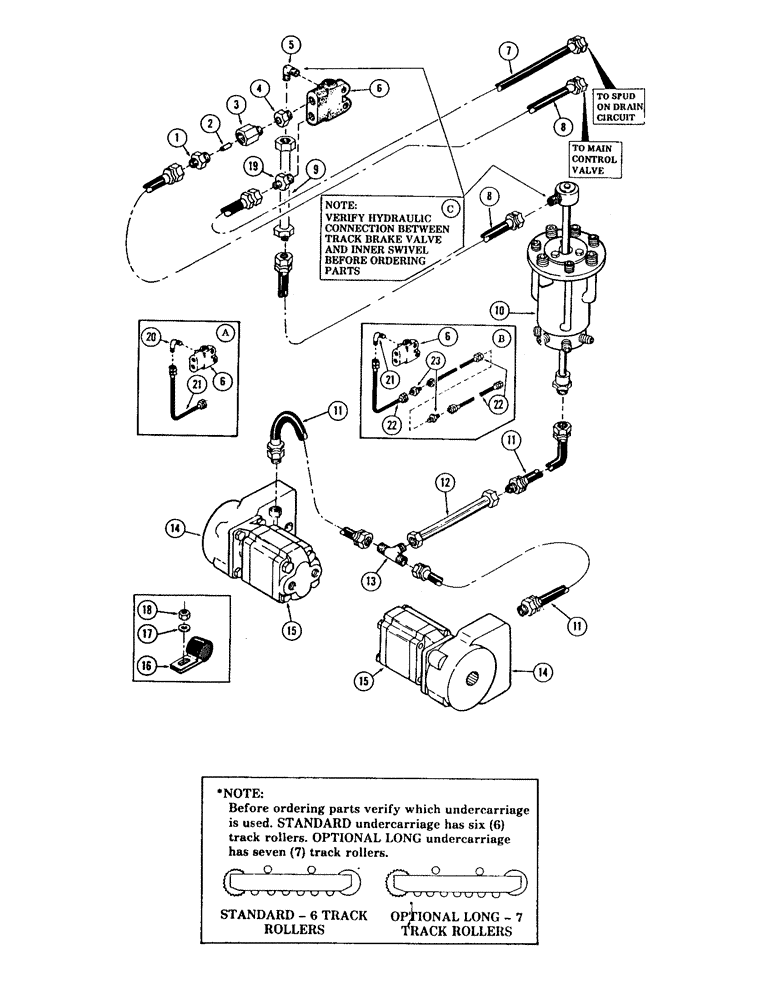

Запчасти Case 880B (150) - TRACK BRAKE TUBING, * (USED ON UNITS WITH STANDARD UNDERCARRIAGE) (04) - UNDERCARRIAGE

1

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (1/2" tube) - 3/4" - 16 male x 3/4" - 18 male - 37 degrees flared

1шт.

2

S89669

VALVE

REGULATOR, flow

1шт.

3

S78869

VALVE

check

1шт.

4

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

pipe - 1/2" - 14 NPT x 3/8" - 18 NPT female

1шт.

5

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

90 degrees - (1/2" tube) - 1/2" NPT male x 3/4" - 16 male - 37 degrees flared

1шт.

6

REF

INSTRUCTION

VALVE, track brake - (For breakdown, see Figure 148)

1шт.

7

S61247

HOSE

high pressure - 3/8" ID x 60" long - (With 3/4" - 16 female pressed on couplings)

1шт.

8

S11231

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 68" long - (With 3/4" - 16 female pressed on couplings)

2шт.

9

S238043

TUBE ASSY.

TUBE, hydraulic

1шт.

10

REF

INSTRUCTION

SWIVEL, 7-port hydraulic - (For breakdown, see Figure 218)

1шт.

11

S401727

HOSE ASSY.

HOSE, high pressure - 1/4" ID x 30" long - (With 7/16" - 20 female pressed on couplings)

1шт.

12

S404530

LINE,1/4" OD x 3.5" L

TUBE, hydraulic

1шт.

13

218-591

TEE,7/16"-20, 37 Degree

- 7/16" male x 7/16" male x 7/16" male

1шт.

14

REF

INSTRUCTION

BRAKE, track drive - (For breakdown, see figure 128)

2шт.

15

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see figure 186)

2шт.

16

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3шт.

17

195-103

WASHER,5/16"

flat - 3/8"

3шт.

18

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

3шт.

19

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - (1/2" tube) - 3/4" - 16 male x 1/2" - 14 male - 37 degrees flared

1шт.

20

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

90 degreees - (3/8" tube) - 1/2" NPT male x 9/16" - 18 male - 37 degrees flared

1шт.

21

S227397

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 70" long - (With 9/16" - 18 female pressed on couplings)

1шт.

22

S99421

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 23" long - (With 9/16" - 18 female pressed on couplings)

2шт.

23

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

2шт.
