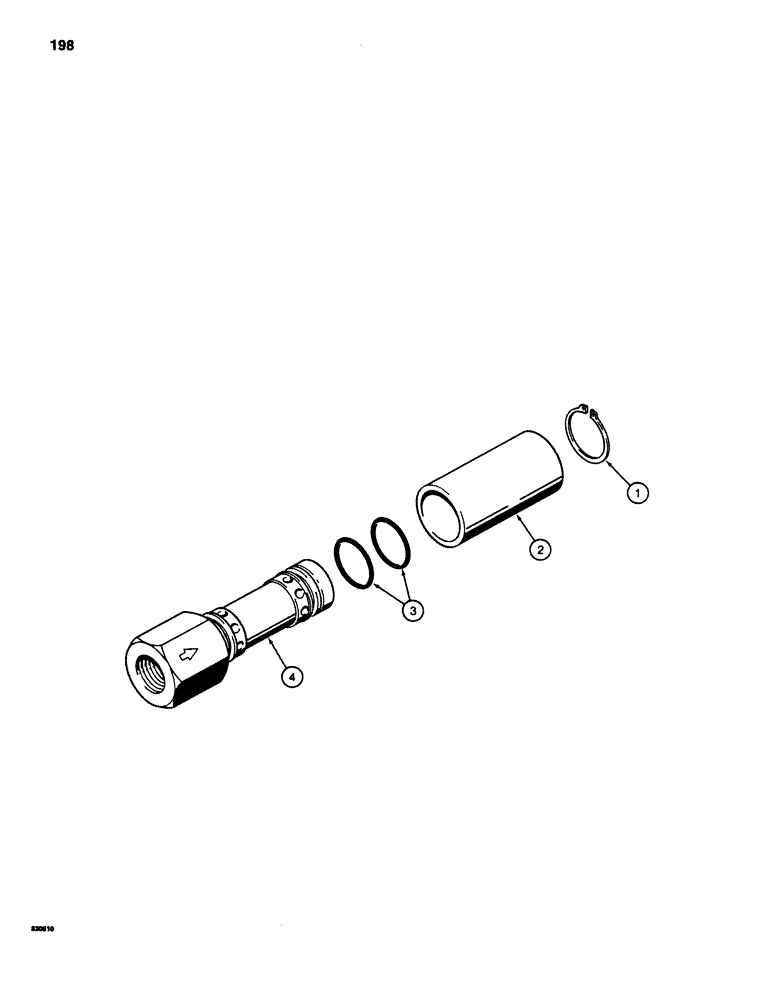

(198) - T54632 WRIST-O-TWIST FLOW CONTROL VALVE

Запчасти Case 880D (198) - T54632 WRIST-O-TWIST FLOW CONTROL VALVE (07) - HYDRAULIC SYSTEM

Схема запчастей Case 880D - (198) - T54632 WRIST-O-TWIST FLOW CONTROL VALVE (07) - HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

T54632

VALVE

CONTROL VALVE ASSEMBLY - flow, complete, Includes: Ref. 1 - 4

2шт.

1

NSS

NOT SOLD SEPARAT

SNAP RING - outer

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - outer

1шт.

3

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- cartridge

2шт.

4

NSS

NOT SOLD SEPARAT

CARTRIDGE ASSEMBLY - inner

1шт.
