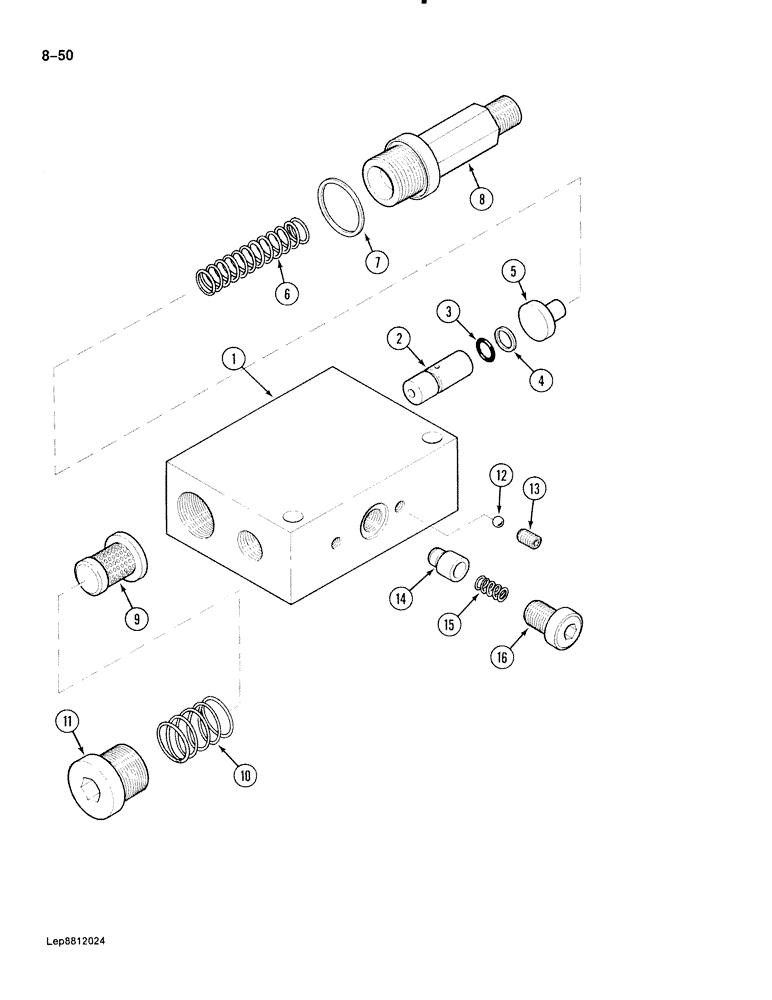

Запчасти Case 888 (8-050) - ANTI-SURGE VALVE, P.I.N. FROM 15263 TO 15313 (08) - HYDRAULICS

P4043379

SHIN

ANTI SURGE VALVE ASSEMBLY - control, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

3

P1230429

O-RING

- spool

1шт.

4

P1245260

BACK-UP RING

BACKUP RING - spool O-ring

1шт.

5

P6027871

TAPPET

SEAT - spring

1шт.

6

P1038257

SPRING

- spool

1шт.

7

P2230417

SEAL

O-RING - adapter

1шт.

8

P5140377

CAP

ADAPTER - block

1шт.

9

P1950574

CARTRIDGE

ELEMENT - filter, leak return

1шт.

10

P1038255

SPRING

- element

1шт.

11

P2537413

PLUG

- element

1шт.

P1145268

SEAL

- plug

1шт.

12

P31002

BALL

- body

2шт.

13

P32813

SCREW

- body

2шт.

14

P4343309

VALVE POPPET

POPPET - valve

1шт.

15

P1038256

SPRING

- poppet

1шт.

16

P3037489

PLUG

- body

1шт.

P2230426

SEAL

- plug

1шт.
