(8-056) - HYDRAULIC OIL FILTER, P.I.N. FROM 74362 AND AFTER

Запчасти Case 888 (8-056) - HYDRAULIC OIL FILTER, P.I.N. FROM 74362 AND AFTER (08) - HYDRAULICS

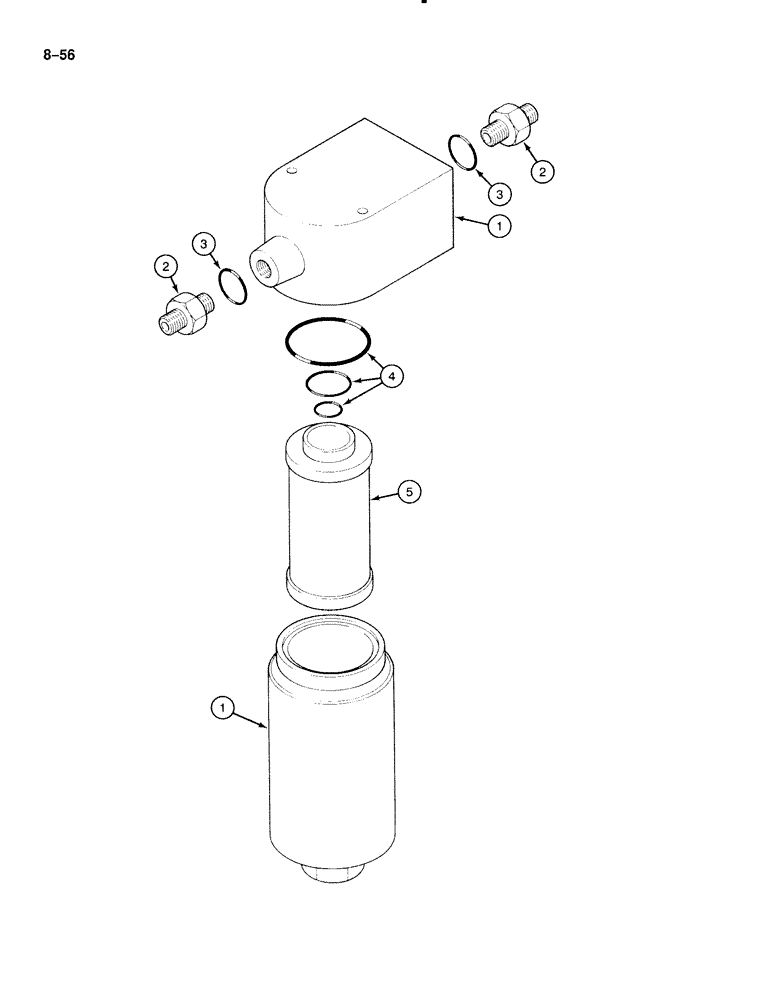

Схема запчастей Case 888 - (8-056) - HYDRAULIC OIL FILTER, P.I.N. FROM 74362 AND AFTER (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P1950599

FILTER, ENGINE OIL

FILTER ASSEMBLY - pressure circuit, Includes: Ref. 1

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - filter

1шт.

2

P4237573

FITTING

ADAPTER - straight, Includes: Ref. 3

2шт.

3

P945293

WASHER, SEALING

SEAL - adapter

1шт.

4

P5449690

SEAL PACKAGE

KIT - seal

1шт.

5

P2950510

CARTRIDGE

ELEMENT - oil filter

1шт.

P850589

FILTER CARTRIDGE

hyd. oil, spin on type, used in kit P5044461

1шт.
