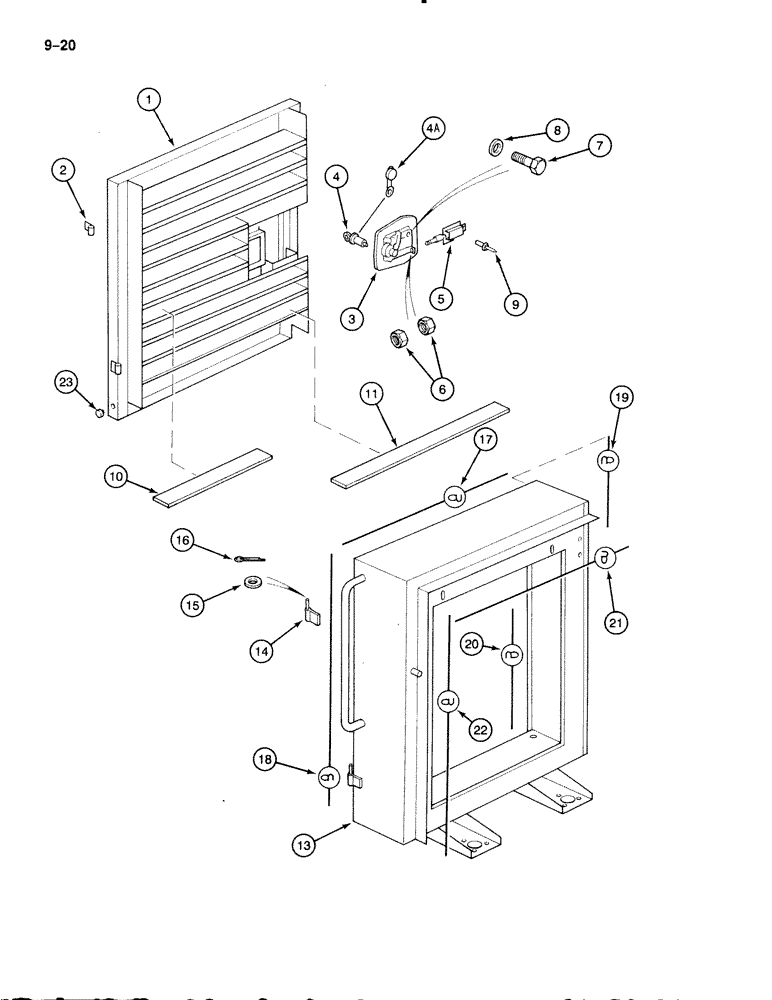

Запчасти Case 888 (9-020) - GRILLE AND RADIATOR SHROUD, P.I.N. FROM 74168 TO 74418, 15201 AND AFTER (09) - CHASSIS

1

P8143817

DOOR

GRILLE - radiator guard, Include: Ref. 2

1шт.

Ref #1 - Adopt P2020789 Seal for this grille

1шт.

2

P36667

FENDER

HINGE - grille

2шт.

P852092

LOCK ASSY

LOCK AND LATCH ASSEMBLY - compartment door, Include: Ref. 3 - 5

1шт.

3

P852096

HANDLE

AND LOCK ASSEMBLY - door, Include: Ref. 4 and 5

1шт.

4

P152083

LOCK, CYLINDER

CYLINDER - lock

1шт.

4a

P2340499

DOOR COVER

PROTECTOR - cylinder

1шт.

5

P1352011

END FITTING

LATCH AND ROD ASSEMBLY - door lock

1шт.

6

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

7

P32621

SCREW

BOLT - hex, 6 mm x 16 mm

4шт.

8

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

9

P35413

RIVET

POP RIVET - 8 mm x 16.5 mm

4шт.

10

P3841489

FOAM

PAD - grille, short

3шт.

11

P3841490

FOAM

PAD - grille, long

6шт.

13

P8043834

ELECTRICAL CABINET

SHROUD - radiator, Include: Ref. 14

1шт.

14

P36666

FIXED HINGE

HINGE - shroud

2шт.

15

P34607

WASHER

- flat, 6 mm

2шт.

16

P35510

SPLIT PIN

COTTER PIN - 2 mm x 20 mm

2шт.

17

REF

INSTRUCTION

SEAL - shroud, outer, upper, 27-1/2" long, cut from P1303155

1шт.

18

REF

INSTRUCTION

SEAL - shroud, outer, side, 29-7/8" long, cut from P1303155

1шт.

19

REF

INSTRUCTION

SEAL - shroud, outer, side, 15-1/2" long, cut from P1303155

1шт.

20

REF

INSTRUCTION

SEAL - shroud, outer, side, 14-1/4" long, cut from P1303155

1шт.

21

REF

INSTRUCTION

SEAL - shroud, outer, upper, 27-3/8" long, cut from P1303155

1шт.

22

REF

INSTRUCTION

SEAL - shroud, outer, side, 28-3/4" long, cut from P1303155

1шт.

23

P41467

STOP

PLUG - rubber

2шт.
