(9-102) - BACKHOE BUCKET, BACKHOE BUCKET 23-5/8" WIDE, BACKHOE BUCKET - 29-1/2" WIDE

Запчасти Case 888 (9-102) - BACKHOE BUCKET, BACKHOE BUCKET 23-5/8" WIDE, BACKHOE BUCKET - 29-1/2" WIDE (09) - CHASSIS

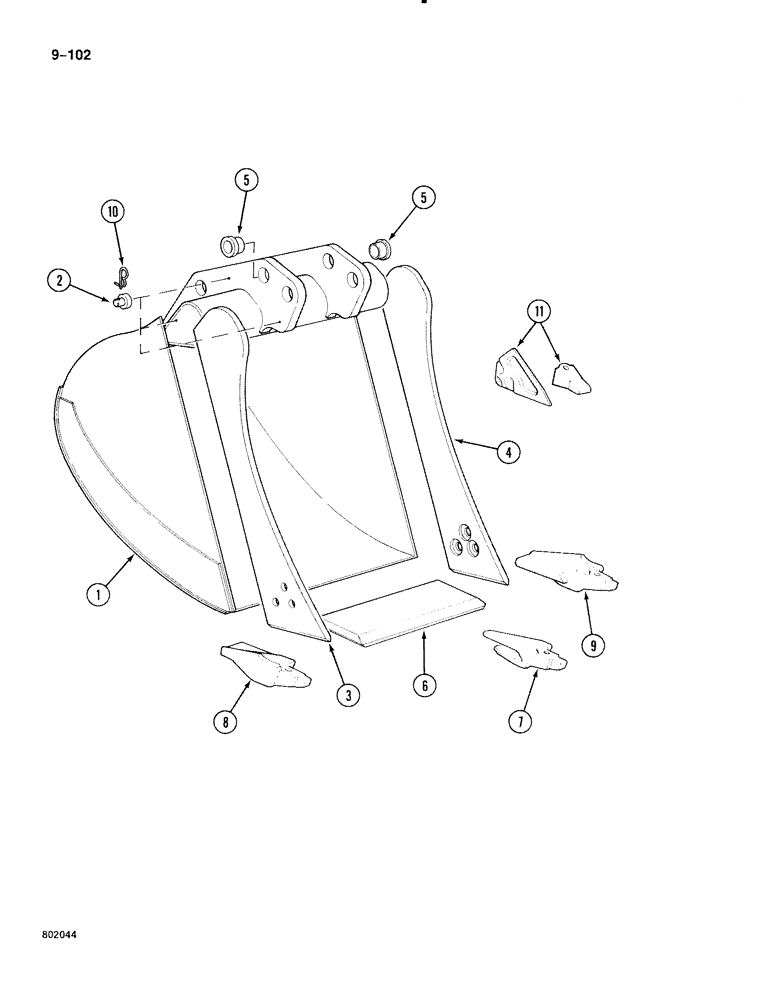

Схема запчастей Case 888 - (9-102) - BACKHOE BUCKET, BACKHOE BUCKET 23-5/8" WIDE, BACKHOE BUCKET - 29-1/2" WIDE (09) - CHASSIS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P1755562

BACKHOE BUCKET ASSEMBLY - excavator, 23-5/8" wide, Include: Ref. 1 - 10

1шт.

Available from wholegoods department

1шт.

2

NSS

NOT SOLD SEPARAT

BACKHOE BUCKET - excavator

1шт.

3

P4724244

STIFFENER

CUTTING EDGE - side left-hand

1шт.

4

P4724245

STIFFENER

CUTTING EDGE - side right-hand

1шт.

5

P5428744

BUSHING

- bucket pin, at arm and, Serial Range: link-bucket

6шт.

P7754363

BLADE

CUTTING EDGE AND SHANK ASSEMBLY - bucket, Include: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

CUTTING EDGE - bucket

1шт.

7

P604291

SUPPORT

SHANK - thoot, center

1шт.

8

P1504047

SHANK, BUCKET TOOTH

SHANK - thoot, left-hand

1шт.

9

P1504048

SHANK, BUCKET TOOTH

SHANK - thoot, right-hand

1шт.

10

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

3шт.

11

REF

INSTRUCTION

TEETH AND SIDE CUTTING EDGES - bucket, see figure 9-112

1шт.

P1755563

BACKHOE BUCKET ASSEMBLY - excavator, 29-1/2" wide , Include: Ref. 1 - 10

1шт.

Available from wholegoods department

1шт.

1

NSS

NOT SOLD SEPARAT

BACKHOE BUCKET - excavator, 29-1/2" wide

1шт.

2

P50053

SHAFT LOCK

PIN - lock, bucket pin, backhoe, 29-1/2" wide

3шт.

3

P4724244

STIFFENER

CUTTING EDGE - side left-hand, backhoe bucket, 29-1/2" wide

1шт.

4

P4724245

STIFFENER

CUTTING EDGE - side right-hand, backhoe bucket, 29-1/2" wide

1шт.

5

P5428744

BUSHING

- bucket pin, at arm and link to bucket, backhoe, 29-1/2" wide

6шт.

P7754364

BLADE

CUTTING EDGE AND SHANK ASSEMBLY - bucket, backhoe, 29-1/2" wide, Include: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

CUTTING EDGE - bucket, backhoe, 29-1/2" wide

1шт.

7

P604291

SUPPORT

SHANK - thoot, center, backhoe bucket, 29-1/2" wide

2шт.

8

P1504047

SHANK, BUCKET TOOTH

SHANK - thoot, left-hand, backhoe bucket, 29-1/2" wide

1шт.

9

P1504048

SHANK, BUCKET TOOTH

SHANK - thoot, right-hand, backhoe bucket, 29-1/2" wide

1шт.

10

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin, backhoe bucket, 29-1/2" wide

3шт.

11

REF

INSTRUCTION

TEETH AND SIDE CUTTING EDGES - bucket, see figure 9-112, backhoe, 29-1/2" wide

1шт.
