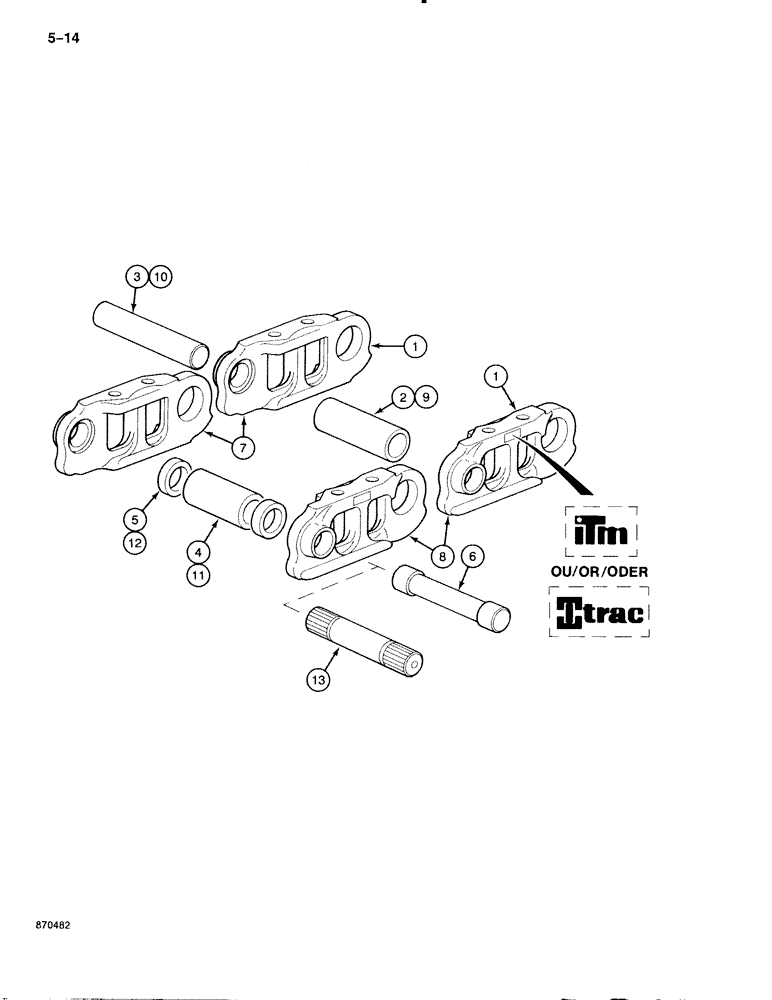

Запчасти Case 888 (5-014) - TRACK CHAIN, LINKS, AND PINS (11) - TRACKS/STEERING

P1642338

CHAIN (CE)

CHAIN ASSEMBLY - track, 47 links, ITM identification, Includes: Ref. 1 - 6

2шт.

1

P1642380

LINK

- track, set, includes one right-hand and one left-hand link

47шт.

2

P2229341

SPACER

BUSHING - standard pin

46шт.

3

P427387

PIN

- standard

46шт.

4

P2229340

SPACER

BUSHING - master pin

1шт.

5

P1145510

SPACER

- master pin

2шт.

6

P3627811

PIN

- master

1шт.

P1642338

CHAIN (CE)

CHAIN ASSEMBLY - track, 47 links, INTERTRAC identification, Includes: Ref. 7 - 13

2шт.

7

P1542358

LINK

- track, right-hand

47шт.

8

P1542355

LINK

- track, left-hand

47шт.

9

P829383

SPACER

BUSHING - standard pin

46шт.

10

P3627876

PIN

- standard

46шт.

11

P829382

SPACER

BUSHING - master pin

1шт.

12

P2229315

SPACER

- master pin

2шт.

13

P1627853

PIN

- master (Order P6427812, P1542358 and P1542355) (See SAT INFORMATIONS NO. 47)

1шт.

13

P6427812

PIN

- master, Start Serial: XXXXX

1шт.
